USED YAMATO DL-41

Manufacturer Information

Manufacturer: Yamato Scientific

Model: DL-41

Machine Type: Laboratory Spray Dryer

Serial Number: B0400003

Heating Method: Electrically heated

Voltage: 220V

Mounting: Mobile, mounted on casters

Description

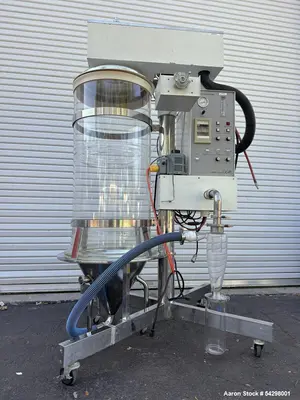

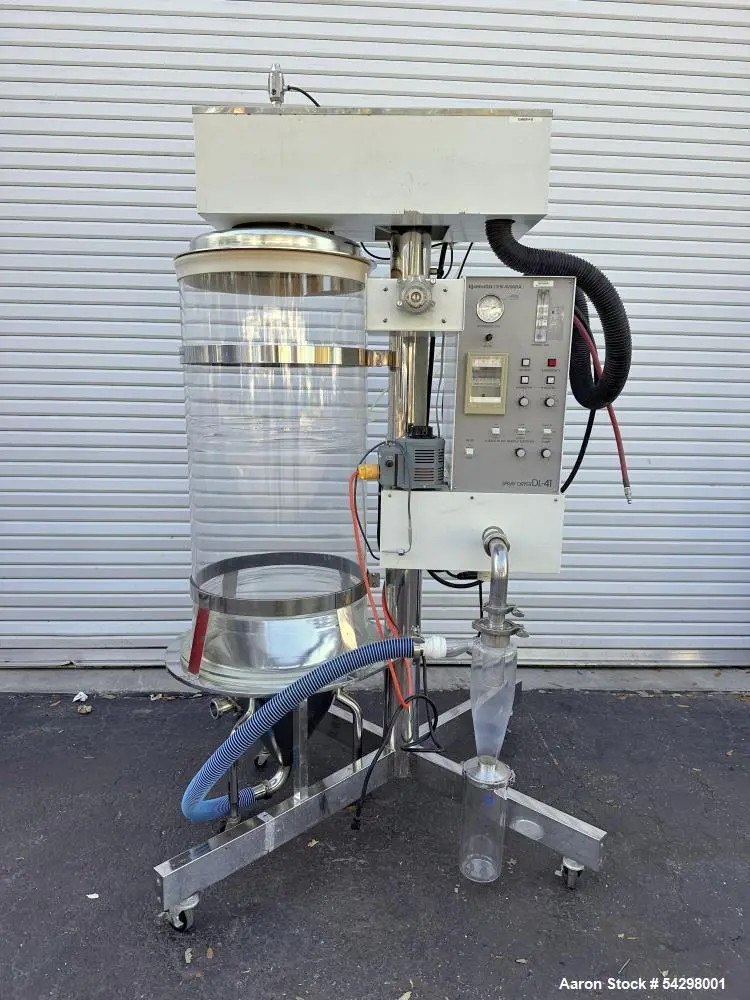

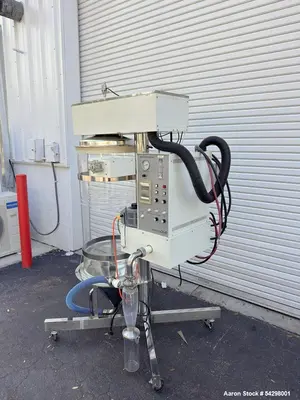

This used Yamato Spray Dryer, Model DL-41, is a compact, laboratory-scale spray drying system designed for producing fine granules in the 40–100 micron range. Ideal for R&D, pilot-scale testing, and small-batch production, the DL-41 offers precise control over temperature, airflow, and liquid feed rates.

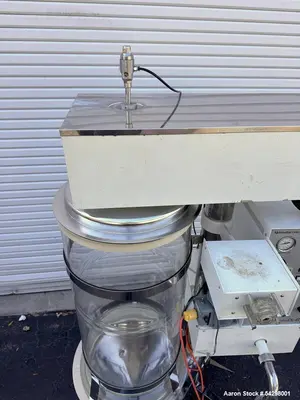

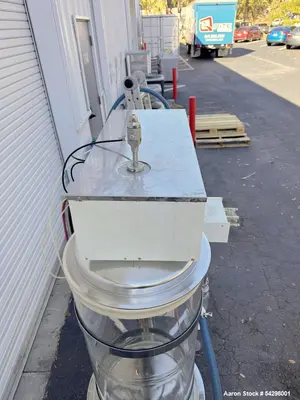

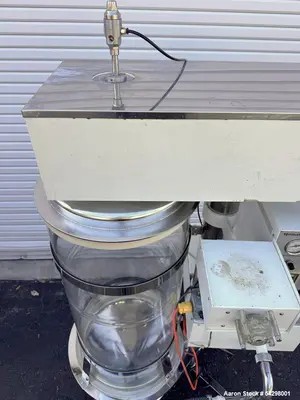

The unit features a large glass drying chamber (approx. 17-3/4" diameter x 39" high) for clear process visibility, a two-liquid nozzle atomization system with a 0.7 mm orifice, and an integrated cyclone separator with collection jar for efficient powder recovery. With a water evaporation capacity of up to approximately 3,000 ml/hour and an operating temperature range up to 300°C (572°F), this spray dryer is well suited for a wide range of materials and formulations.

Specifications

Manufacturer: Yamato Scientific

Model: DL-41

Particle Size Range: Approx. 40–100 µm

Water Evaporation Rate: Up to approx. 3,000 ml/hr

Liquid Feed Rate: Up to 80 ml/min

Operating Temperature Range: 40–300°C (104–572°F)

Drying Chamber: Glass

Chamber Dimensions: Approx. 17-3/4" diameter x 39" high

Heating: Electric

Electrical: 220V

Nozzle System: Two-liquid nozzle

Nozzle Orifice Diameter: 0.7 mm

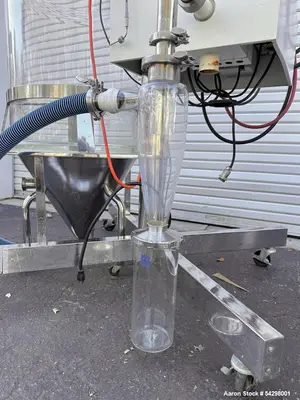

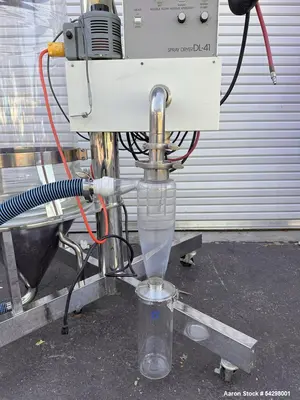

Cyclone Separator:

Cyclone Body: Approx. 3-1/2" diameter x 6" straight side

Collection Jar: Approx. 3-3/4" diameter x 9-3/4" straight side

Mobility: Mounted on casters

Applications

Laboratory spray drying

Product development and formulation

Pilot-scale powder production

Encapsulation studies

Drying of heat-sensitive materials

Small batch specialty powders

What Might This Be Used For

Converting liquid solutions or slurries into powders

Producing uniform fine granules for testing

Evaluating spray-dry behavior before scale-up

Encapsulation of active ingredients

Drying pharmaceutical or nutraceutical formulations

Research and academic laboratory work

Products This Machine Is Commonly Used For

Pharmaceutical compounds

Nutraceutical ingredients

Food flavorings

Enzymes and proteins

Chemical solutions

Pigments and dyes

Polymers

Ceramic slurries

Specialty chemicals

Biotech materials
