USED 2003 HYD-MECH S-20A

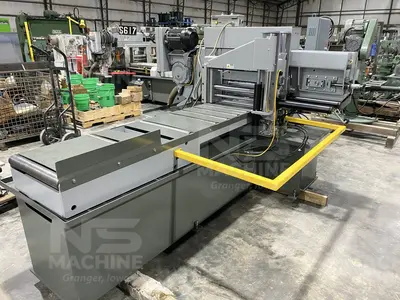

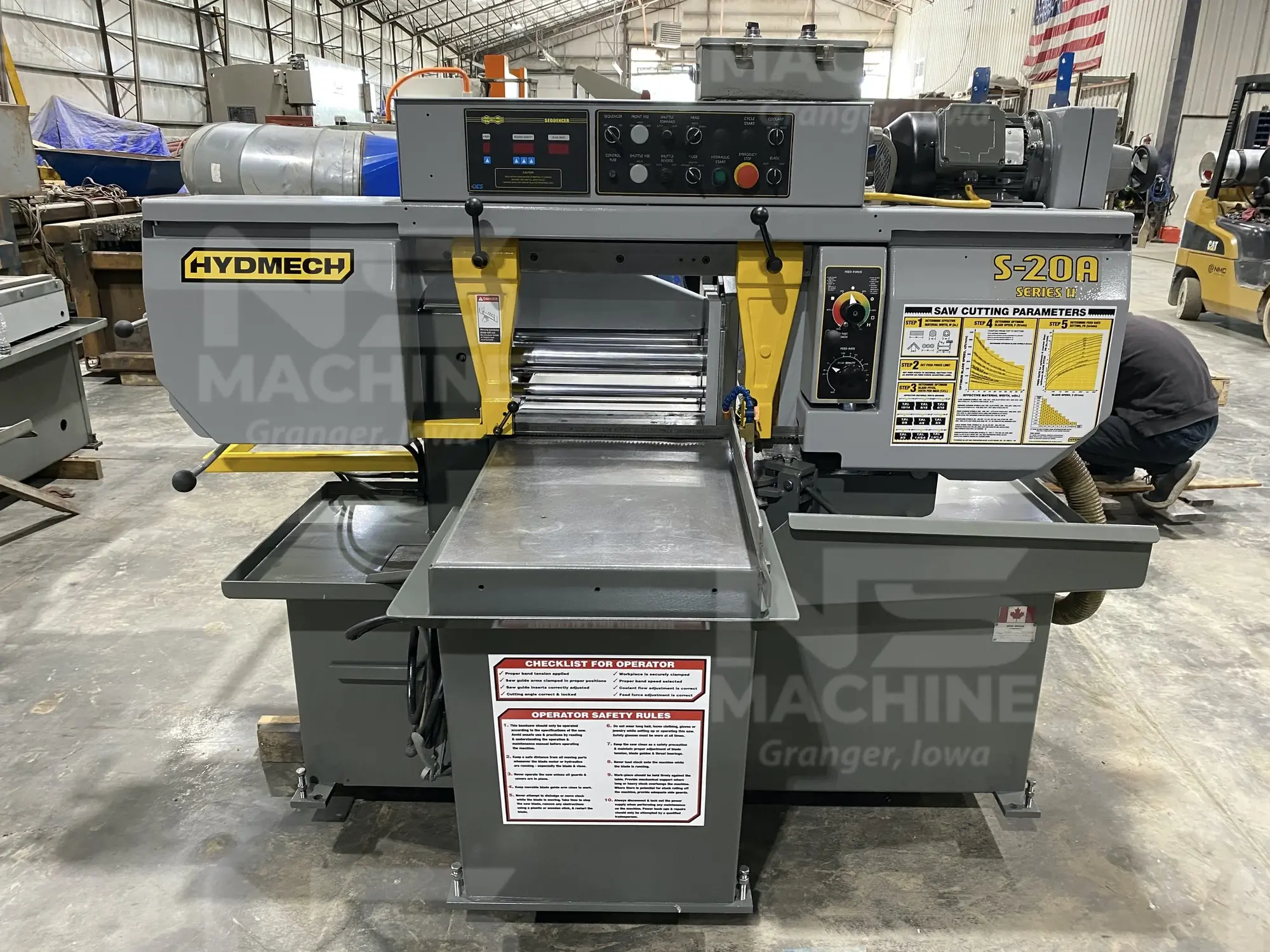

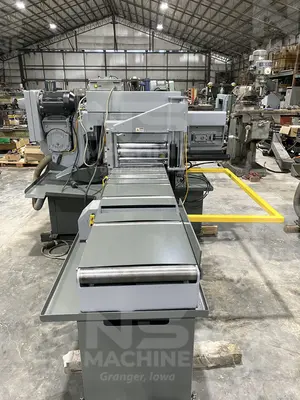

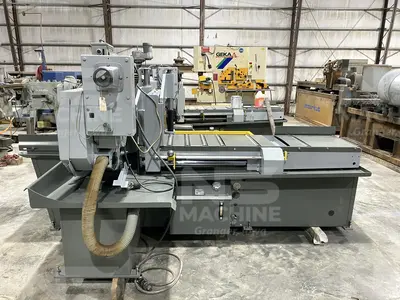

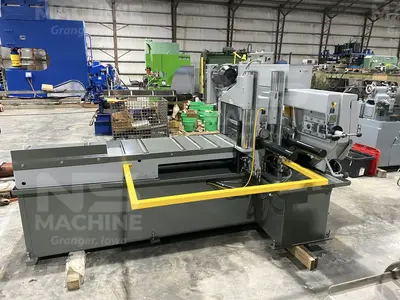

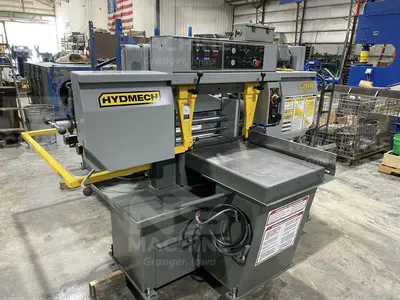

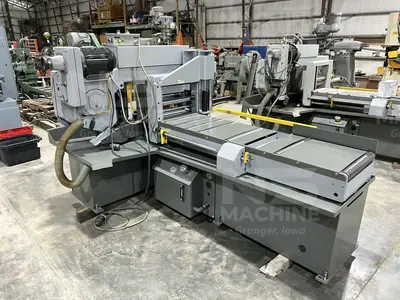

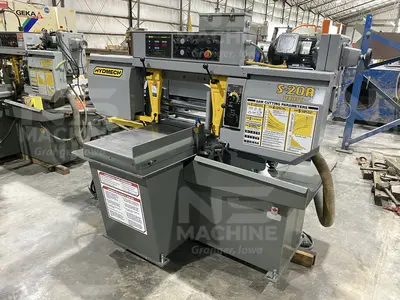

This Hyd-Mech S-20A Horizontal Bandsaw is equipped with overhead bundling and has a maximum capacity of 13” x 18” rectangles and 0-29” shuttle stroke.
For questions or to schedule an inspection of this Hyd-Mech S-20A Horizontal Bandsaw, please call 515-999-2999 or email your request to [email protected]. To request a quote, use the “Request Quote” button on this page.

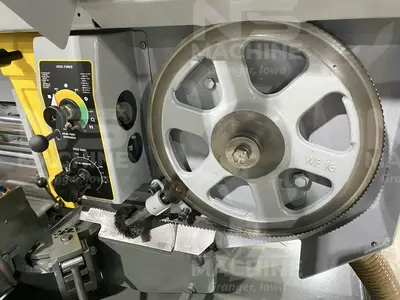

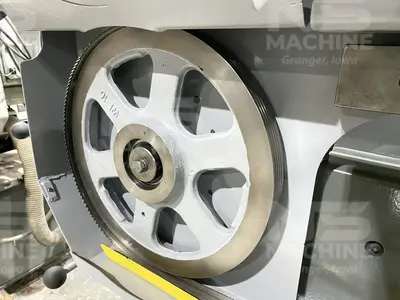

New Band Wheels

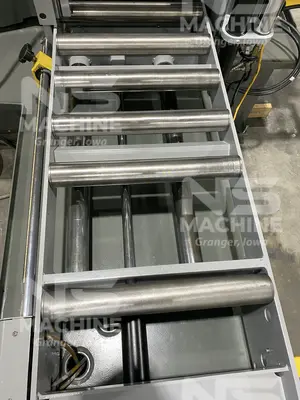

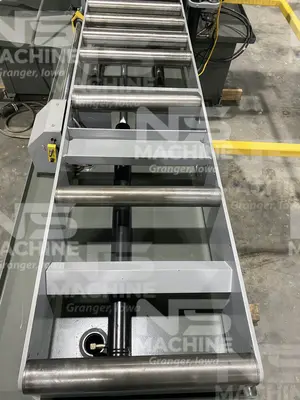

Overhead bundling
New Blade Brush
29" Shuttle Stroke
Cleaned, Painted & Cycle

Capacity, rectangular @ 90°: 13" x 18"
Capacity, rectangular @ 45°: 13" x 10-3/4"
Capacity, rectangular @ 30°: 13" x 7-3/4"
Capacity, rounds @ 90°: 13"
Capacity, rounds @ 45°: 12"
Capacity, rounds @ 30°: 8-1/2"
Blade Speed: 75-330 SFM
Blade Size: 1” x 14” 10”
Shuttle stroke: 0-29" single stroke
Work load: 5,000 lbs.
Table height: 31"
Coolant Tank Capacity: 12 US gal
Blade Drive: 5 HP
Volts: 480
Phase: 3
Cycles: 60
Approximate dimensions: 93” x 86” x 52” high
Approximate weight: 3,800 lbs.
