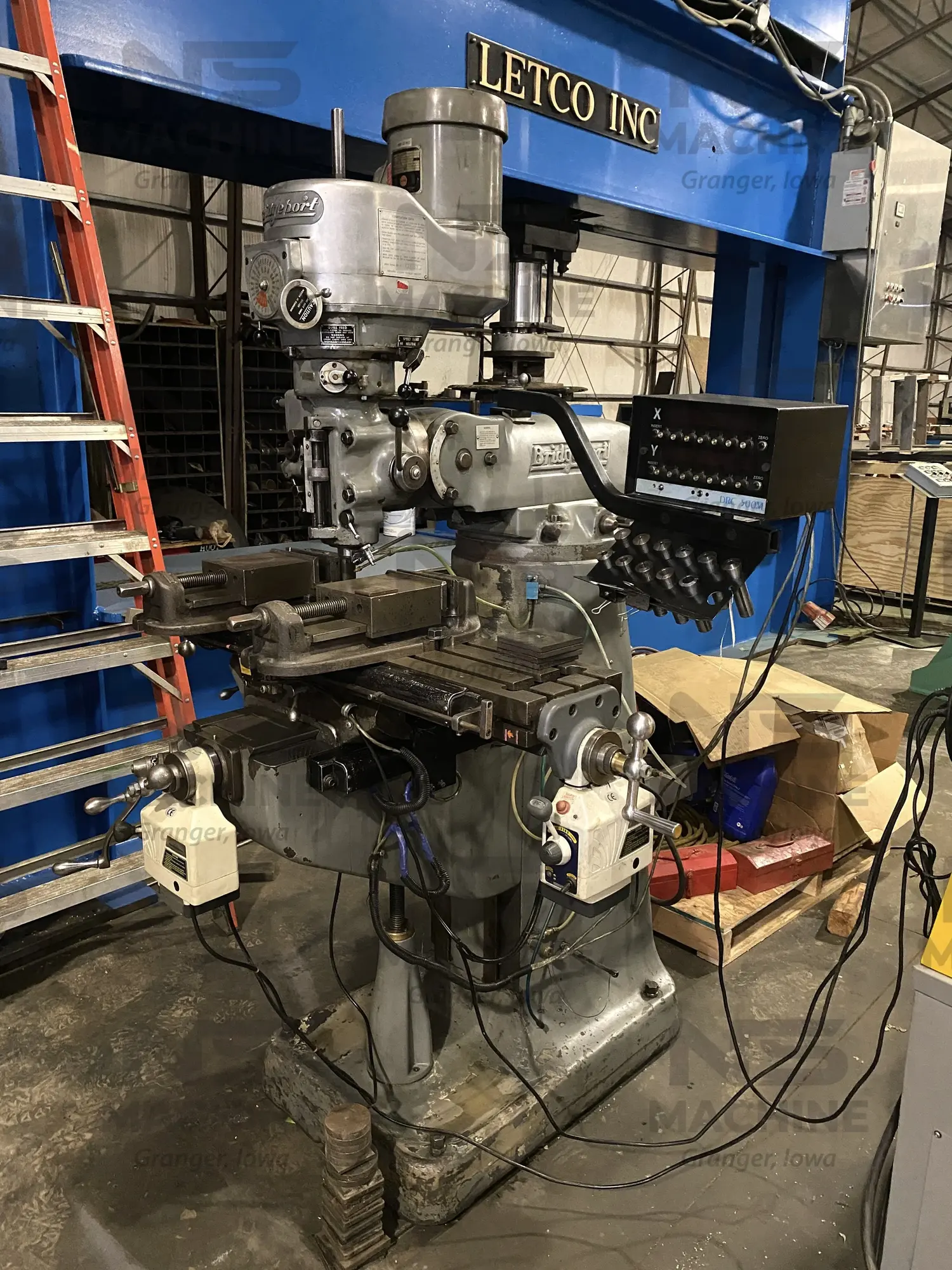

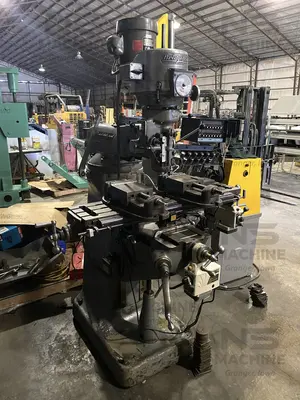

USED BRIDGEPORT SERIES I

This Bridgeport Series I vertical mill is equipped with a 9” x 42” table and comes with a DRO, power feeds, set of R-8 collets and a Bridgeport machine vise.
For questions or to schedule an inspection of this Bridgeport vertical mill, please call 515-999-2999 or email your request to [email protected]. To request a quote for this Bridgeport vertical mill, use the “Request Quote” button on this page.
Variable speed spindle
DRC 500M 2-axis digital readout
Power longitudinal table travel with rapid traverse
Power cross travel of saddle
Automatic lubrication system with rapid traverse
Set of R-8 collets
(1) Bridgeport machine vise
Kool Mist system

Table size — 9” x 42”
Spindle speeds — 60-4200 RPM (infinitely variable)
Spindle taper — R-8
Longitudinal travel — 24”
Cross travel — 13”
Knee travel — 14”
Quill travel — 5”
Table rapid traverse feed rate — 0.75 to 35 IPM
Head tilt, front to back — +/- 45 degrees
Head tilt, right to left — +/- 90 degrees
Motor — 1.5 HP / 1730 RPM
Volts — 220/440
Phase — 3
Cycles — 60
Amps — 4.8/2.4
Approximate overall dimensions — 63"LR x 63"FB x 82"H
Approximate weight — 2,750 lbs.
