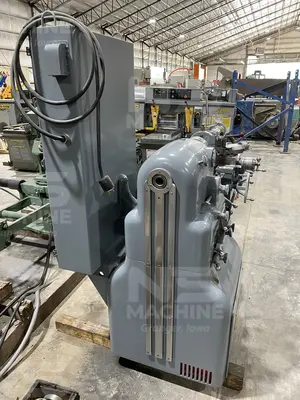

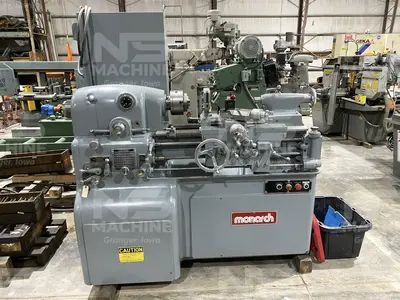

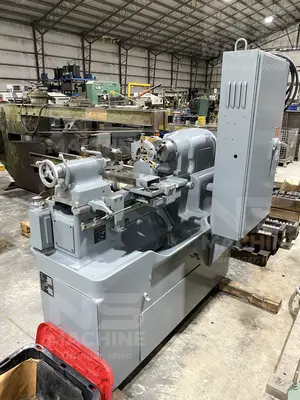

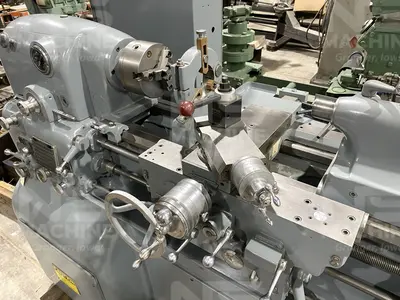

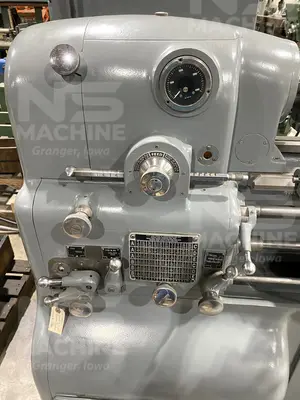

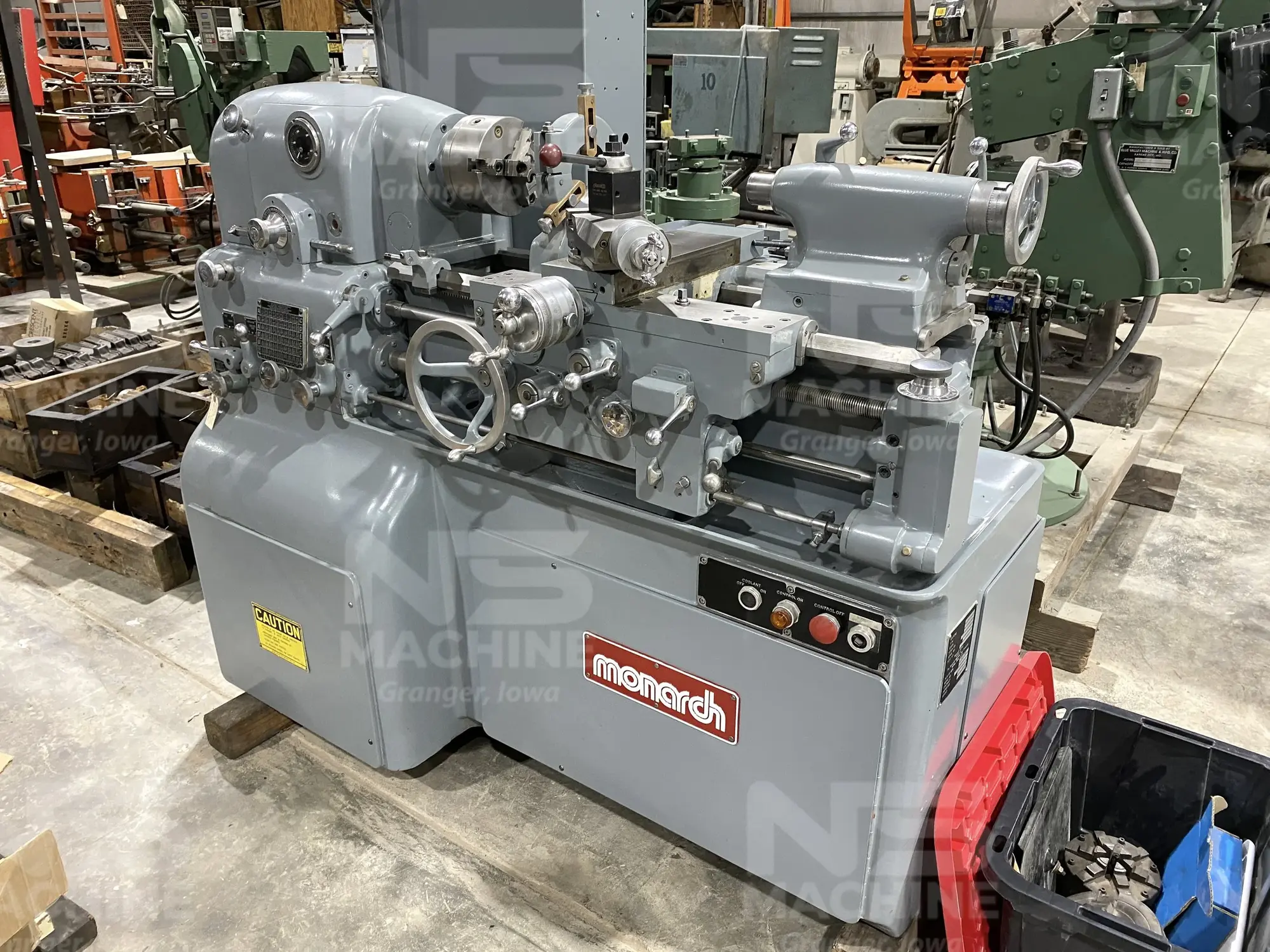

These 1980 Monarch 10EE Precision Toolroom Lathe is in like new condition. It is equipped with english-metric threading, taper attachment, 3-jaw chuck, 4-jaw chuck, 6-jaw chuck, faceplate and micro carriage stop.
For questions or to schedule an inspection of this Monarch 10EE Precision Toolroom Lathe, please call 515-999-2999 or email your request to [email protected]. To request a quote for this Monarch 10EE Precision Toolroom Lathe, use the “Request Quote” button on this page.
In Like New Condition
Taper attachment

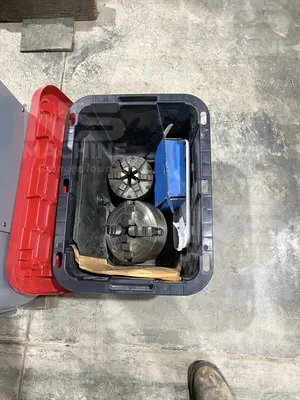

3-jaw chuck
4 jaw chuck
6-jaw chuck
Faceplate
English & metric threading
Microcarriage stop
Thread dial
Swing over bedways - 12.5"
Swing over cross slide - 7-1/4"
Distance between centers - 20"
Spindle speed - 25 to 4000 RPM
Hole through spindle - 1-13/32"
Center morse taper - #2
Range of inch threads - 3 to 184
Range of metric threads - 0.359 to 11.5 mm
Range of inch feeds - 16.1 to 0.5
Range of metric feeds -n0.406 to 0.013 mm
Number of thread changes(english/metric) - 60
Number of feed changes(english/metric) - 50
Bed width - 10.5"
Leadscrew diameter - 1"
Leadscrew pitch - 8 TPI
Tailstock spindle diameter - 1.75"
Tailstock spindle travel - 5.75"
Tailstock spindle taper - Morse taper #2
Volts - 208
Phase - 3
Cycles - 60
Full load amps - 27
Approximate dimensions - 62" x 44" x 70" high
Approximate weight - 3,450 lbs.
Shipping height on 3" blocks - 73"
