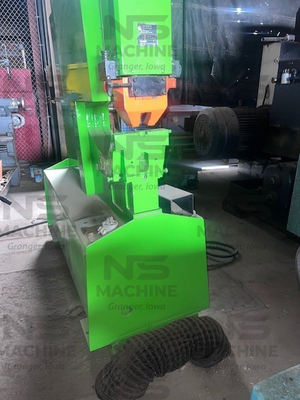

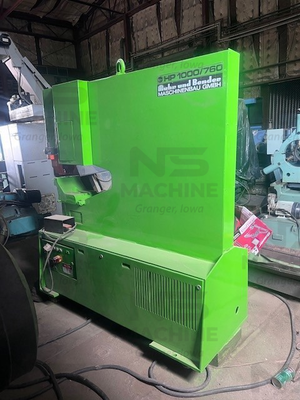

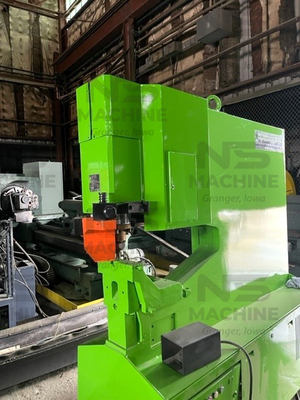

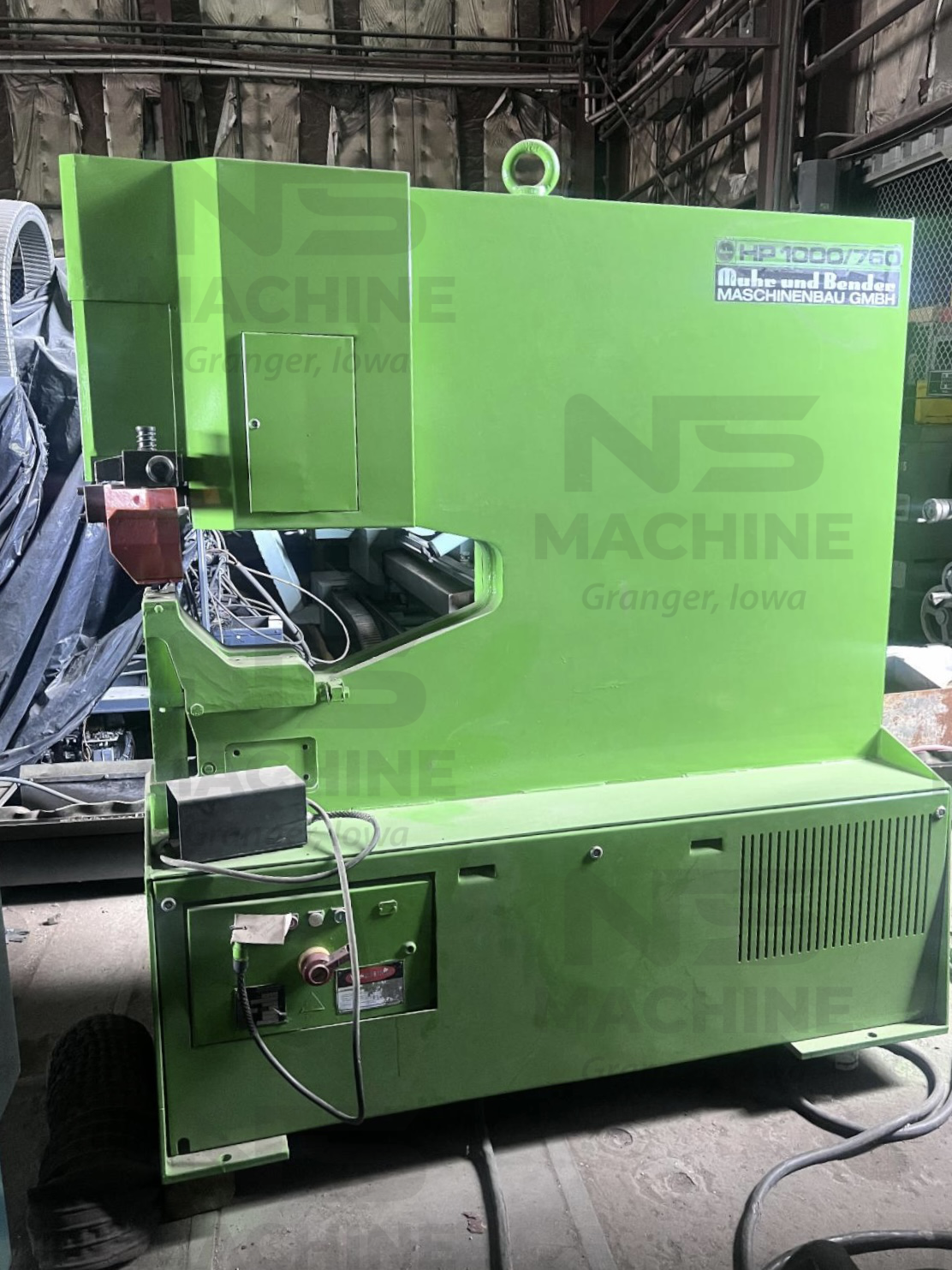

USED MUBEA HP 1000/760

This Mubea punch press is a model HP 1000/760. With 110 tons of power it has a capacity for punching holes up to 1-3/8” diameter through 15/16” mild steel. The 30” throat depth accommodates larger work pieces.
For questions or to schedule an inspection of this 110 Ton Mubea Punch Press, please call 515-999-2999 or email your request to [email protected]. To request a quote for this 110 Ton Mubea Punch Press, use the “Request Quote” button on this page.
Foot pedal control

Tonnage — 110
Capacity — 1-3/8” through 15/16”
Throat depth - 30”
Channels in flange —4-15”
Beams in flange — 4-15”
Channels in web — 4-15”
Beams in web — 4-24”
Working height — 44-5/8”
Stroke, infinitely variable — 0 to 2-3/4”
Number of strokes at full stroke — 12 per minute
Number of strokes at 3/4" stroke length — 42 per minute
Oil capacity — 24 gallons
Motor — 11 HP
Approximate dimensions — 76" x 30" x 78" high
Approximate weight — 7,940 lbs.
