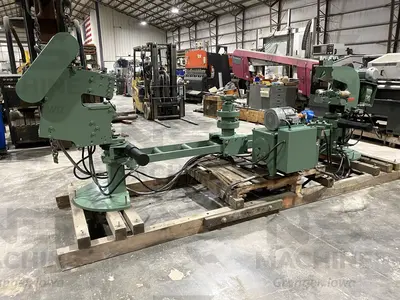

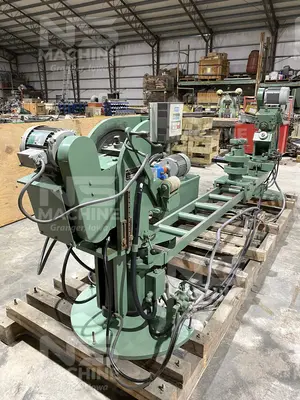

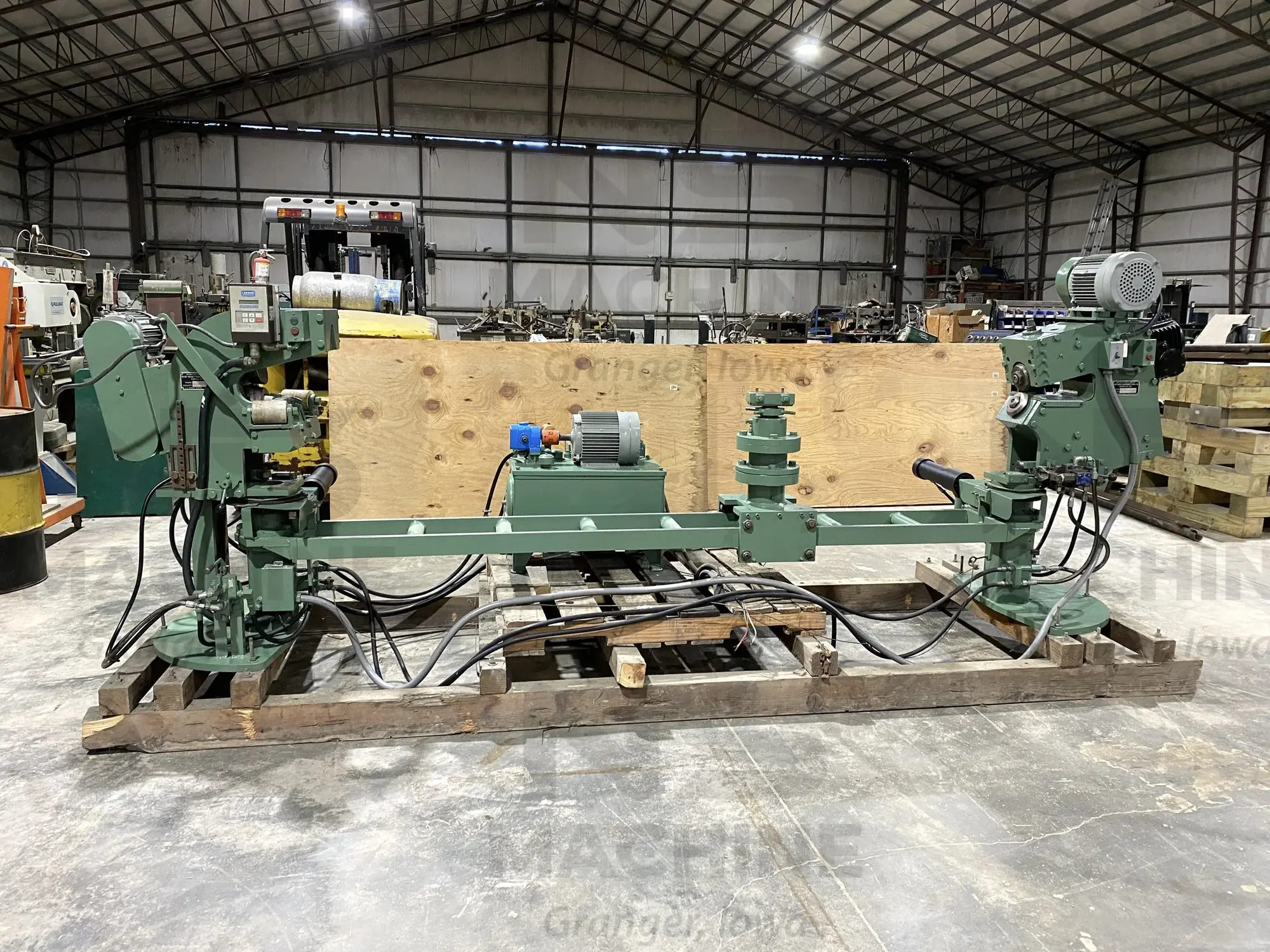

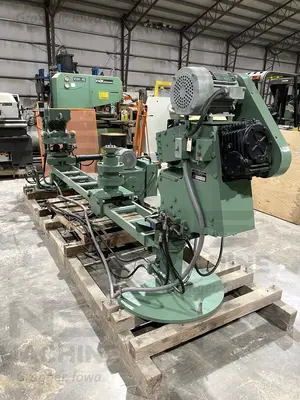

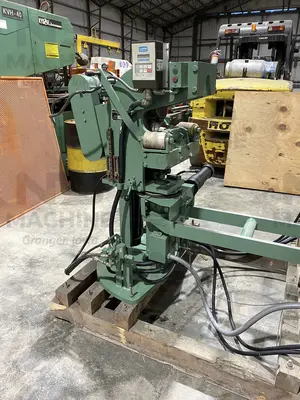

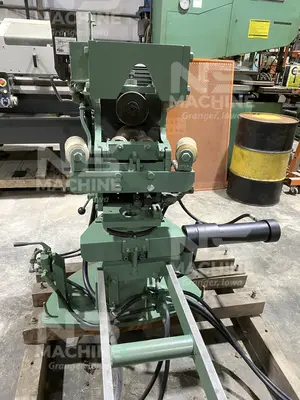

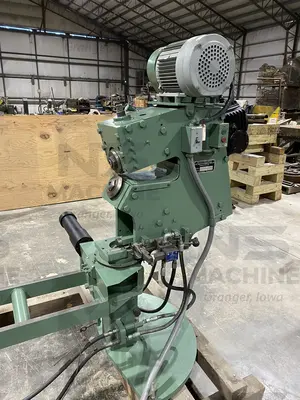

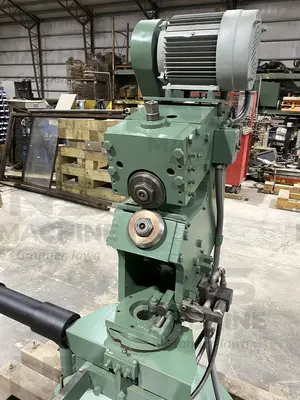

USED 1979 BLUE VALLEY 72

This Blue Valley #72 Elliptical Flanger & Shear has a maximum thickness capacity of 3/16” and is equipped with a variable speed control.
For questions or to schedule an inspection of this Blue Valley #72 Elliptical Flanger & Shear, please call 515-999-2999 or email your request to [email protected]. To request a quote for this Blue Valley #72 Elliptical Flanger & Shear, use the “Request Quote” button on this page.

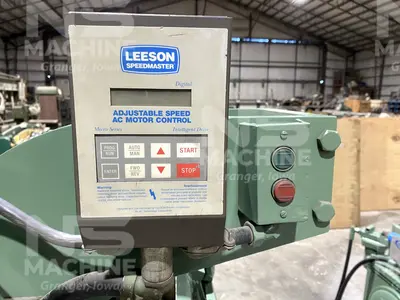

Variable speed control

Maximum thickness, mild steel — 3/16”
Maximum thickness, stainless steel — 10 gauge
Maximum thickness, aluminum — 9/32”
Minimum thickness — 16 gauge
Maximum diameter — 94”
Standard knuckle radius sizes — 3/8”, 3/4”
Minimum knuckle radius — 3/16”
Maximum knuckle radius — 1”
Flange head motor - 1 HP
Shear motor — 2 HP

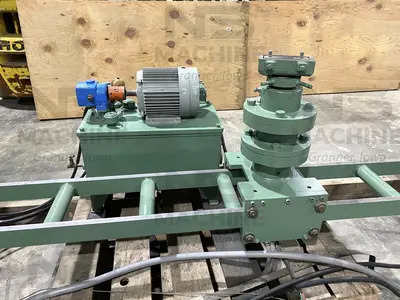

Hydraulic pump motor — 3 HP
Approximate dimensions — 14’ x 4’ x 70” high
Approximate weight — 3,400 lbs.
