USED 2013 SAHINLER SDK-8
Overview

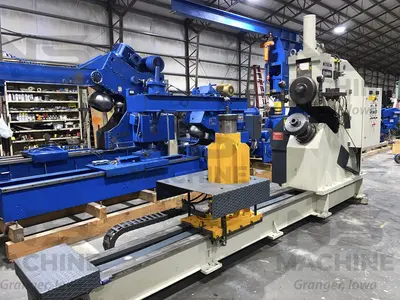

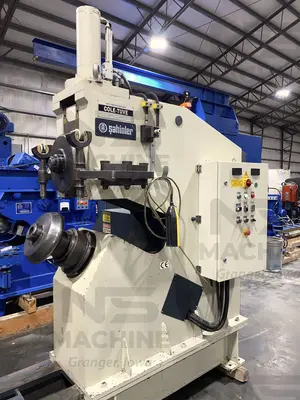

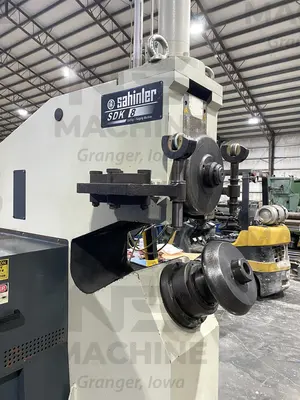

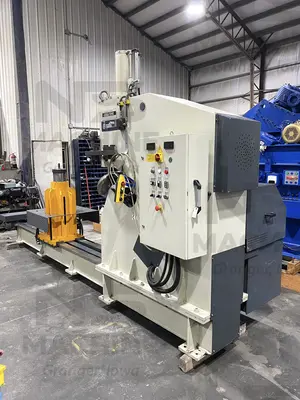

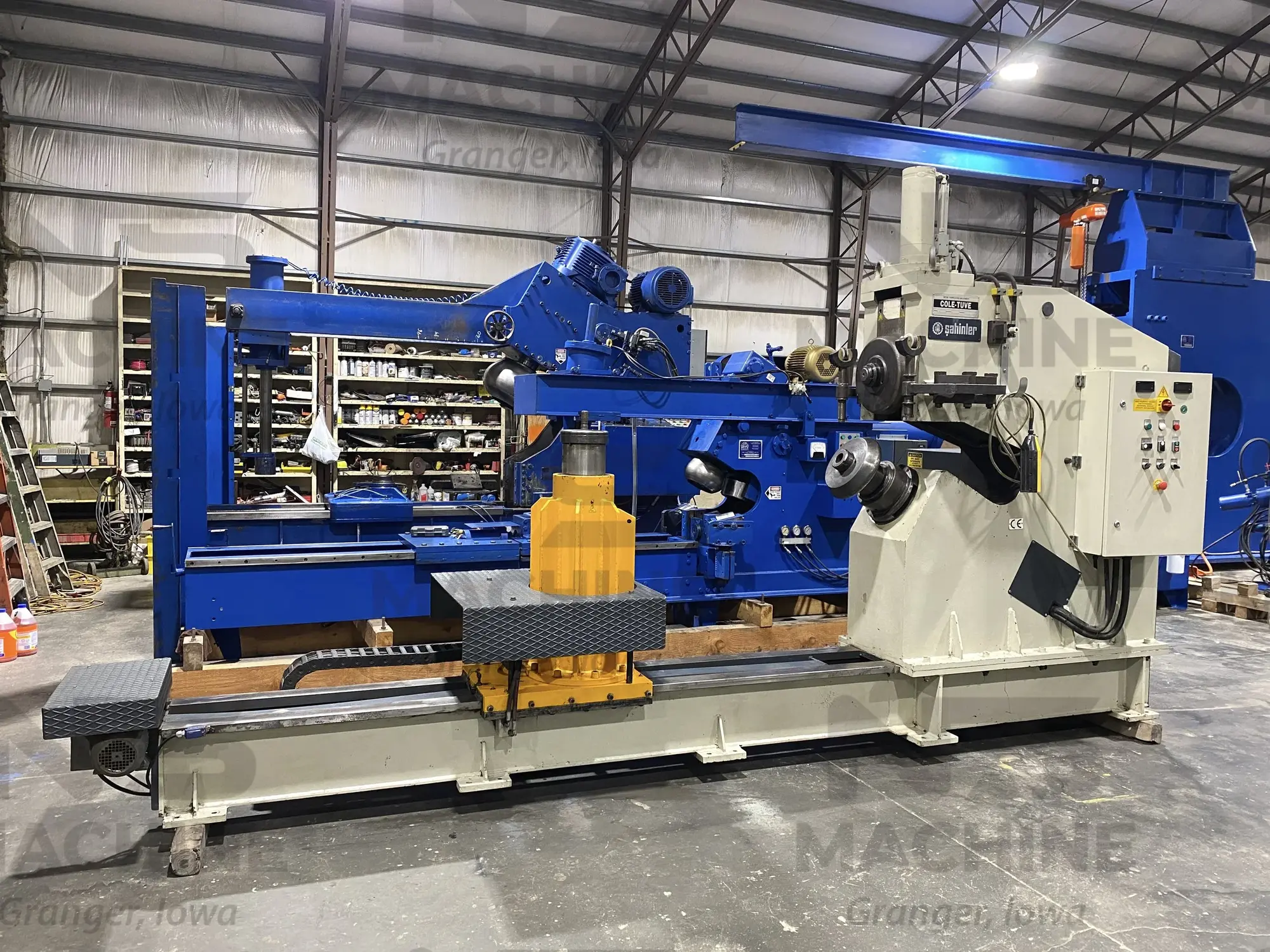

This 2014 Sahinler flanger is equipped with a power carrier and digital readouts and is capable of flanging flat tank heads up to 188” in diameter. Maximum thickness capacity is 5/16” mild steel and 3/16” stainless steel.
For questions or to schedule an inspection of this 5/16” Sahinler SDK-8 Flanger, please call 515-999-2999 or email your request to [email protected]. To request a quote for this 5/16” Sahinler SDK-8 Flanger, use the “Request Quote” button on this page.

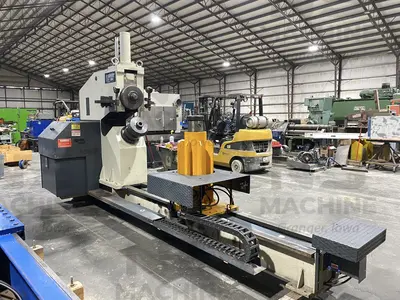

Power Carrier

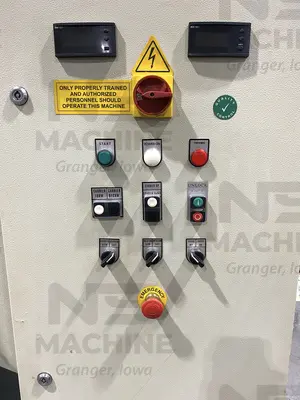

Digital readout
Specs
Max. sheet thickness, mild steel — 5/16" (8 mm)
Max. thickness, stainless steel — 3/16" (5 mm)
Maximum radius of flanging tools — 3.94" (100) mm
Maximum head diameter — 188'" (4775 mm)
Minimum head diameter — 28-3/8" (720 mm)
Maximum flanging length at 100mm radius —5.91" (150mm)
Maximum flanging length at 25 mm radius — 7.48" (190 mm)
Two speed rotation — 1-1/2' and 3' per minute
Motor —17 HP (12.7 KW)
Volts — 440
Phase - 3
Cycles — 60
Amps —22.4
Approximate dimensions — 188" x 55" x 82" high
Approximate weight — 9,680 lbs (4391 kg)
