| Table-W | 9" | 228.6 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 37" | 939.8 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 7' x 6.5' x 8' | 7' x 6.5' x 8' |
| Weight | 2400lbs | 2400lbs |

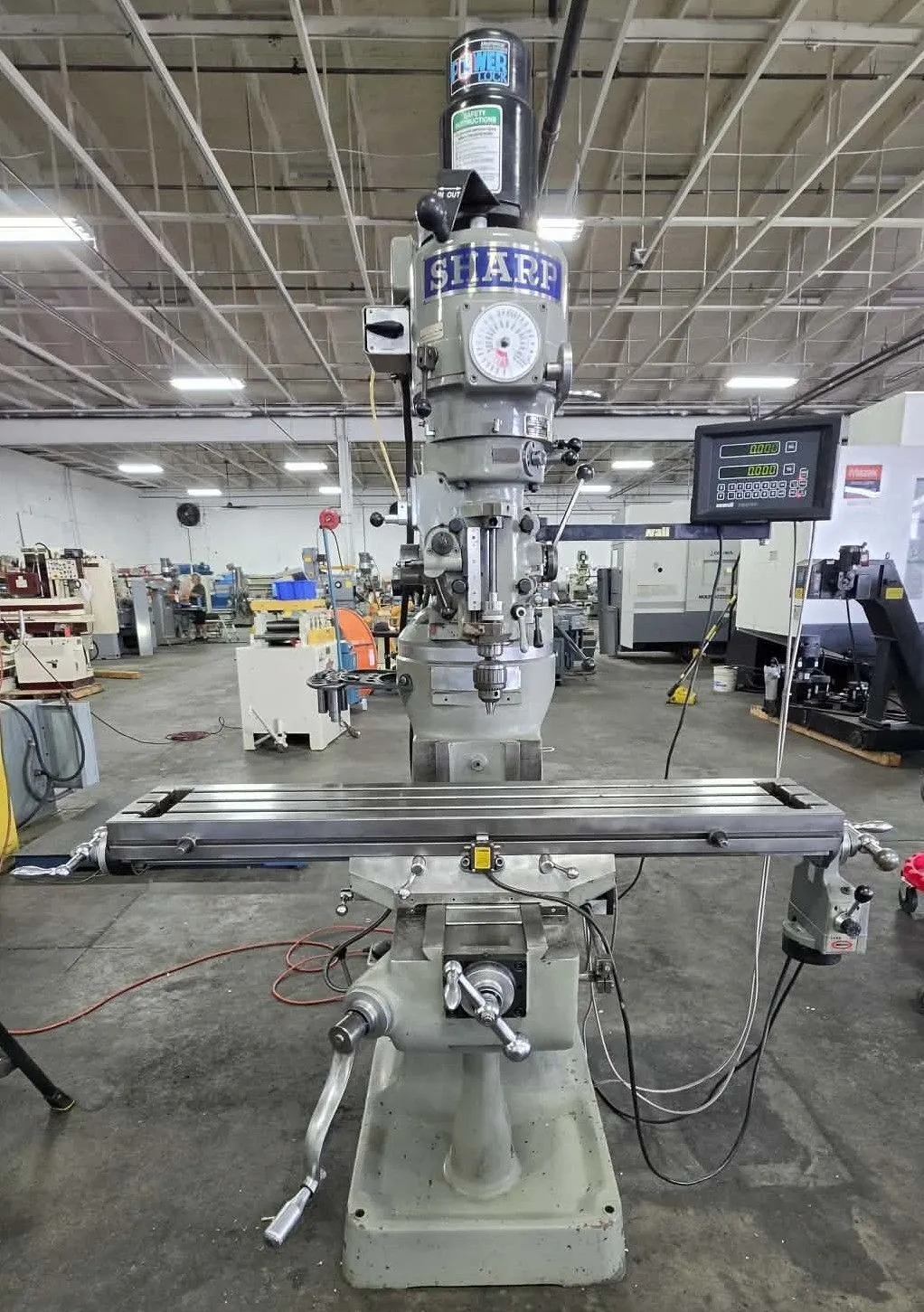

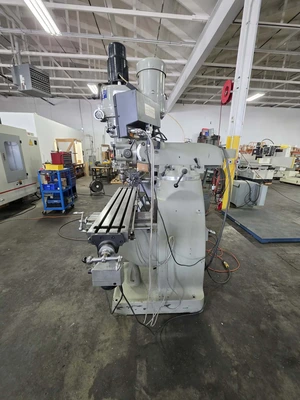

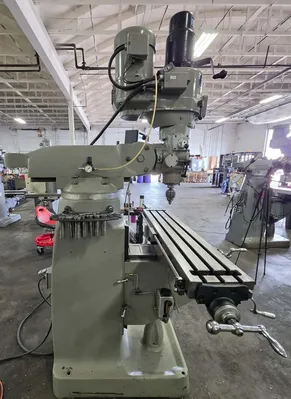

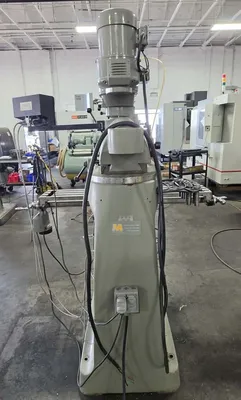

Sharp LMV-50 Vertical Mill

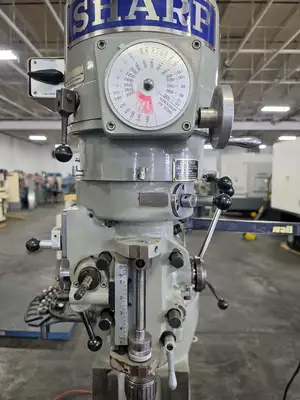

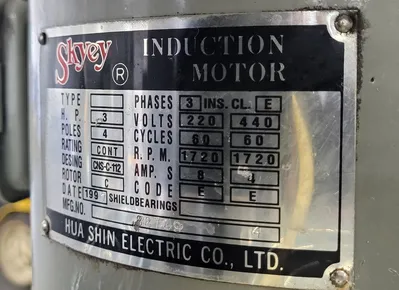

3HP Head
60- 4500 RPM
Kurt Power Draw Bar
Newall Topaz Digital Read Out

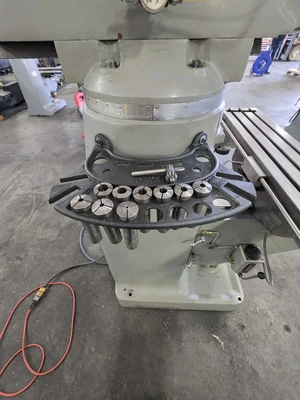

R8 Spindle w/Collets
Bijur One Shot Lube

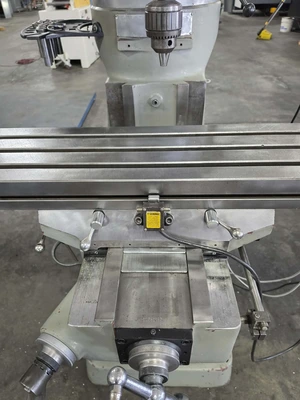

9" x 50" Table
Dovetail Slide Ways

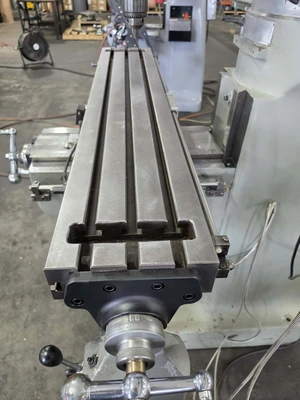

T Slot Table #/Size= 3, 5/8"
Table Travel X Axis: 37"
Table Travel Y Axis: 12"
Ram Travel: 12"
Quill Travel (Z Axis): 5"
Quill Feed (IPR): .00015", .003", .006"
Knee Travel: 16"

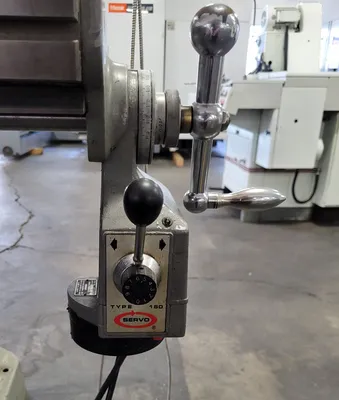

Servo X Axis Power Feed
Spindle to Column Min/Max: 2.125"- 18"
Head Swivel: 360 Degrees
Head Tilt Right to Left: 45 Degrees
Head Tilt Up and Down: 45 Degrees

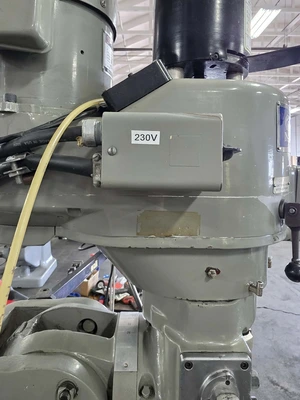

220-440 V 3 Phase
Dimensions:
7' x 6.5' x 8'
2400lbs
