| Swing | 15" | 381 mm |
| Centers | 72" | 1,828.8 mm |
| Spindle Bore | 2.2656" | 57.546 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 45 RPM | 45 RPM |
| Swing Over Cross Slide | 9.5" | 241.3 mm |

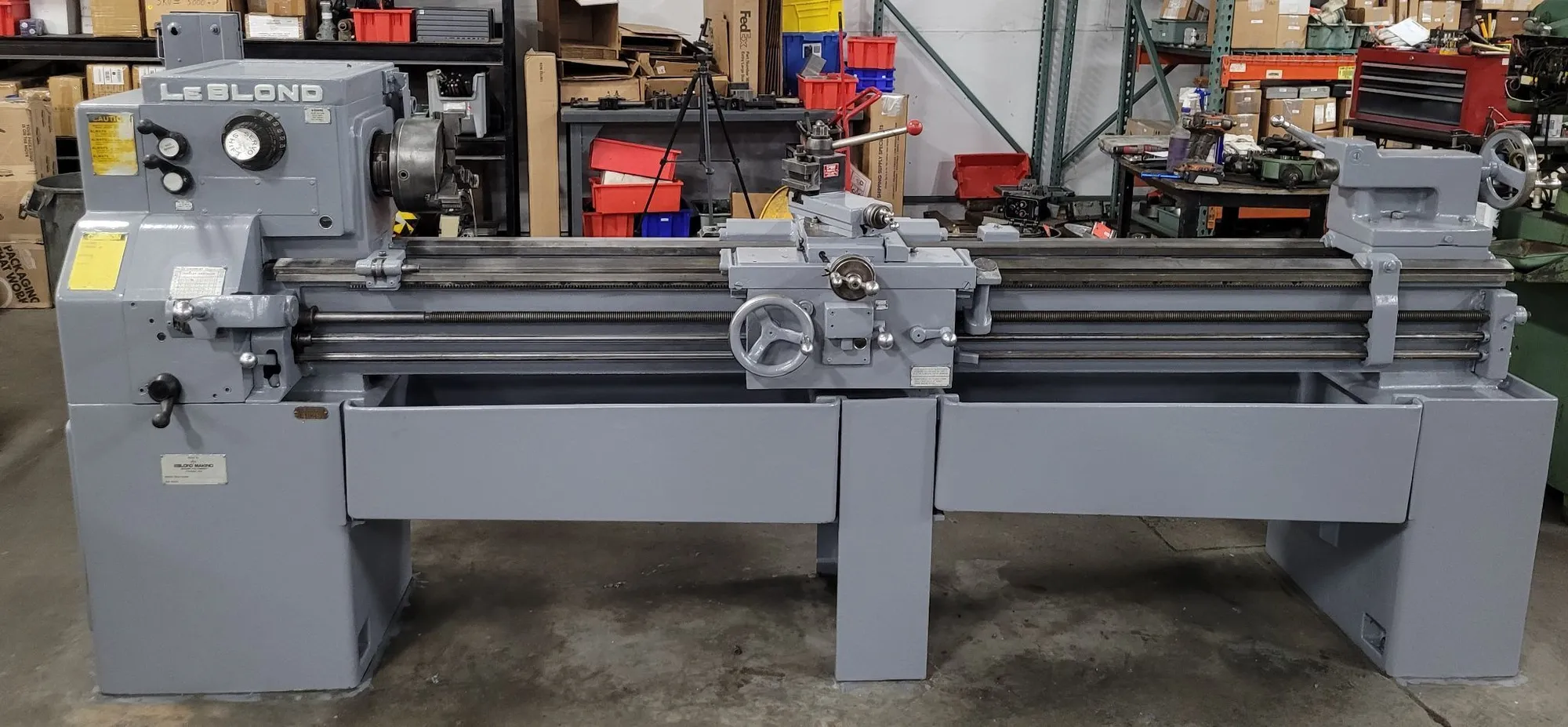

15" x 72" LeBlond Regal 15 Engine Lathe w/Taper
Taper Attachment
Swing Over Bed: ~15.5 inches
Distance Between Centers: ~72 inches
Spindle Bore: ~2.125" - 2.2656" (approx. 2-1/8" to 2-1/4")
Spindle Speeds: 12 speeds, often 45 - 1200 RPM
Spindle Motor:7.5 HP
Feed Rates: Numerous (e.g., 48), range from ~0.0018 - 0.104 IPR
Threads per Inch (TPI): Wide range, e.g., 4 - 224 TPI
Tailstock Taper: #3MT
Weight: 3,500 lbs
460V 3 Phase
