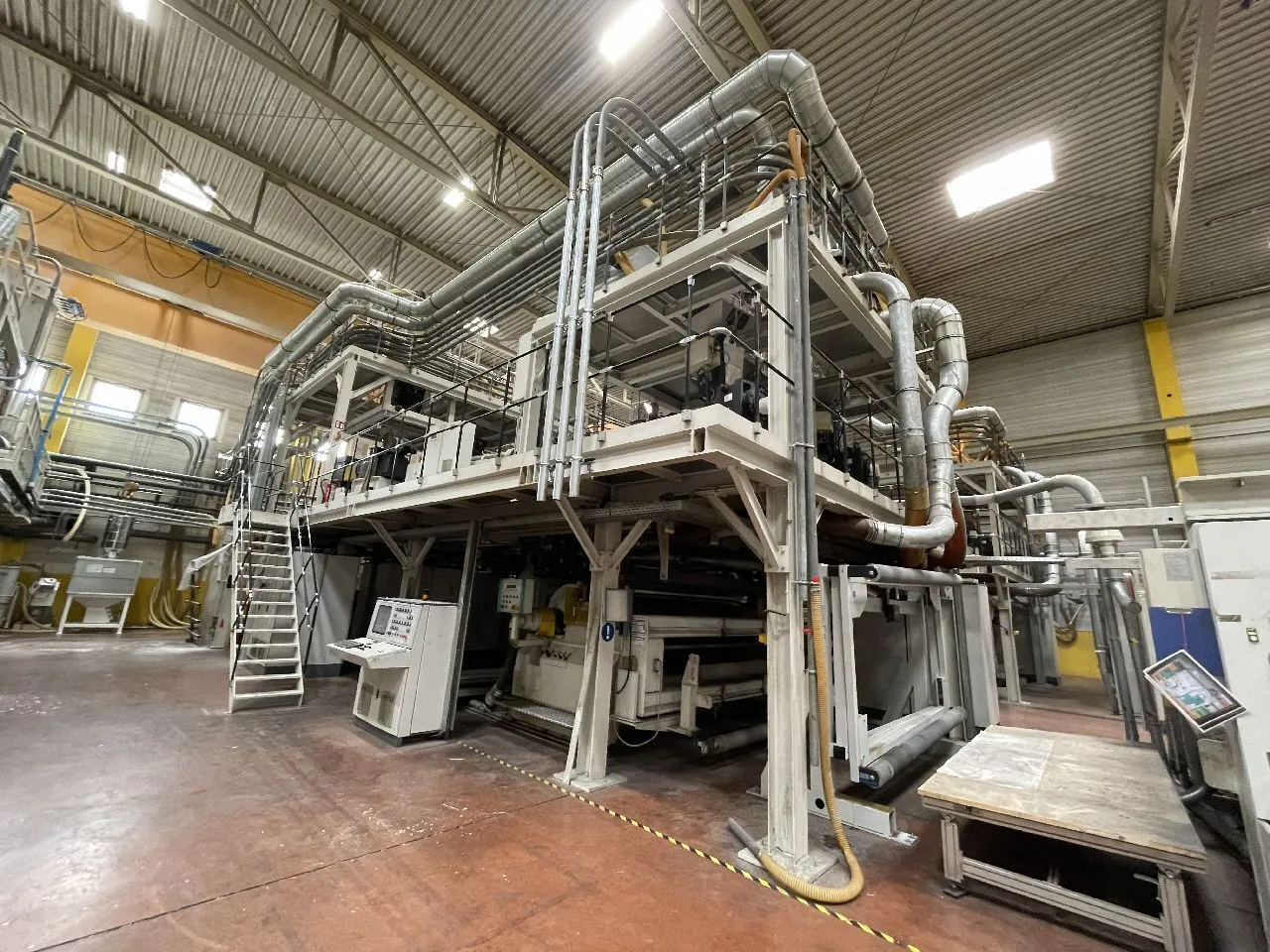

USED 2006 SML 2.5m 5 layer cast stretch film extrusion line

2006 SML 2.5m 5-layer cast stretch film extrusion line. Featuring a recent control revamp, speeds up to 550 m/min, and a max output of 1,890 kg/h on 23-micron film. Regrinder and EREMA recycling units included

Film extrusion lines - Cast film - CA260
Description of the Machine and Accessories
Manufacturer: SML
Model: CAST COEX 5
Year: 2006
Number of layers: 5
Overhaul/renovation: yes, recent revamp to part of controls
Film structure: ABCDE
Material: Stretch film LLDPE
Film width (mm): 2500
Speed (m/min): Mech speed 600 mpm- net speed at rewinder 550 mpm
Output (Kg/h): MAx net film out put 1,890 kg/hour on 23 micron film. Lower outputs on thinner films.

Extruder 1 Layer ref: : A
Screw diam 1: 90mm
Description 1: Gravimetric dosing units Doteco 2Comp.

Extruder 2 Layer ref: : B
Screw diam 2: 120mm
Description 2: Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen
changer

Extruder 3 Layer ref: : C
Screw diam 3: 120mm
Description 3: Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen
changer

Extruder 4 Layer ref: : D
Screw diam 4: 120mm
Description 4: Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen
changer

Extruder 5 Layer ref: : E
Screw diam 5: 90mm
Description 5: Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen
changer

Extruder 6 layer ref: edge encapsulation
screw diameter: 45mm

Head description: Automatic Die head with Internal deckling, Eltex edge pinning,
Die and Feedblock by Cloeren
Die width (mm): Gross width 3100 - 2100 mm

Chill roll unit: Double chill roller

Thickness control system: Yes

Web guide: Oscillating frame

Rewinder description: Turret rewinder for machine reels and jumbo

Additional Information:
Regrinder for edges and Erema Re-pelletizer
3 Kongskilde exhaust for edge trims
EREMA recycling regranulation unit
Additional extruder. 8 for recycled material supplied by Erema unit .
Provision for edge encapsulation .
Complete end of the line rolls handling and palletizing

This equipment was last in operation in January 2025
