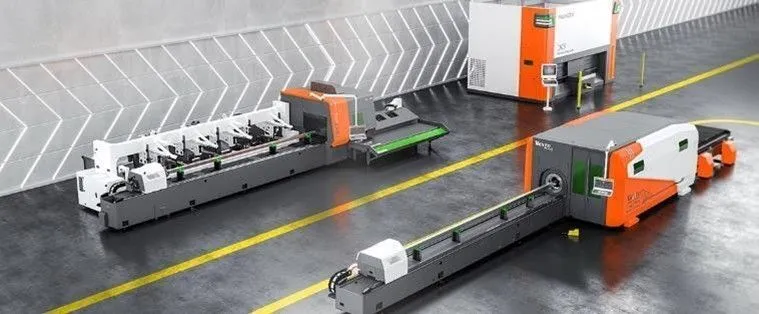

NEW NUKON NK-T125

Specifications (subject to buyer verification):
Maximum Cutting Capacity:
Mild Steel - 1kW: .19", 2kW: .32", 3kW: .39"
Stainless Steel - 1kW: .11", 2kW: .23", 3kW: .32"
Aluminum - 1kW: .07", 2kW: .19", 3kW: .32"
Brass - 1kW: .06", 2kW: .11", 3kW: .19"
Copper - 1kW: .06", 2kW: .11", 3kW: .19"
Power Consumption (Hour): 1kW: 24 kVa, 2kW: 28 kVa, 3kW: 32 kVa
Max Outer Circle Diameter: Ø180 mm (Ø226 mm*)
Max Pipe Diameter: Ø180 mm (Ø226 mm*)
Max Square Side Length: 125 mm x 125 mm
Max Rectangular Side Length: 150mm x 100mm (FOR Ø180)
*200mm x 100mm (FOR Ø226)
Feed Length 6500 mm
Maximum Loading Weight: 30 kg/m
Remnant: 185 mm
Control Panel: 21” Multi-Touch Screen
Machine Weight: 21.500kg
Material Type: Pipe, square profile, rectangular profile, oval profile
Minimum Loading Length: 3000mm
Maximum Loading Length: 6300mm
Minimum Cross Section: Pipe: Ø15, Profile: 15mm x 15mm
Maximum Cross Section: Pipe: Ø100, Profile: 100mm x 100mm
Maximum Pipe Weight: 30kg/m

Equipped with (subject to buyer verification):

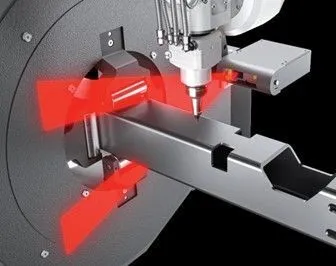

Cutting Head: NLCH-L
All components, to control software are of the same manufacturer “Beckhoff”
Nukon HMI Software
software Lantek Expert Cut CAD / CAM

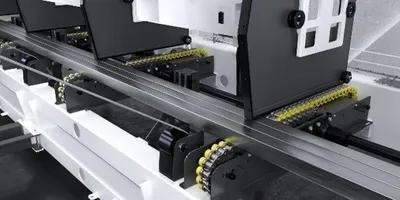

Semi- Automatic Loading System
Semi-Automatic Unloading System
Raycus Fiber Laser Technologies

OPTIONAL EQUIPMENT:
Bevel Cutting
IoT / Industry 4.0
Weld Seam Detection
Automatic centering
Unloading belt conveyor
Filter Exhaust System
IPG Photonics
