14' Overall X 12, Between Housings, 200 Ton
| size | 200 Ton | 200 Ton |
| Tonnage | 200 T | 181.437 t |
| Type | HYD | HYD |
| Overall Length | 14' | 4.3 m |
| Between Housings | 122" | 3.1 m |
| Stroke | 6.75" | 171.45 mm |
| # Axis | 2 | 2 |
| Dimensions | 187” (15’-7”) wide x 57.5” deep x 100” Tall. | 187” (15’-7”) wide x 57.5” deep x 100” Tall. |
| Weight | 19700 | 19700 |

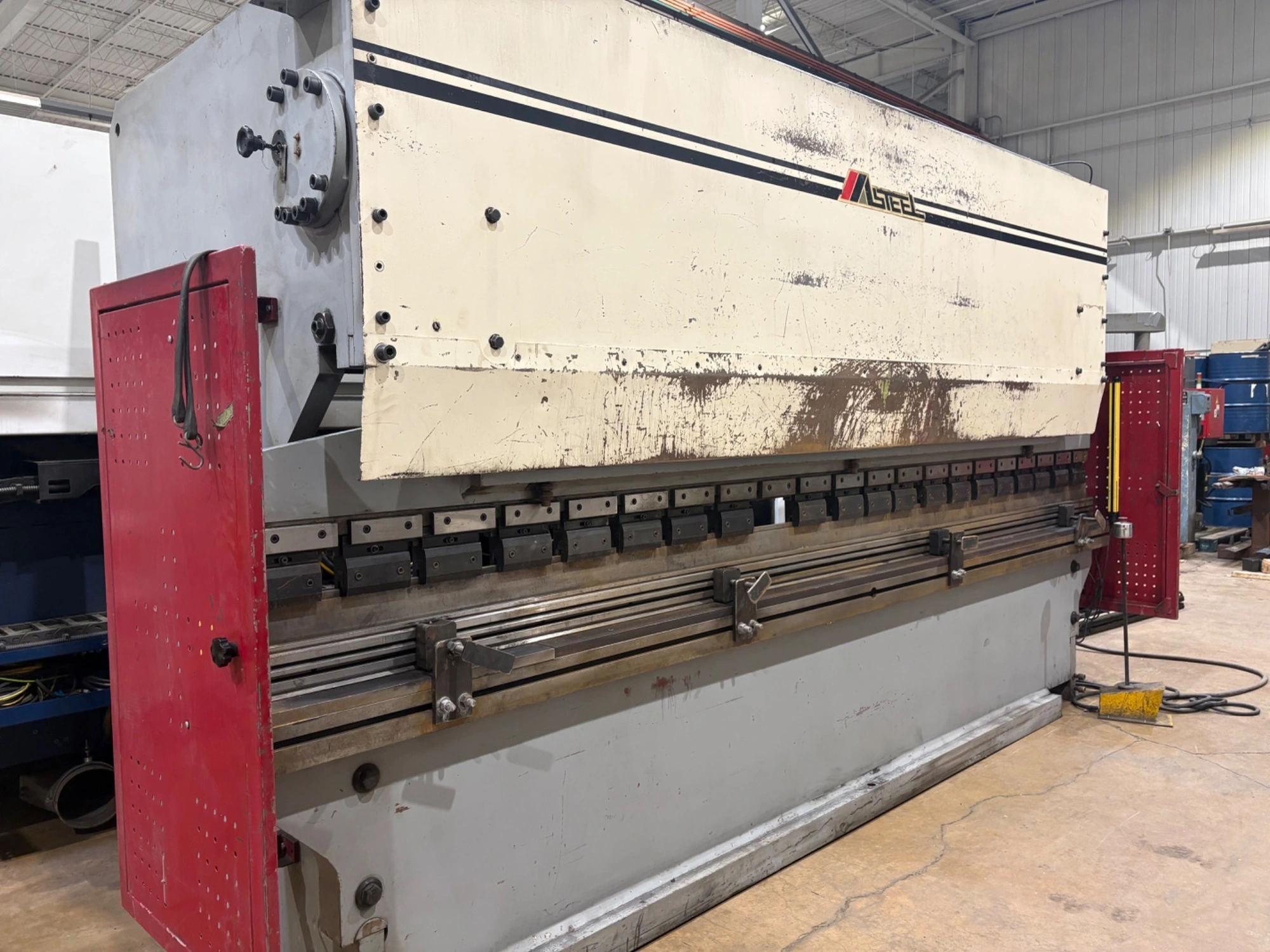

Masteel 14200 200 Ton X 14' Hydraulic Press Brake (2006)
General Specifications:
Tonnage: 200
Bed Length: 14’
Distance Between Frames: 122”
Length of Ram Stroke: 6.75”
Open Height: 16.75”
Closed Height: 10”
Throat Depth: 12.75”
Main Motor: 15 HP
Confirmed Voltage: 480V 3Ph/60 Cycle
Approximate Weight: 19,700 lbs.
187” (15’-7”) wide x 57.5” deep x 100” Tall.
TP 700 Control
