| Capacity Round | 16.5 in | 16.5 in |
| Capacity Square | 16.5 x 16.5 in | 16.5 x 16.5 in |
| Capacity Rectangular | 16.5 x 16.5 in | 16.5 x 16.5 in |
| Maximum Cutting Capacity - Bundle | 6.3 x 5.1 - 10.2 x 6.3 in. | 6.3 x 5.1 - 10.2 x 6.3 in. |
| Saw Blade Size | 202.76 x 1.6 x 0.05 in. | 202.76 x 1.6 x 0.05 in. |
| Motor | 10 HP | 10 HP |
| Hydraulic Motor | 2 HP | 2 HP |
| Weight | ≈6,283 lbs. | ≈6,283 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor

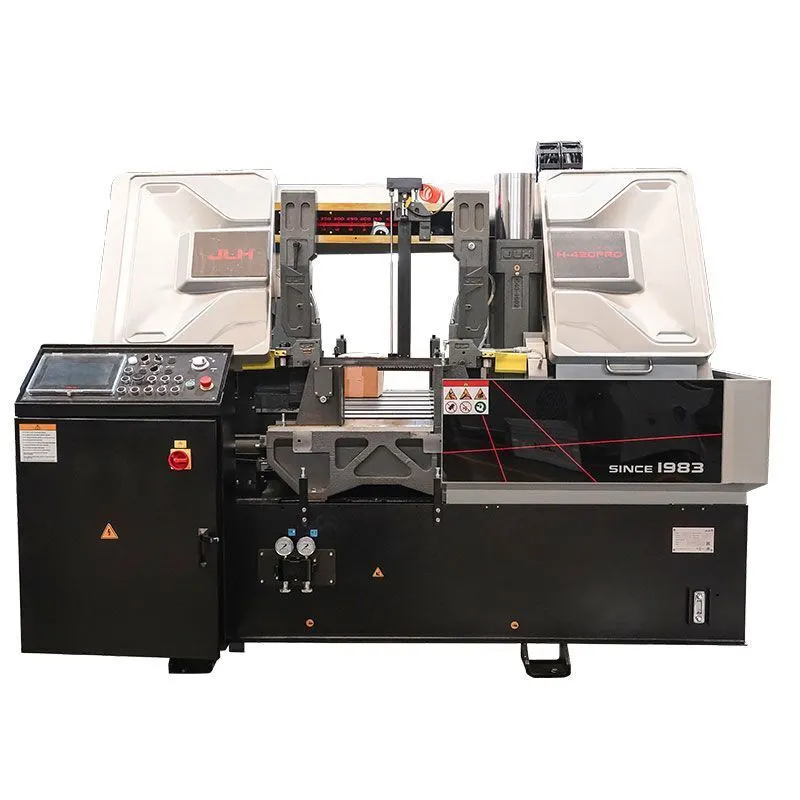

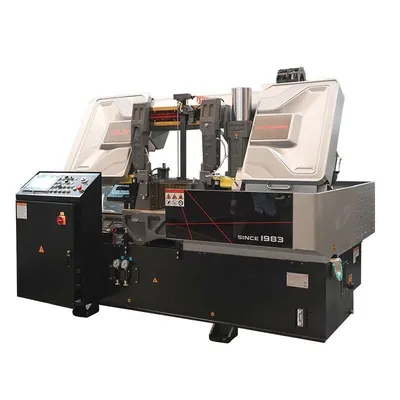

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for Price:
UL Electrical Safety
Laser line projection
Sawing Depth Control
Deviation detector
Hydraulic saw guide clamping
Top clamp
Auto Lubrication device
Servo driven
Hydraulic movable Guide arm
Chip collection box (movable) 70 (L)
Transport underframe for containers
