USED PFAUDLER 2,000 GALLON

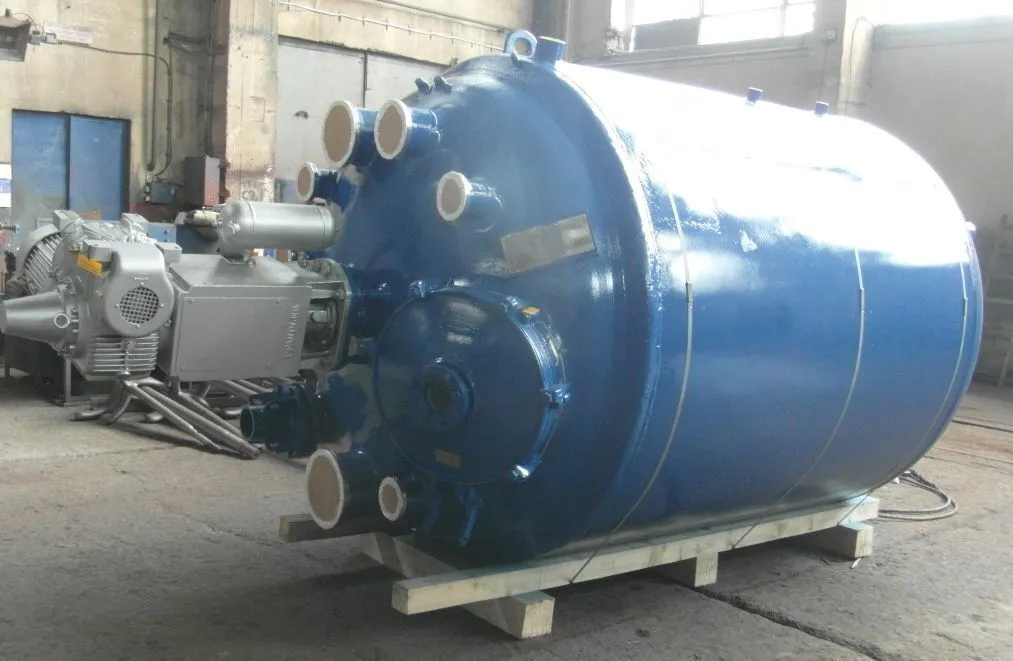

Used Pfaudler Glass-Lined Reactor, 7,550 Liters (2,000 Gallons)

Re-glassed vertical batch reactor
Full fire-polished glass lining, very clean condition
Rated 125 psi internal, full vacuum
Carbon steel jacket rated 100 psi, 450°F
Equipped with agitator, Cryo-Lock double mechanical seal, and 10 HP drive
Multiple top nozzles plus bottom outlet, leg supported

Nameplate details:
Manufacturer: Pfaudler
Model: RS 78
Capacity: 7,550 L (2,000 gal)
Diameter: 2,000 mm (78")
Straight side: 2,200 mm (86.6")
