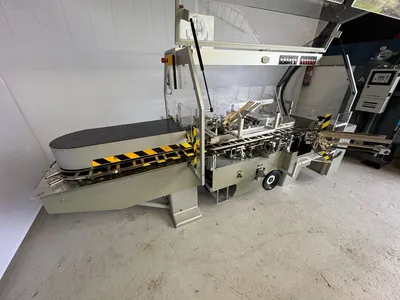

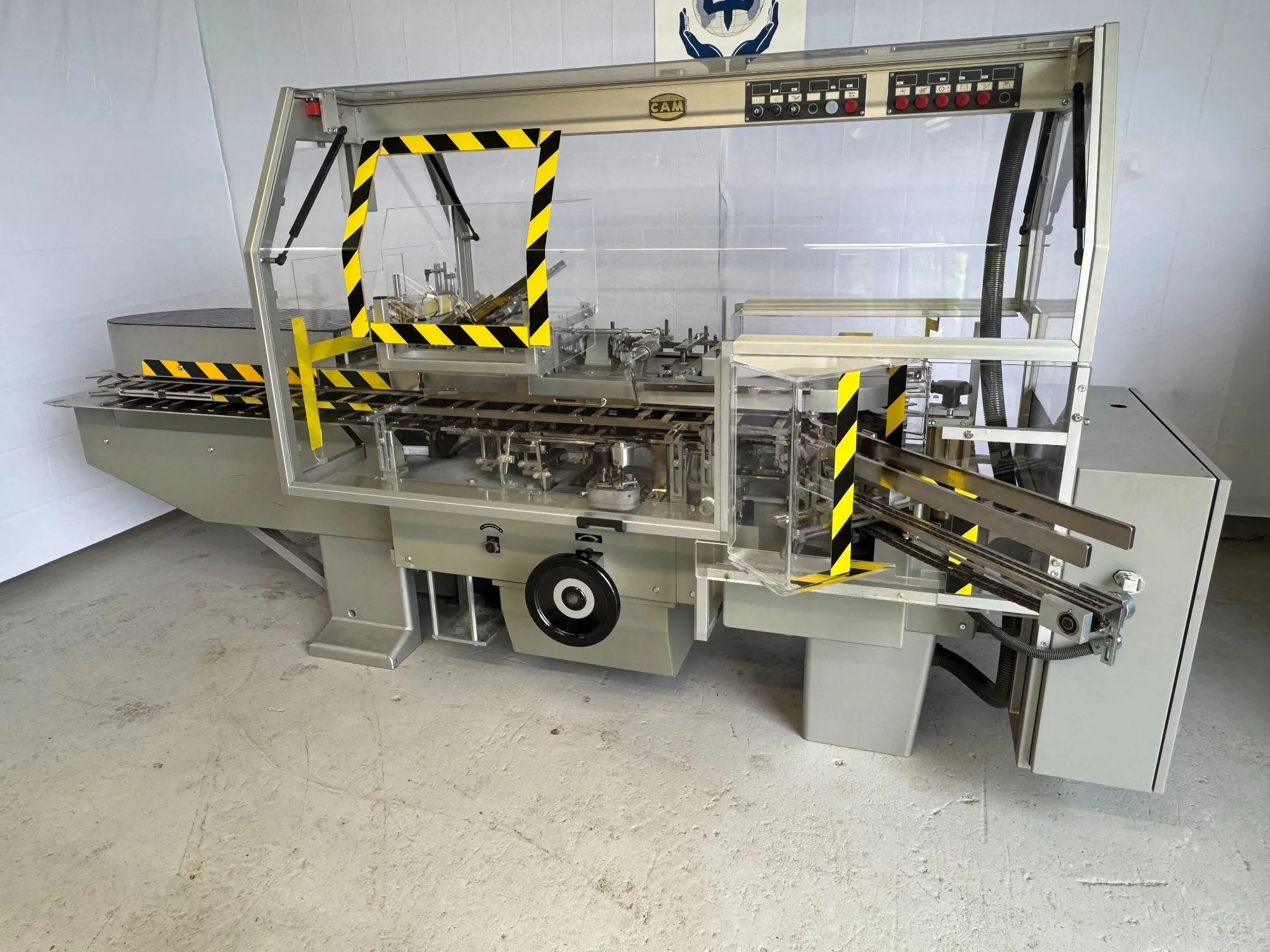

USED 2010 CAM AV

for any more information please get in touch

2x Units available

This machinery originates from a prominent pharmaceutical manufacturing plant in Central Europe.

Working Description:

Semi-automatic vertical intermittent motion cartoner in Stainless Steel with output up to 70 boxes per minute (depending on product type and number of operators)

Suitable for Pharmaceutical, Cosmetics, Nutraceutical, Contract Packing, Biopharma, FMCG, Medical Devices and other industries.

Excellent condition for age - originates from a prominent Pharmaceutical manufacturing in Europe, where machine was serviced on

regular basis.

Technical info:

Carton box size range:

- Width: 20mm to 115mm

- Depth: 15mm to 75mm

- Height: 50mm to 195mm

- *Width + Depth (max) up to 190mm

CE marked

Fitted with side cassette feeder for empty boxes

Pre-folded leaflet inserter (leaflet dimensions: Length: 100 to 210 mm, Width: 18-45 mm)

Fully guarded with interlocking

Power absorption: 1,2 kW

Air consumption: 16.9 Nl/1’

Air pressure: 5÷6 Bar

Manuals

Equipment size: L: 3300mm x W: 1600mm x H: 1,900mm

Weight total: approx. 1650kg
