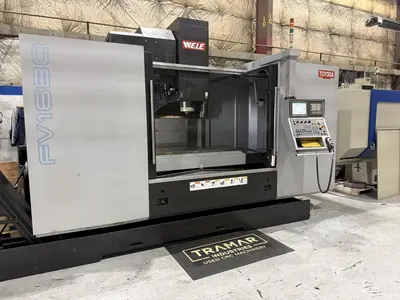

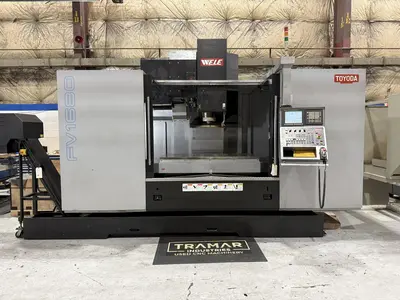

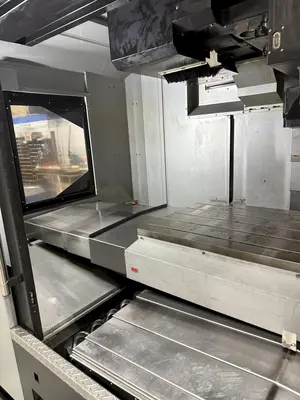

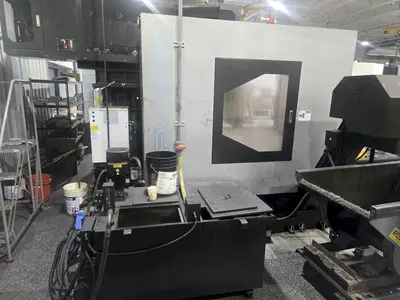

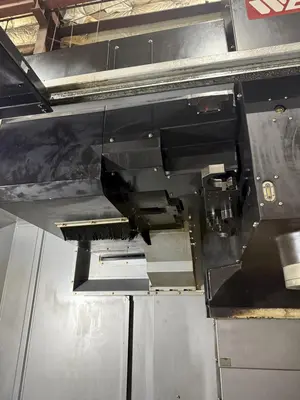

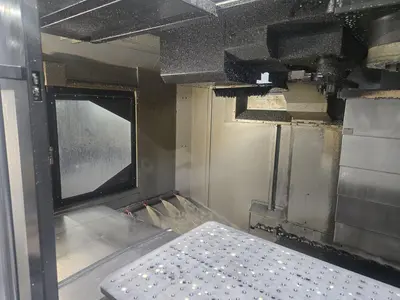

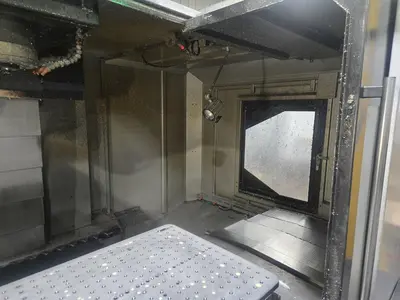

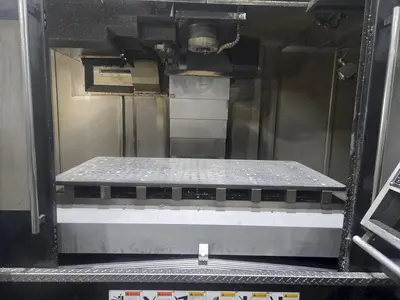

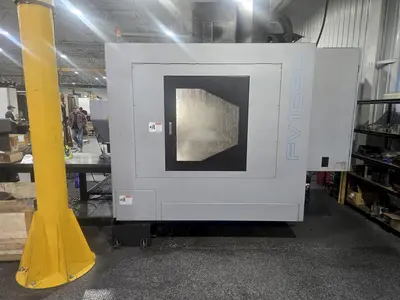

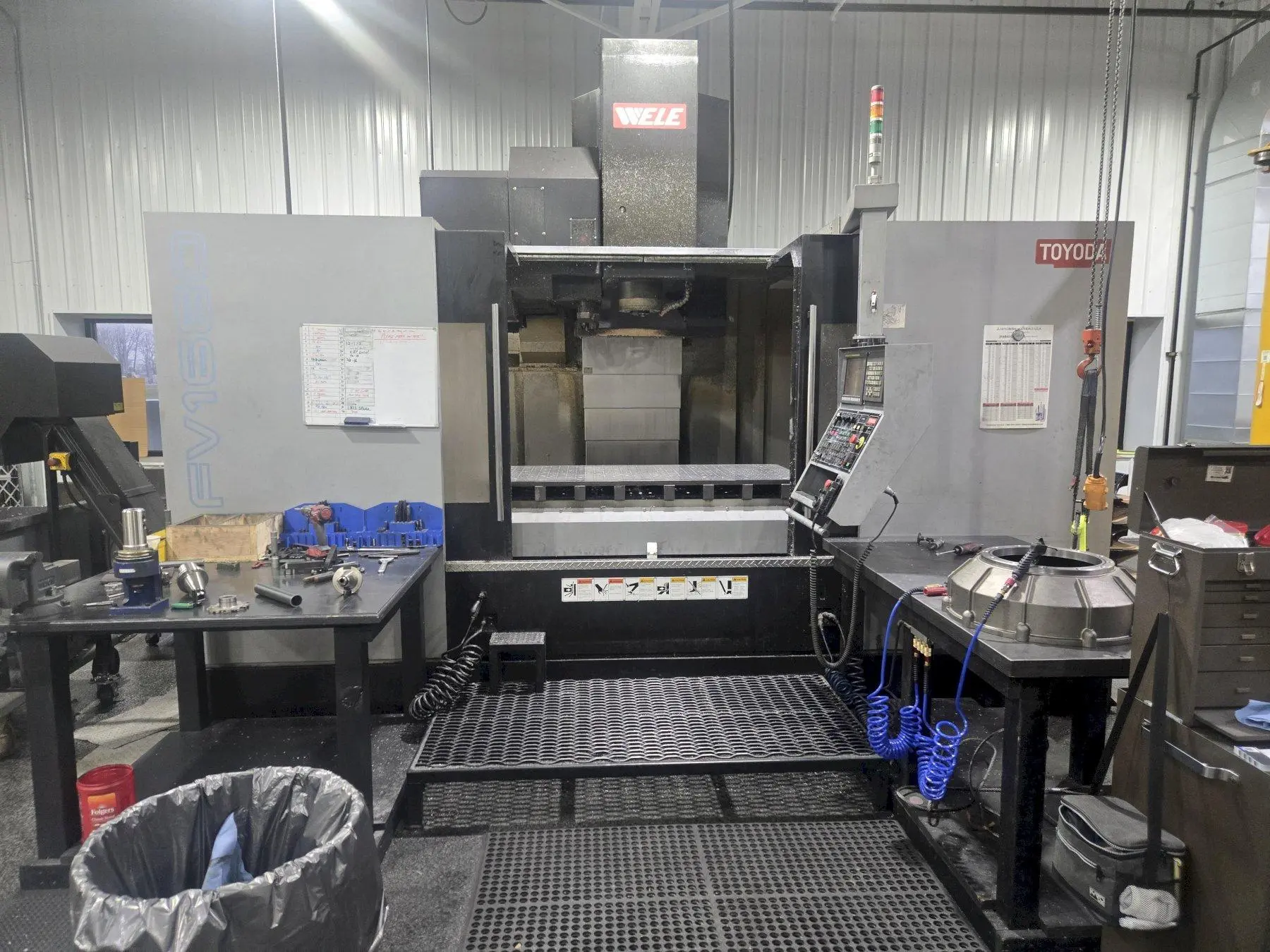

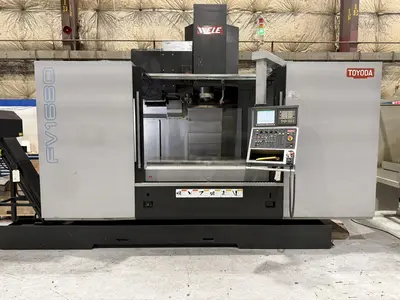

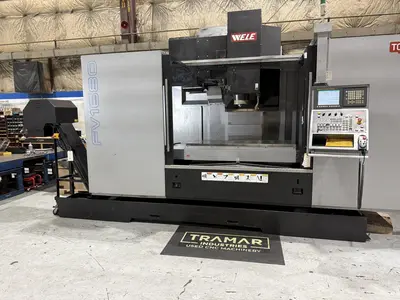

USED 2015 TOYODA FV-1680
Overview
Description

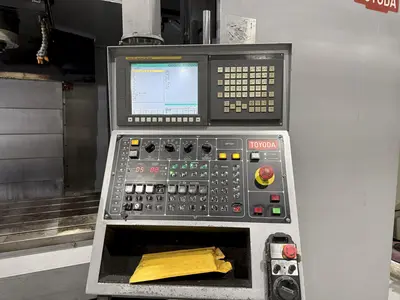

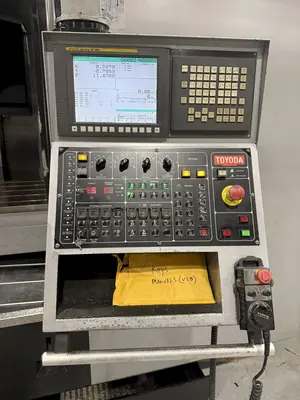

Fanuc 0i-MC CNC Control
Table Size: 68.9" x 31.5" - 4,000 lbs
Travels: X-63"/ Y-31.5"/ Z-31.5"
CAT 50 | 6,000 rpm | 35 HP | 40 ATC
Probing & Coolant Thru Spindle
The Toyoda FV-1680 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specifications
CNC Control: yes
Control Type: Fanuc 0i-M
# Axis: 3

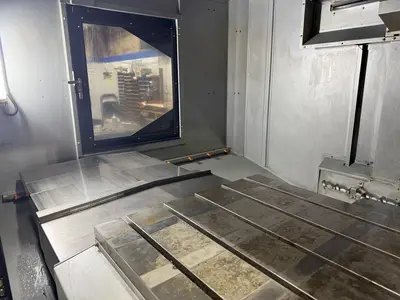

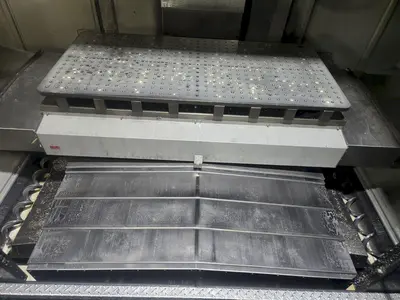

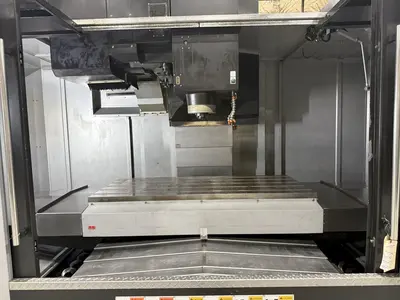

Table Size: 68.9" x 31.5"
Table Capacity: 4,400 pounds
X-Axis Travel: 63"
Y-Axis Travel: 31.5"
Z-Axis Travel: 31.5"
Spindle Taper: CAT 50
Spindle Speed: 6,000 rpm
Main Motor: 35 hp
Tool Changer Capacity: 40
Coolant Thru Spindle: yes
Machine Weight: 35,200 pounds
Equipped With
- Fanuc 0i-M CNC Control
- Data Server
- Ethernet Function
- USB Port
- Manual Guide i
- AI Contour Control
- (4) Y-Axis Box Ways
- 2-Speed Geared Head
- Spindle Chiller
- Coolant Thru Spindle
- Renishaw Probing
- Remote Hand Wheel

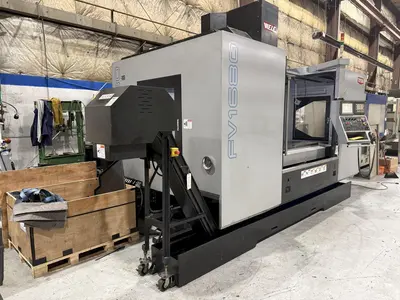

- Chip Conveyor

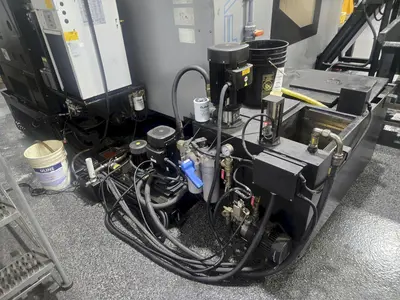

- High Pressure Coolant Unit
- Coolant Tank & Pump
