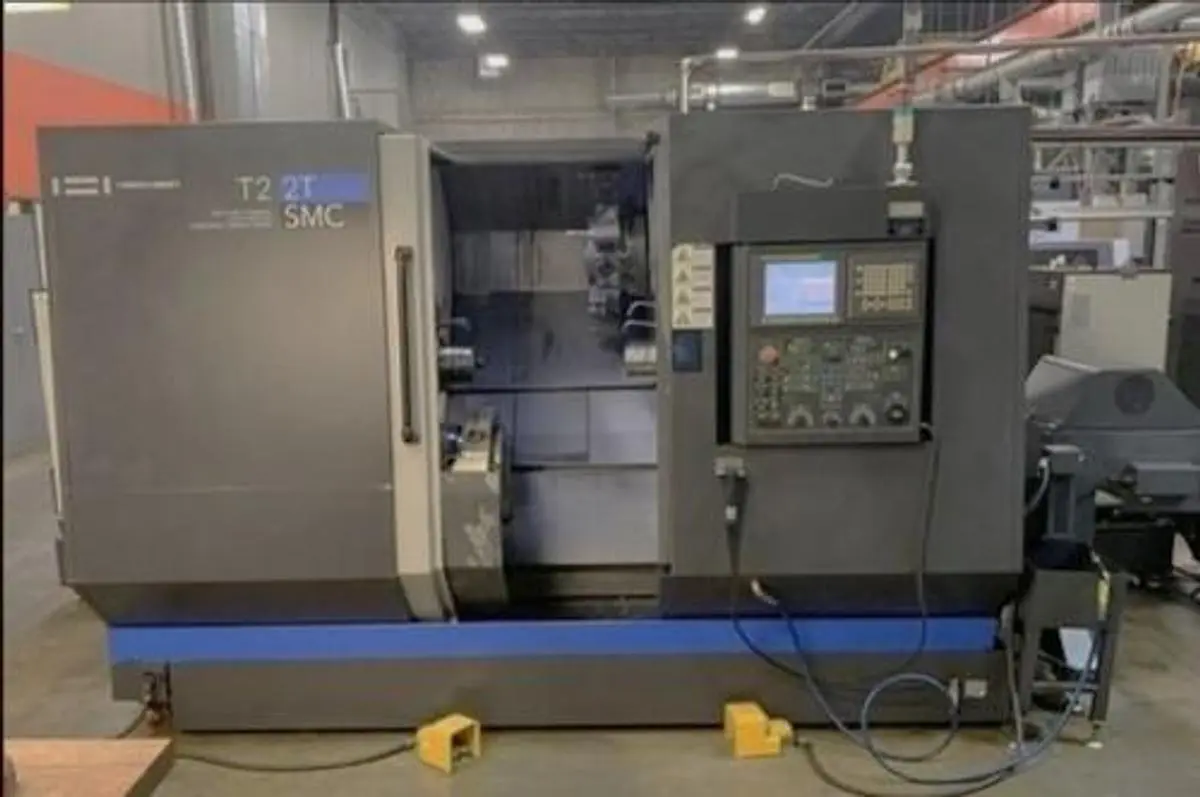

USED 2013 DOOSAN T2-2T

Full C Axis Spindle Rotation
Live Milling/Drilling Capability

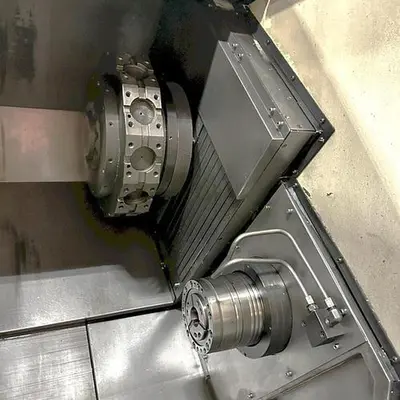

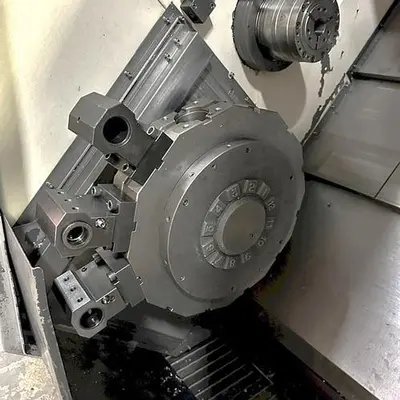

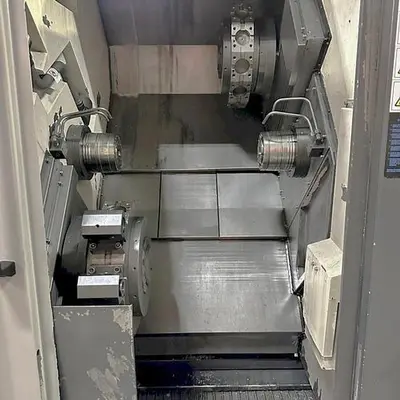

Twin Turret Design with Upper and Lower Turrets - Milling on Both
Dual Spindle Design

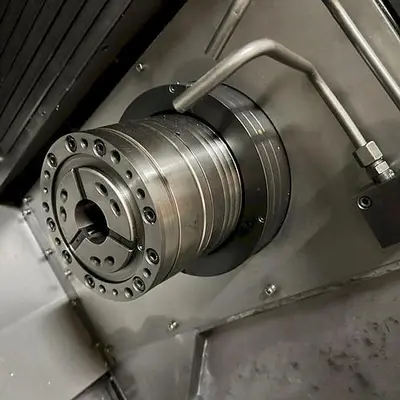

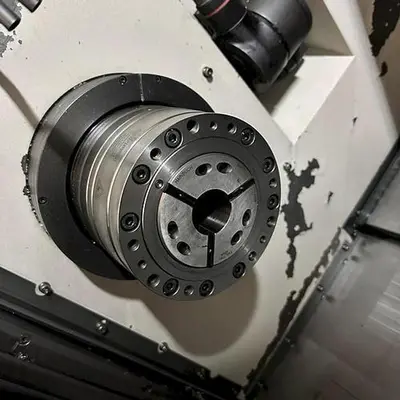

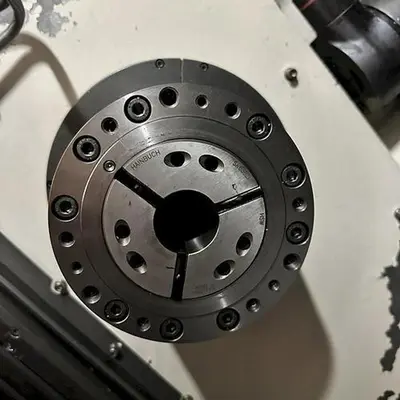

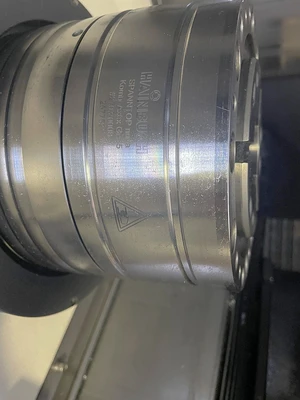

(2) Hainbuch Spanntop Nova 65 Collet Chucks - Both Spindles

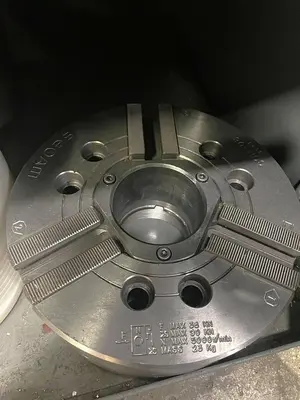

8" Seoma 3 Jaw Hydraulic Chuck

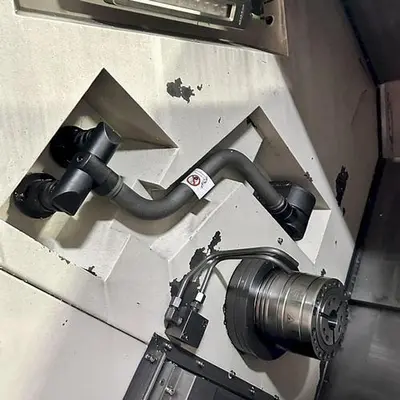

Tool Presetter
Chip Conveyor

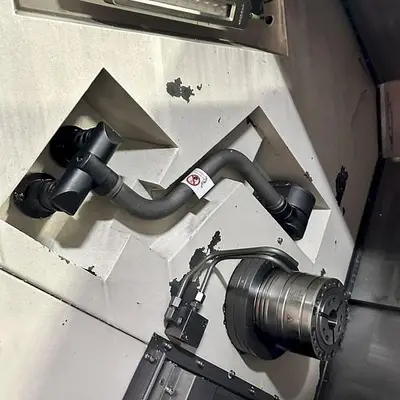

Parts Catcher
Parts Exit Conveyor

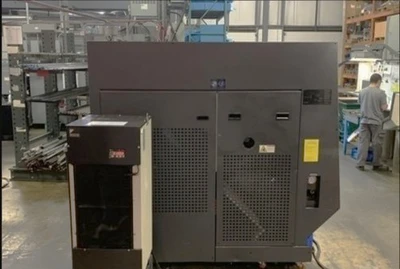

Oil Chiller
PCMCIA Card Interface
Ethernet Interface
RS 232 Port Interface
Boxed Ways
Coolant Tank with Pump
Transformer
Hydraulic Brake on Both Spindles
All Available Manuals
Live Tooling Includes (4) Right Angle ID Type and (2) Straight OD Type Holders
(16) Static Tool Holders for Round and Square Shank

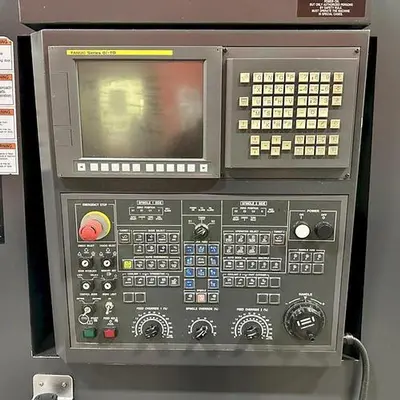

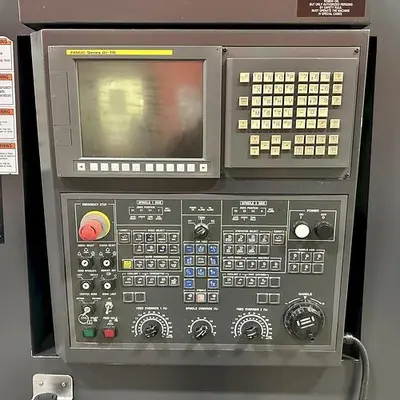

Control: Fanuc 0i-TD Series Control
Chuck Size: See Above
Maximum Cutting Diameter: 18.1"
Maximum Distance Between Centers: 24.5"
X1-Axis Travel / X2-Axis Travel: 9.65" / 8.27"
Z1-Axis Travel / Z2-Axis Travel: 20.47" / 20.47"
B-Axis Travel (Subspindle): 21.62"
C Axis Spindle Rotation: .001 Degrees - both Spindles
Spindle Nose / Spindle Bore: A2-6" / 3.15" Main Spindle
Main & Subspindle Speeds: 5,000 RPM
Spindle Motor - Both Spindles: 20 HP
Rotary Tool Speed / Rotary Motor: 6,000 RPM / not known
Number of Turret Positions: 12 Station Turret - Each
Rapid Traverse Rates X / Y / Z: 787 IPM / 295 IPM / 984 IPM
Machine Dimensions: 129" x 86" x 83"
Machine Weight: 19,841 lbs
