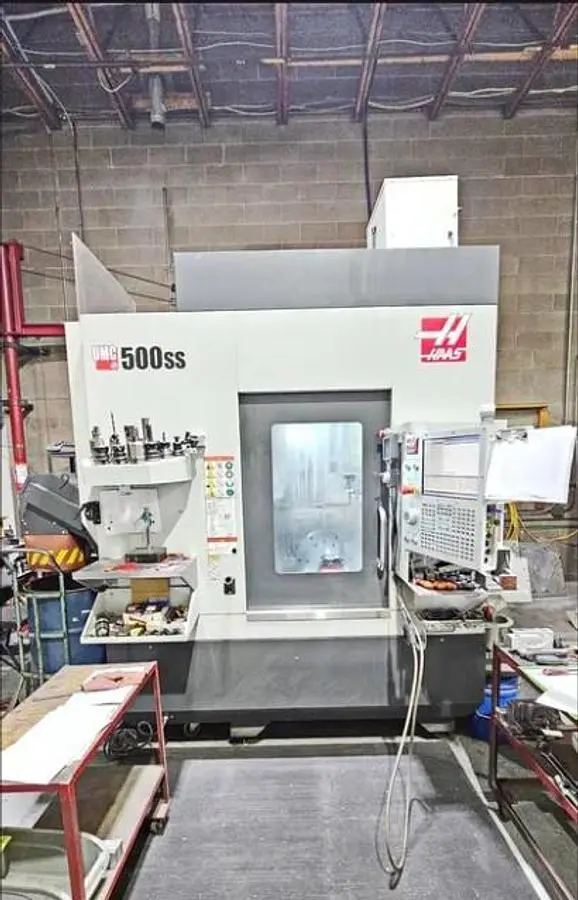

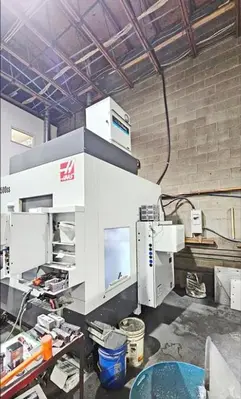

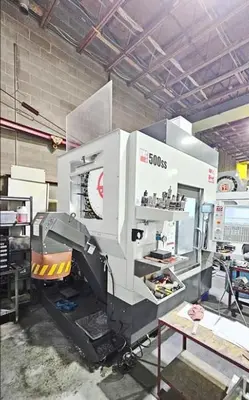

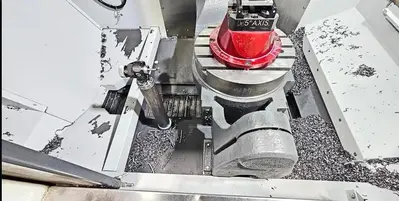

USED 2021 HAAS UMC-500SS

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
Renishaw Probing with Tool & Part Probing

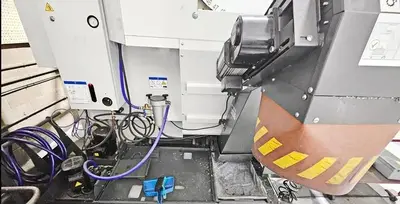

Chip Conveyor

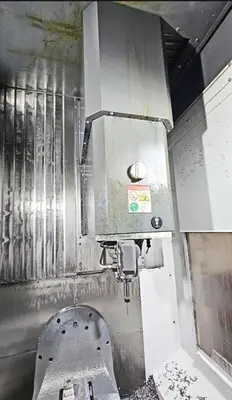

12,000 RPM Spindle
50 Station Side Mounted Tool Changer
Remote Jog Handle

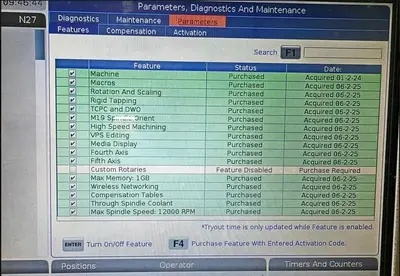

User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Haas Visual Programming System Editing
Rigid Tapping
High Speed Machining
Compensation Tables
Media Display
1 GB Program Memory
Wireless Networking
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump

The 2021 Haas UMC-500SS is a precision-oriented, 5-axis universal machining center designed for complex component fabrication. It features a 15.7" diameter table with a load capacity of 500 lbs, ideal for handling diverse workpieces. The machine offers impressive travel capabilities: 24" along the X-axis, 16" each for Y and Z axes, enhancing operational flexibility and efficiency.

Equipped with a BT #40 spindle taper, the UMC-500SS boasts a maximum spindle speed of 12,000 RPM powered by a robust 30 HP motor. This model includes a 50+1 position tool changer, accommodating tools with a maximum diameter of 5", length of 12", and weight of up to 12 lbs. Its high-speed machining capabilities are supported by rapid traverse rates of 1200 IPM and maximum feed rates of 650 IPM, optimizing production times.

Additional features include a coolant through spindle, probing, and high-speed machining (HSM), enhancing precision and operational ease. The machine's dimensions are 128" x 98" x 110", and it weighs approximately 12,500 lbs, making it a significant but manageable addition to any production floor. The machine's capabilities, combined with its robust construction, make it a reliable choice for complex machining tasks.

Table size: 15.7" Diameter
Table load capacity: 500 lbs
X axis travel: 24"
Y axis travel: 16"
Z axis travel: 16"
B axis rotate of trunnion: -35 Degrees to 110 Degrees
C axis table rotation: .001 Degree Positioning
Spindle taper: BT #40
Spindle speed: 12,000 RPM
Spindle motor: 30 HP
Distance Spindle Nose to Table Top: 4" - 20"
Tool magazine: 50 + 1 Position Toolchanger
Maximum Tool Diameter / Length / Weight: 5" / 12" / 12 lbs.
Rapid traverse rates: 1200 IPM
Maximum feed rates: 650 IPM
Machine dimensions: 128" x 98" x 110"
Machine weight: 12,500 lbs
