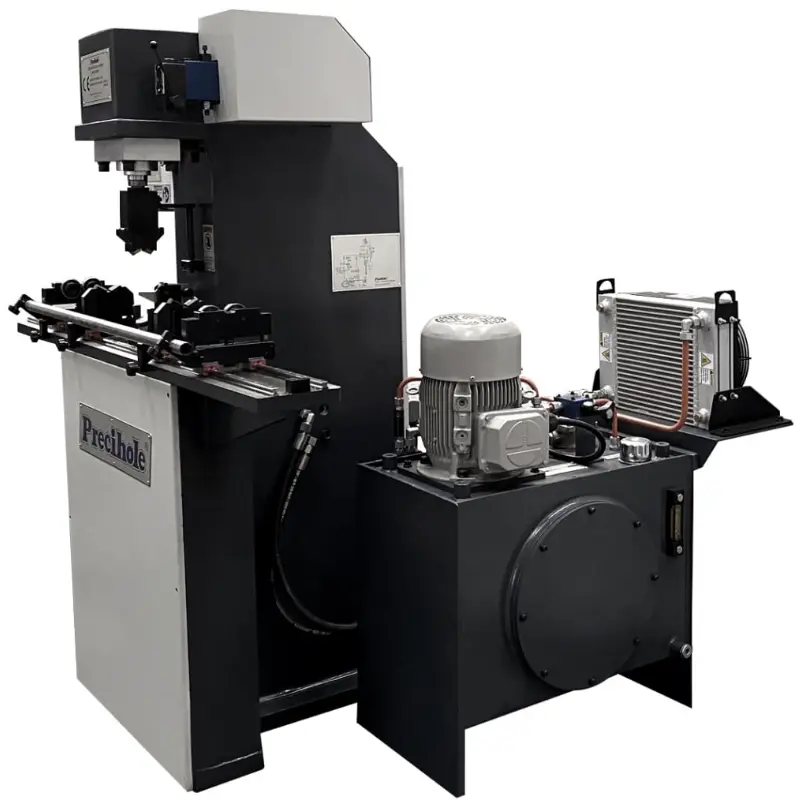

NEW PRECIHOLE BSP10

Precihole‘s BSP Series shaft and barrel straightening machines are compact and precise for straightening gun barrels. Barrel blank straightness is a very important factor that determines the accuracy of the weapon system.

A barrel is a long slender shaft that is likely to bend during many stages of heat treatment and machining as it goes through all the way from bar stock to a gun-ready profiled and chambered barrel. The press, which uses a hydraulic cylinder, allows straightening of all blank ODs from ∅20mm to ∅60mm and lengths of up to 1,500mm.

These shaft and barrel straightening machines are very simple to use and do not require any special operator skills.

Machine features:
Compact and robust design to accommodate all varieties of barrel steels and shaft ODs
Use of linear motion rails for adjusting lengths and movement of precision dials
Precise control over straightness achieved over the entire length of the barrel
Simple operator-friendly controls
