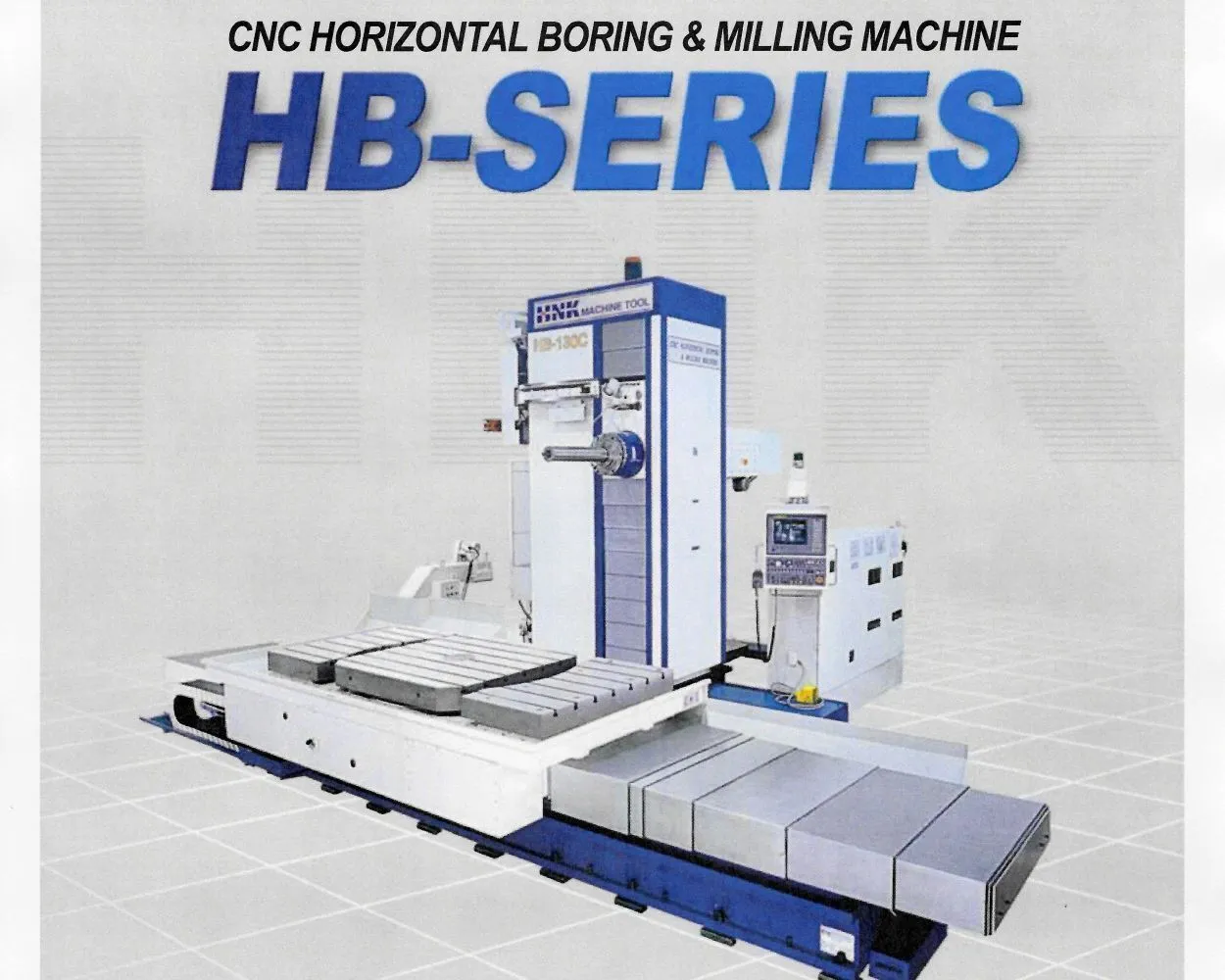

USED 2000 HNK HB-130CX

2000 HNK HB-130CX Table Type Larger Capacity CNC Boring Bar with 5.1" spindle, 157" X-axis, and 90" Y-axis. Equipped with FANUC 18iMB CNC Control, spindle oil chiller, chip conveyor, and coolant system. Top Condition Fully Installed Under Power!

2000 HNK HB-130CX Boring Mill, 5.1" spindle, 157" X-axis, and 90" Y-axis. Equipped with FANUC 18iMB CNC Control, spindle oil chiller, chip conveyor, and coolant system. Top Condition Fully Installed Under Power!

Main Specifications
BORING SPINDLE DIAMETER: 5.1"
AXIS TRAVELS:
X AXIS: 157"
Y AXIS: 90"
Z AXIS: 51"
W AXIS: 27.5"

DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE: 30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE: 0 - 90"

TABLE:
DIMENSION: 63" X 157"
ROTARY TABLE DIMENSION: 63" X 63"
ALLOWABLE LOAD: 33,000 LBS.
ROTARY TABLE ALONE: 22,000 LBS.
ROTARY INDEX: .001 DEGREE WITH 90 DEGREE SHOT PINS

SPINDLE HEAD:
POWER: 35 HP
SPEEDS: 5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER: ISO #50, 7/24 TAPER

MACHINE WEIGHT: 108,000 LBS.
MACHINE DIMENSIONS: 397" X 291" X 193" HIGH

TOOL CHANGER:
60 TOOLS CAPACITY
TOOL SHANK / PULL STUD: CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN ATC: 16"

SPECIAL PRICE ON REQUEST. Please Email RFQ.

Budget Prep & Rigging Costs Ready on Request
Delivery Capable Depending on Location.
