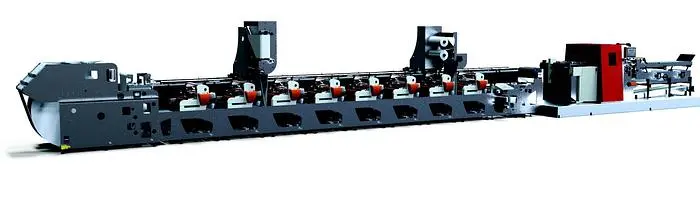

NEW EDALE FL5 & IN-LINE FLATBED DIE CUTTER

The Ultimate Single-pass folding carton line. Combine print, cut, crease, braille embossing and waste removal into a single machine with the FL5 Carton line, ideal for short-run work from 1,000 – 100,000 units and reconfigurable for a wide range of sizes and forms.

The Flatbed Die Cutter runs in-line with the FL5, combining low tooling costs with cut, crease, braille, waste stripping and diverging delivery, all in a single pass. The Edale FL5 & In-line Flatbed Die Cutter make a highly efficient solution specifically designed for folding carton production.

Technical Specifications:
Available Web Widths: 510mm / 20”
570mm / 22.4”
600mm / 23.6"
650mm / 25.5”
Repeat Range: 203.2 – 609.6mm / 8 – 24”
Material Range: 12 – 700 microns / 0.5 – 27pt
Mechanical Speed: 200 meters/minute / 660 feet/minute

Jumbo Unwind w/ Reel Lift & Touch Screen Control
Shaftless Dual Servo Print Technology
Gearless Impression
Autonomous Inking, Impression, & Register
Automatic Registration
Electronic Linear & Lateral Registration
Modular Design
Job Storage/ Job Recall HMI
In-line Flat Bed Die Cutter

Print, Foil, Laminate, Cast & Cure, Varnish, Emboss, Cut & Crease, and Strip ALL IN ONE PASS! If versatility is key to your business, then the FL5 flexographic printing solution is the ideal solution.
