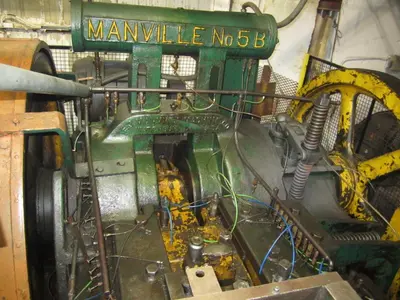

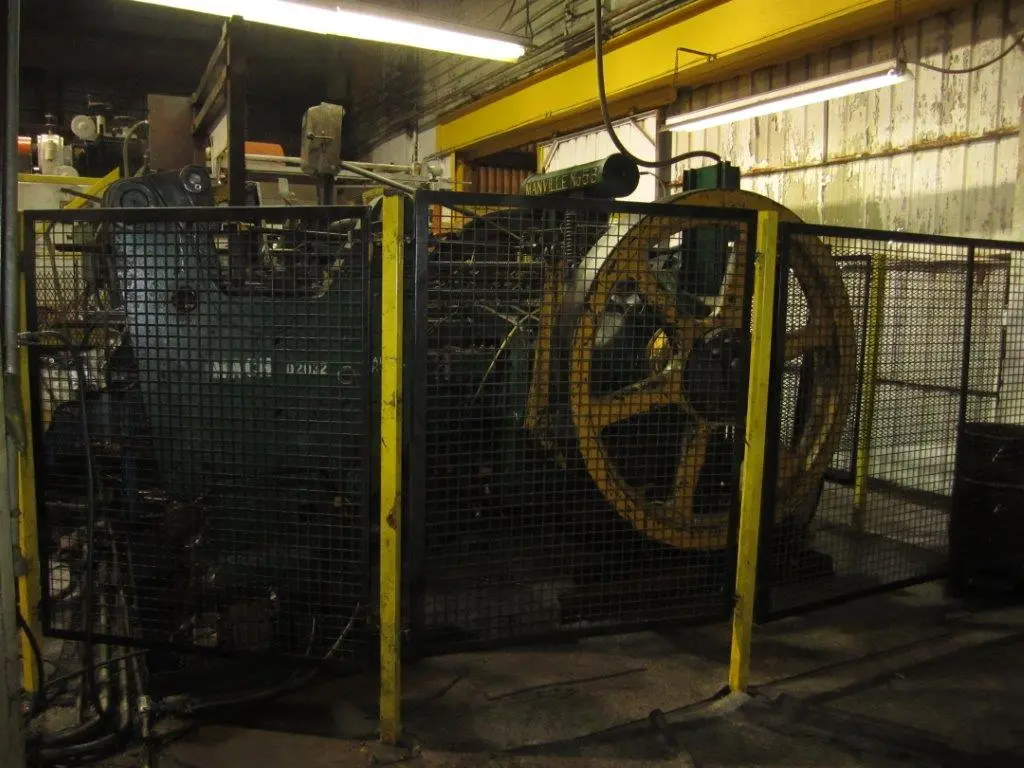

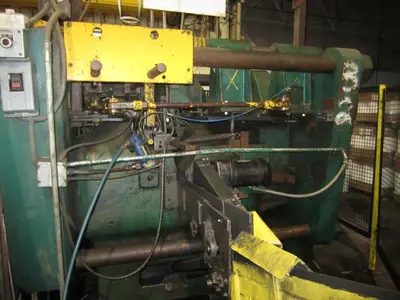

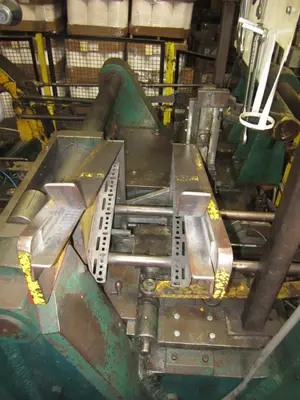

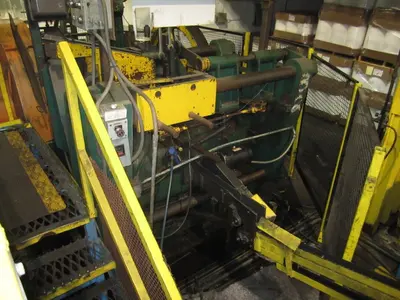

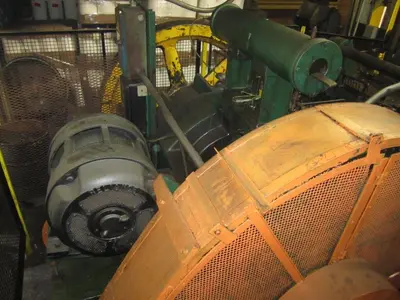

One Used 3/4" Manville Model 5B Open Die Double Stroke Magazine Fed Rod Header, Serial No 4852
3/4" Max. wire diameter
18" Max. part length (Can be up to 32" with slight change)

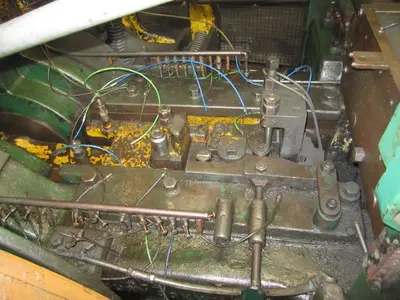

3-1/2" Square Grip dies x 7" long.
Approx. 25 PPM.
Equipped with

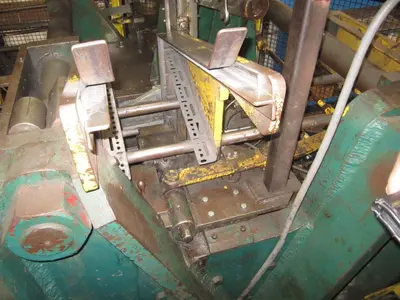

Magazine feeder

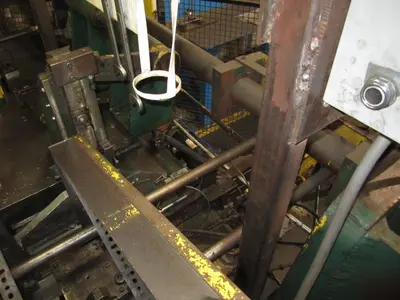

Motorized chain escapement conveyor
Extended gather and pull-off (approx. 3-1/2")

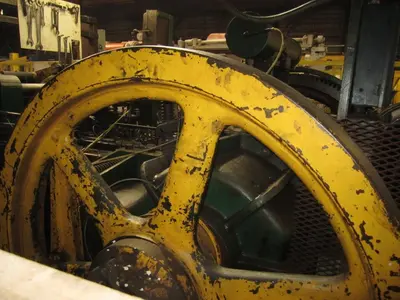

Gear drive
A/C motor and controls.
This machine was originally a coil fed machine.
Dimensions:
11'-1" W x 13'-2" L x 9'-7" T
Weight: Approx. 72,500 lbs.
