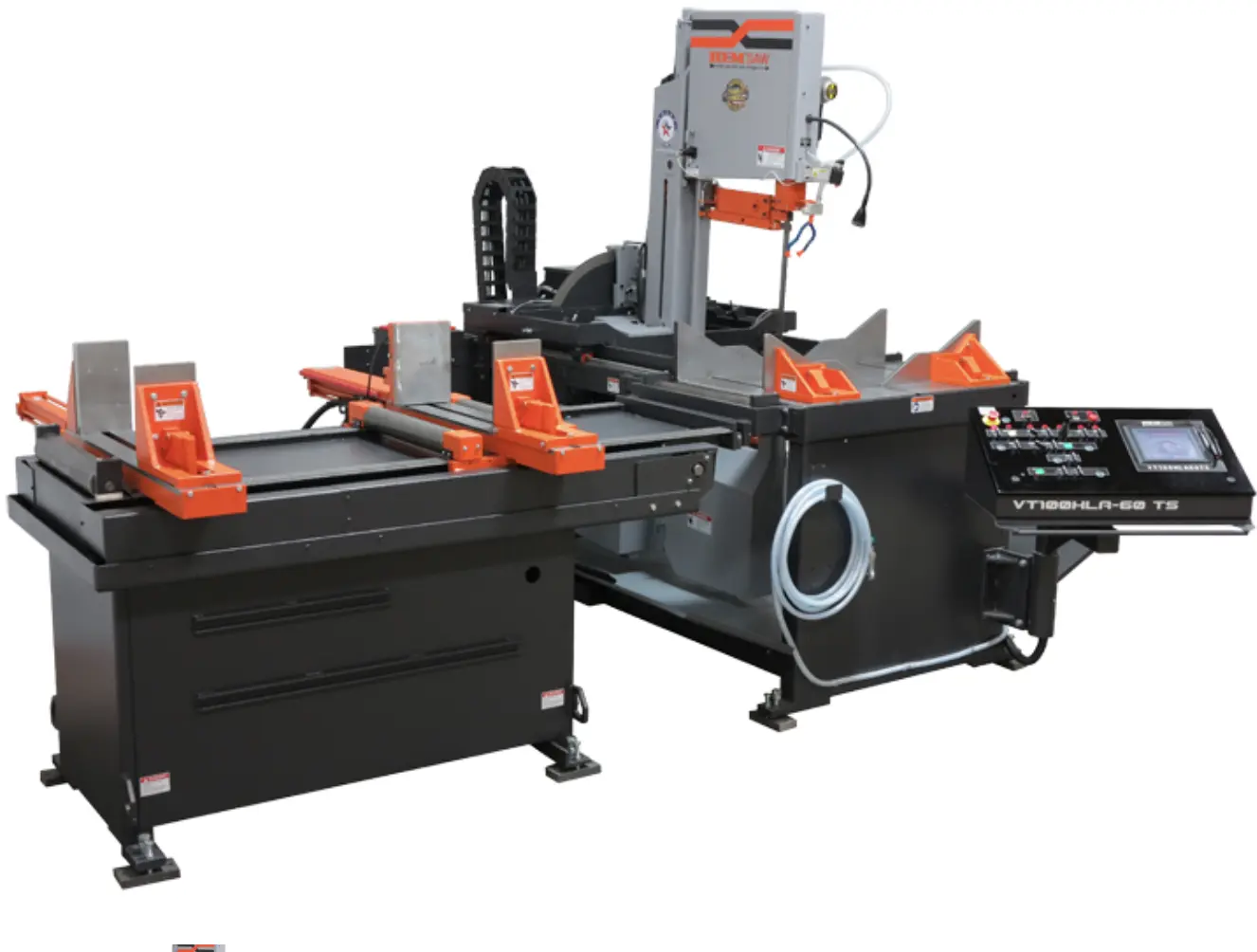

NEW HEM Saw VT100HLA-60-CTS
Overview
The VT100HLA-60-CTS is a fully automatic and programmable saw that will miter up to 60ᵒ in both directions Manual, Semi-Automatic, and Fully Automatic modes will save jobs for future using a touch screen control and the bar-feed indexes 48” per stroke with multiple indexes possible.
Standard Features
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Powered Programmable Tilt w/ Angle Readout
4° Removable Arm Cant
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Guide Arm - Powered
Variable Blade Speed w/ LED Readout
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Passive "Cut Watcher®" System
Powered Blade Tension
Forward Cut Stop
Idle Base Rollers - 1 Each Side of Base
Coolant System - Flood w/ Wash-Down Hose
Boltable Side Wings for Coolant Drainage
Blade Brush
Out-of-Stock Function
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Specs
Rectangular Capacity 0-18" W x 0-20.75" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed 0-48" (Stroke Hydraulic Motor - Multiple Index)
Motor 5 HP
Hydraulic Motor 2 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 15' 6" L x 1.25" H x .042"
Cantilever Removable
Bandsaw Blade Speed N/A
Bundle Cut? Yes
