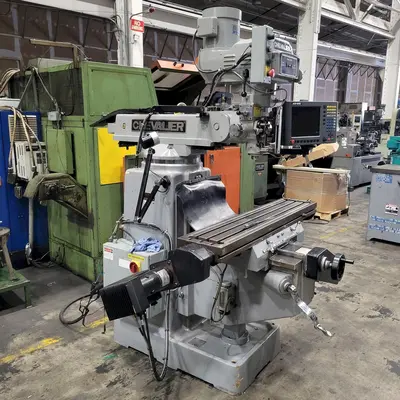

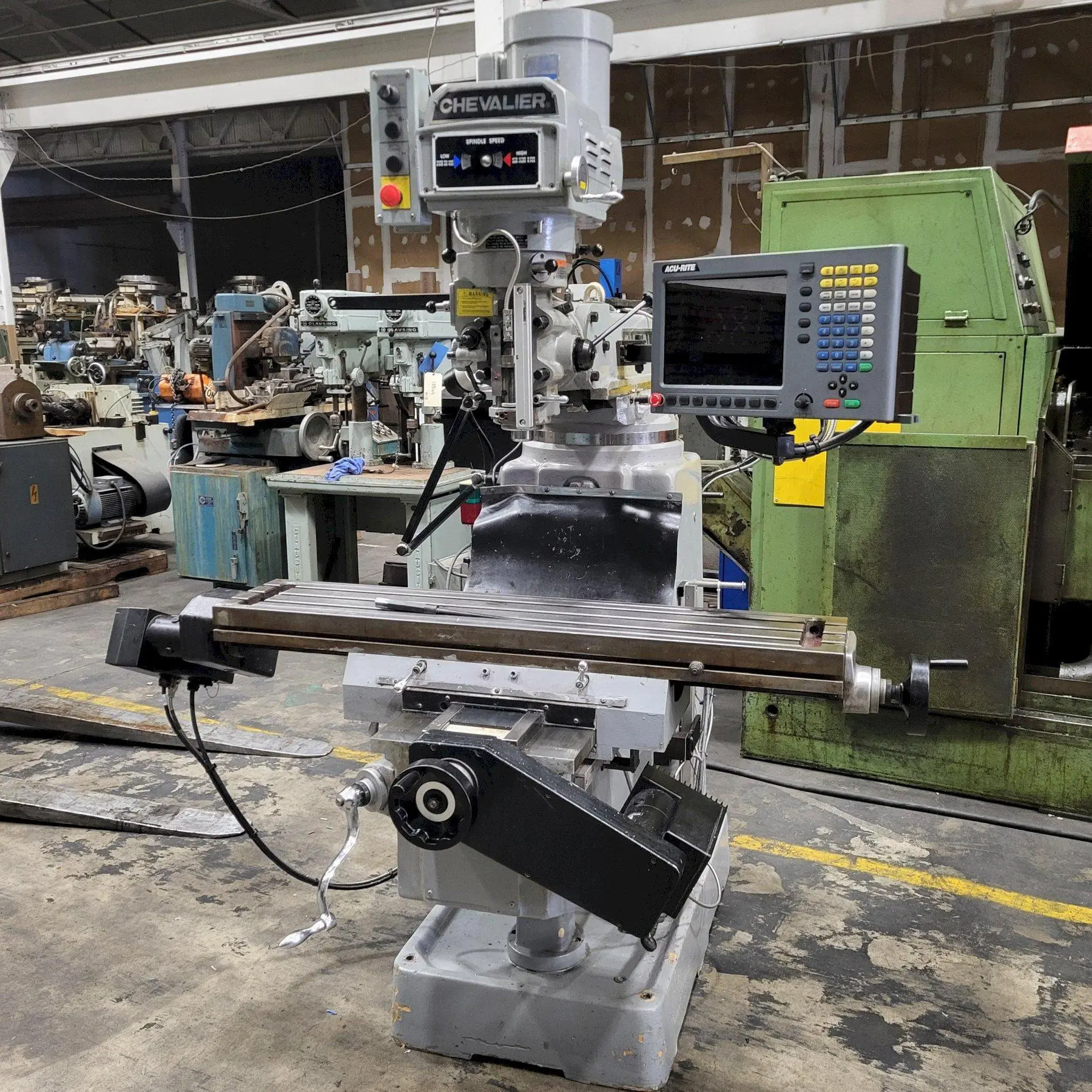

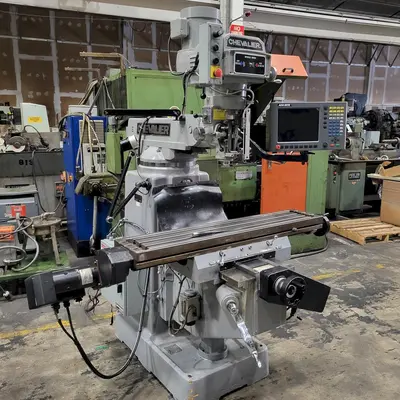

Chevalier 2 Axis CNC Milling Machine with AUC-Rite G2 CNC Control ( Mill Power G2)

Table Size: 254mm x 1,270mm (10" x 50")
Longitudinal Travel: 760mm (30")
Cross Travel: 390mm (15 3/8")
Vertical Travel: (knee) 380mm (15")
Table T-Slots: Quantity 3/ Size 16mm (0.63")
Maximum Workpiece Weight: 430 Kg (946 Lbs.)
Vertical Spindle Motor: 3 HP
Spindle Speeds: 50-4,500 RPM
Spindle Taper: R8
Spindle Nose to Table: 40-420mm ( 1 5/8"-16 1/2")
Spindle Centerline to Column Surface: 102-652mm (4"-25 5/8")
Quill Travel: 127mm (5")
Automatic Vertical Feeds ( Per Evolution of Spindle): 0.04, 0.08,0.14mm ( 0.0015",0.003", 0.006")
Head Swivel: R&L 90 Deg./ F&B 45 Deg.
Overarm Travel: 550mm (21 5/8")
Overarm Swivel: 360 Deg.
Weights (Approx.): 1520 Kg (3,350 Lbs.)
Floor Space (O.A. Dim.): 2000W x 2572D x 2150H mm ( 79" x 101 1/4" x 84 5/8")
Electrics: Set to Run in 230 Volts, 3 Phase
