The approximately 200-gallon Mueller storage tank is a used vertical design unit with a stainless steel construction. It features an inside diameter of about 38 inches and a straight side height of 4 feet. The tank has a flat welded top that includes an 18-inch manway and several top inlets for varied use. The dish bottom is equipped with a 1 3/4 inch center bottom flanged outlet, a 1-inch bottom outlet, and a 3/4 inch female threaded bottom outlet, making it versatile for different connection purposes.
Additionally, this tank is designed with an internal CIP (Clean-In-Place) pipe to facilitate cleaning processes. It is mounted on three stainless steel legs, each about 32 inches long, providing approximately 2 feet of underclearance. This tank is identified by serial number 161629-6 and was manufactured in the United States by Paul Mueller, known for their quality engineering in stainless steel process equipment. This setup is ideal for various storage needs in process engineering and other industrial applications.

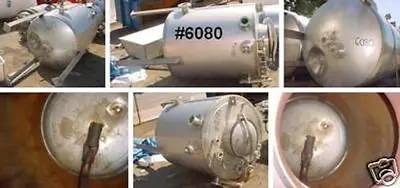

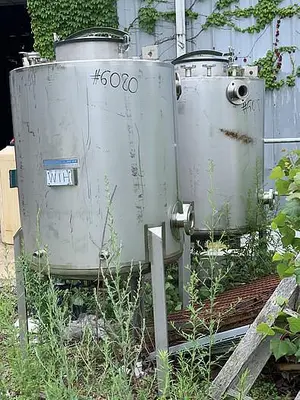

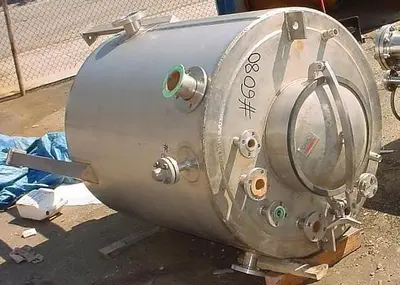

1 - used approx. 200 gallon/750 liter Mueller storage tank. Vertical design. Stainless steel construction. Approx. 38 in. inside dia. x 4 ft. straight side. Flat welded top with 18 in. manway and misc. top inlets. Dish bottom with approx. 1 3/4 in. center bottom flanged outlet, 1 in. bottom outlet and female threaded approx. 3/4 in. bottom outlet. Internal CIP pipe. Serial #161629-6. Mounted on (3) stainless steel legs approx. 32 in. long allowing for approx. 2 ft. of underclearance.
Country of manufacture: United States
