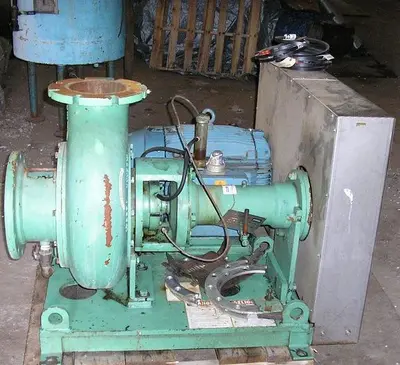

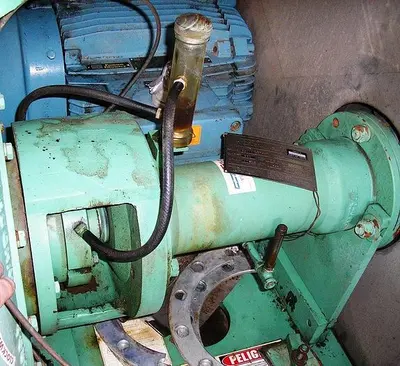

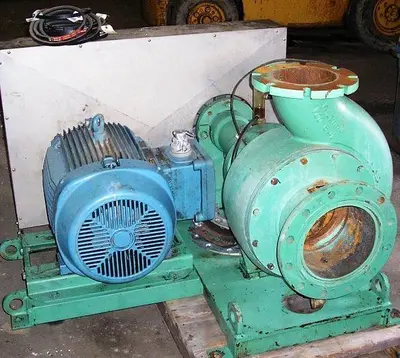

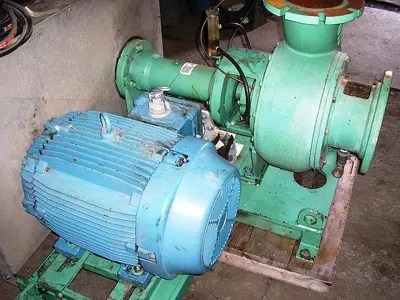

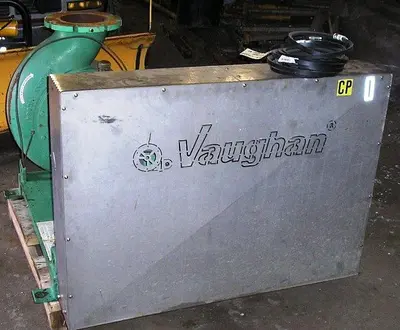

The Vaughn H8M10 is a robust, used belt-driven chopper pump designed for demanding applications. Equipped with a 60 HP explosion-proof Weg motor, it operates at a pump speed of 950 RPM, delivering a flow rate of 3000 gallons per hour. The pump features a carbon steel impeller with a diameter of 16 inches, providing a total head of 40 feet.
Designed to handle tough pumping conditions, this model is suitable for industrial environments requiring reliable performance. The motor is three-phase and capable of operation on 208-230/460 volts, with amperage options of 136/67.8, and is housed within a 364/5T frame. The input and output dimensions are 10 inches by 8 inches respectively.

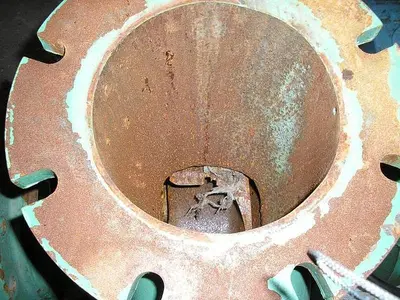

The unit is in good working order, though it is advised that the impeller might need replacement, as noted by the previous owner. Ideal for those in need of a durable, substantial pump with high flow rates, this American-manufactured unit offers a solid option for industrial and large-scale applications.
60 HP. Used Vaughn Belt Driven Pump Model #H8M10: Serial #59010/03/00
Imp. Diam. 16.0: Pump Speed 950 RPM: Total Head Ft. 40. Flow GPH 3000 Impeller Carbon Steel Construction.

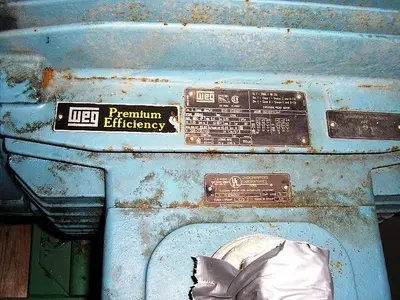

Input 10” x 8” Output Motor Information: 60 HP. Weg Motor Explosion-Proof 1750 RPM. 3 Phase 208-230/460 V. Amps: 136/67.8 Frame: 364/5T. Previous Owner said impeller might have to be replaced.
Rated power: 60 HP.
Discharge port diameter: 8 in.
Country/region of manufacture: United States
