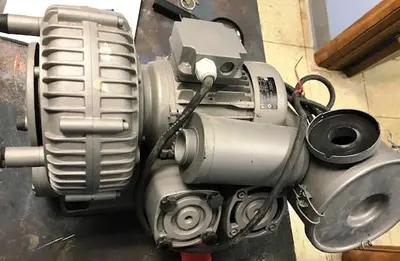

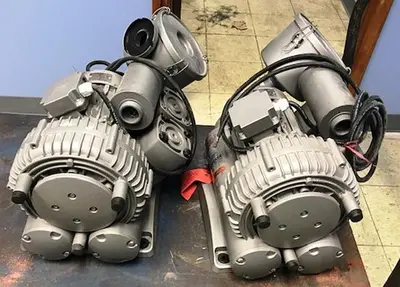

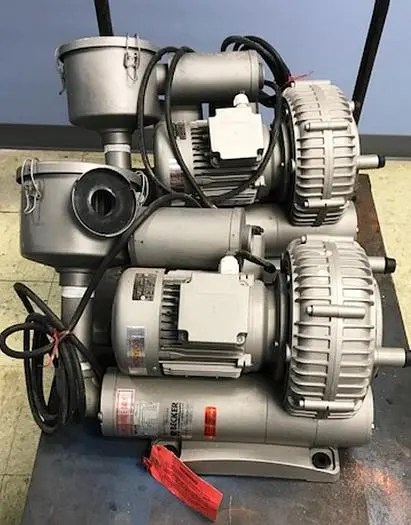

The 2008 Becker B2285187 Regenerative Blower is a new, oil-free pump designed for various industrial applications. This blower operates with a 0.75/0.90 motor suitable for 50/60 Hz cycles, offering an inlet capacity of 120/145 cubic meters per hour. It efficiently generates suction or blowing air, providing a pressure range of 165/120 mbar and capable of reaching 170/125 mbar.
Featuring a contactless, fast-rotating impeller, this blower is maintenance-free and ensures reliable performance. It incorporates two ring-shaped side channels on either side of the impeller. The air is drawn in through the inlet, accelerated inside the housing, and discharged through the outlet, fully pressurized. A single-stage design is suitable for higher volume flow, while a two-stage setup offers higher pressure differences.
This model is available in three units, making it a robust choice for those seeking efficient and maintenance-free air flow solutions for industrial uses.
Becker Oiless Pump(Regenerative Blower) Built 2008 #B2285187 Blower is powered by .0.75/0.90 Motor 50/60 cycle Inlet Cap. 120/145 m3/h + pressure 165/120 m/bar - pressure 170/125 m/bar. Regenerative blowers generate suction or blowing air for a wide variety of industrial applications. These turbo dynamic vacuum pumps contain a contact less, fast rotating impeller and are therefore wear and maintenance free.
On both sides of the impeller there are two ring-shaped separate side channels along with the housing. The rotating impeller pulls air in through the inlet side, accelerates the air or gas inside the housing, and then discharges it through the outlet side once it is fully pressurized.
A single-stage device with a high volume flow or a two-stage device with higher pressure differences is possible.
3 Available
