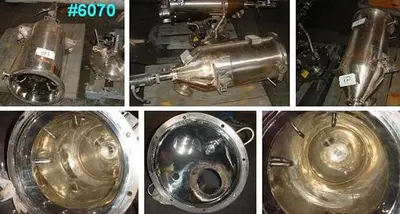

This used 15.9-gallon Lee Mix Tank is built from T-304 stainless steel, ensuring durability and resistance to corrosion. This model 15.9 CBT, produced in 1995, features a bolted dome top with a cone bottom design. The tank dimensions include a 16-inch internal diameter and a straight side height of 28.5 inches, with an additional approximately 11-inch cone bottom.
The tank includes both a 3.25-inch side bottom flanged outlet and a 1.5-inch bottom center outlet, equipped with a Waukesha Valve. The flanged inlets on the top are sized at 4 inches, 1 inch, and 5 inches, suitable for mixing applications. It is designed for atmospheric internal pressure and is suitable for use at up to 104 degrees Fahrenheit.
The unit includes a 0.5 HP Lightnin Vektor Series Drive, which is UL listed and operates on 230/460V power. The stainless mixing shaft is complemented by pitched turbine blades for effective mixing. Mounted with lugs, the installation is straightforward, and the tank appears to be in excellent condition. A CAD drawing is available upon request for more detailed visual specifications.
1 - used approx. 15.9 gallon Lee Mix Tank. T-304 stainless steel construction. Model 15.9 CBT. Serial #C2070S. Built 1995. Bolted dome top and cone bottom. 16 in. ID x 28 1/2 in. straight side + approx. 11 in. cone bottom. Approx. 3 1/4 in. side bottom flanged outlet and 1 1/2 in. bottom center outlet with Waukesha Valve (S/N 168501 95). Flanges on side of tank stamped 304 & 304L stainless steel. Atmospheric internal pressure, design temperature 104 deg. F. Top inlets include (1) 4 in., (1) 1 in. and (1) 5 in. flanged inlet for mixer. Lug mounted. With .5 HP Lightnin Vektor Series Drive, UL listed. 230/460V. Stainless mixing shaft with pitched turbine blades. Unit appears to be in excellent condition. DWG CAD drawing available on request.
