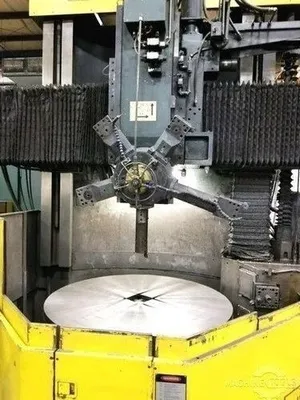

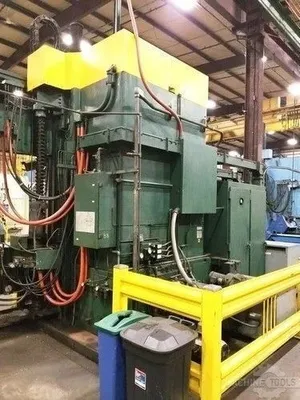

USED GIDDINGS & LEWIS B-8
Overview

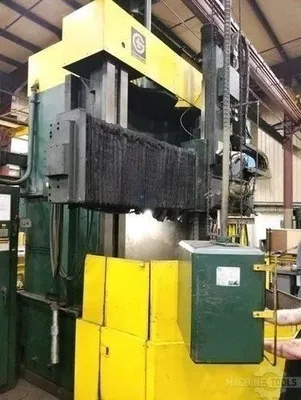

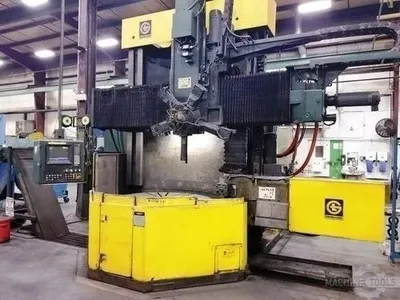

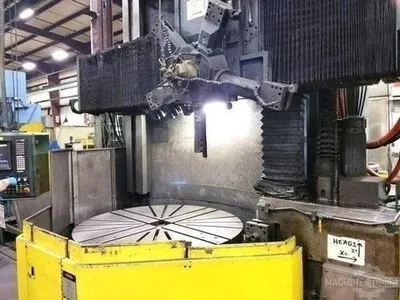

G & L Model Type B-8 CNC Vertical Turret Lathe with Fully Programmable Side Head
Specs
Max O.D. Swing - With Side Head - 66"
Max O.D. Swing - Above Side Head - 72"
Max Clearance From Facing Tool Tip In Pentagon To Top Of Table - 70"
Max Clearance From Facing Tool Tip In Pentagon To Top Of Jaws - 64"

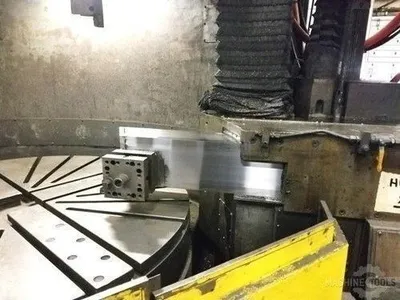

Chuck Type - (4) Independent Jaws
Table Speeds - 3 - 68 RPM; 12 - 272 RPM

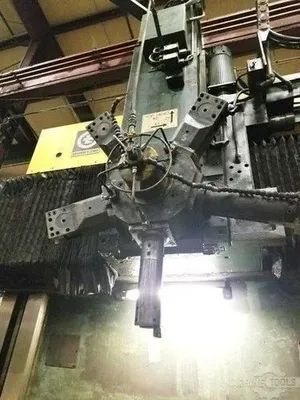

Rail Head: 5 Sided Turret
Sidehead - Square Turret
Travels:
Turret X Axis - Full Rail
Z Axis - 36"
Sidehead U Axis 57.62
W Axis 25.5
Feeds:
Rapid Traverse (All 4 Axes) 120- IPM
Cutting Feed Rate (All 4 Axes) .01" - .100"/REV
Ball Screw Size (All 4 Axes) - 3" Dia.
Electrics - 460/3/60
Drive Motor - 60hp
CNC Control - Fanuc 11TTF, 4 Axis Simultaneous Control
Equipped With

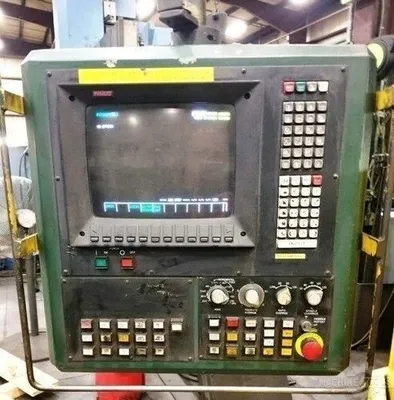

Fanuc 11-TT-F, 4-Axis Conversational FAPT CNC Control - 1989
Pendant Mount
Trabon Lube System
Ways - Hardened And Ground
Enductosyn Scales
Chip Conveyor
Accuracies - .0005"/Ft - .001" Full Stroke; Repeatability .0003"
All Fanuc Control & Electronics
