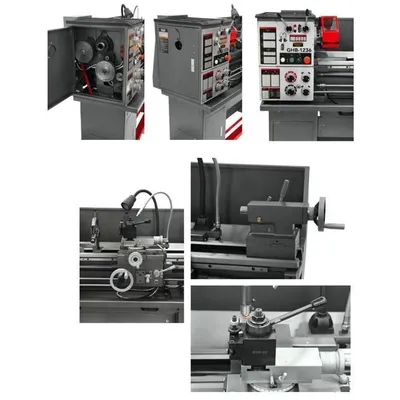

This new JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 12" | 304.8 mm |
| Distance Between Centers | 33" | 838.2 mm |
| Spindle Bore | 2" | 50.8 mm |
| Spindle Mount | D1-4 | D1-4 |
| Spindle Taper w/Sleeve | MT5 | MT5 |
| Range of Spindle Speeds | 75-1400 rpm | 75-1400 rpm |
| Number of Spindle Speeds | 9 | 9 |
| Motor | 2 hp | 1.5 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Dimensions | 66-1/64 x 29-1/2 x 59-13/16 in. | 66-1/64 x 29-1/2 x 59-13/16 in. |
| Weight | 1,210 lbs. | 1,210 lbs. |

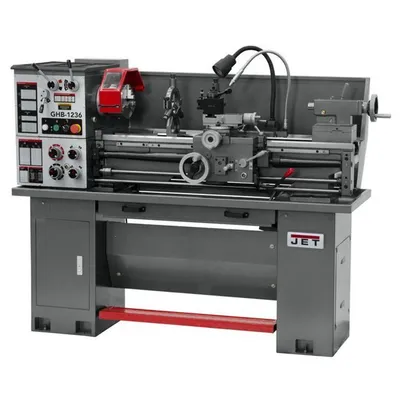

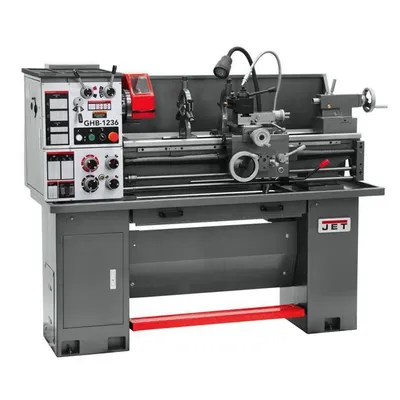

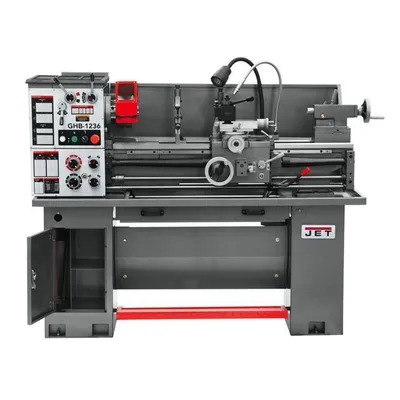

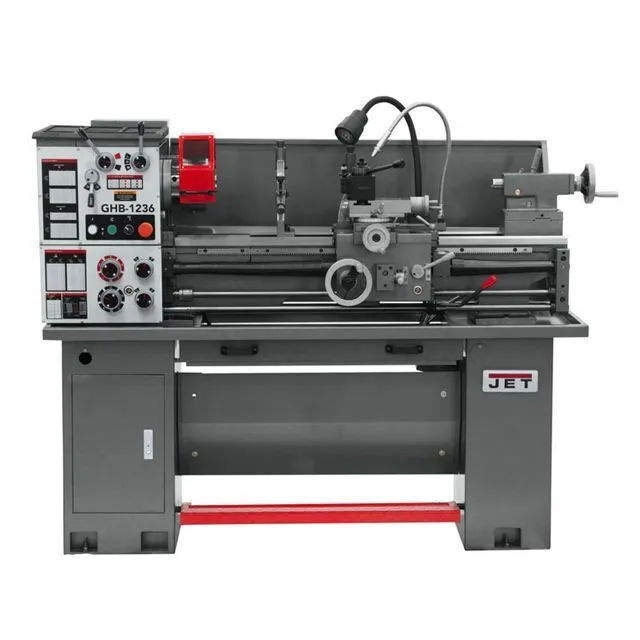

*Lathe shown with optional stand
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
