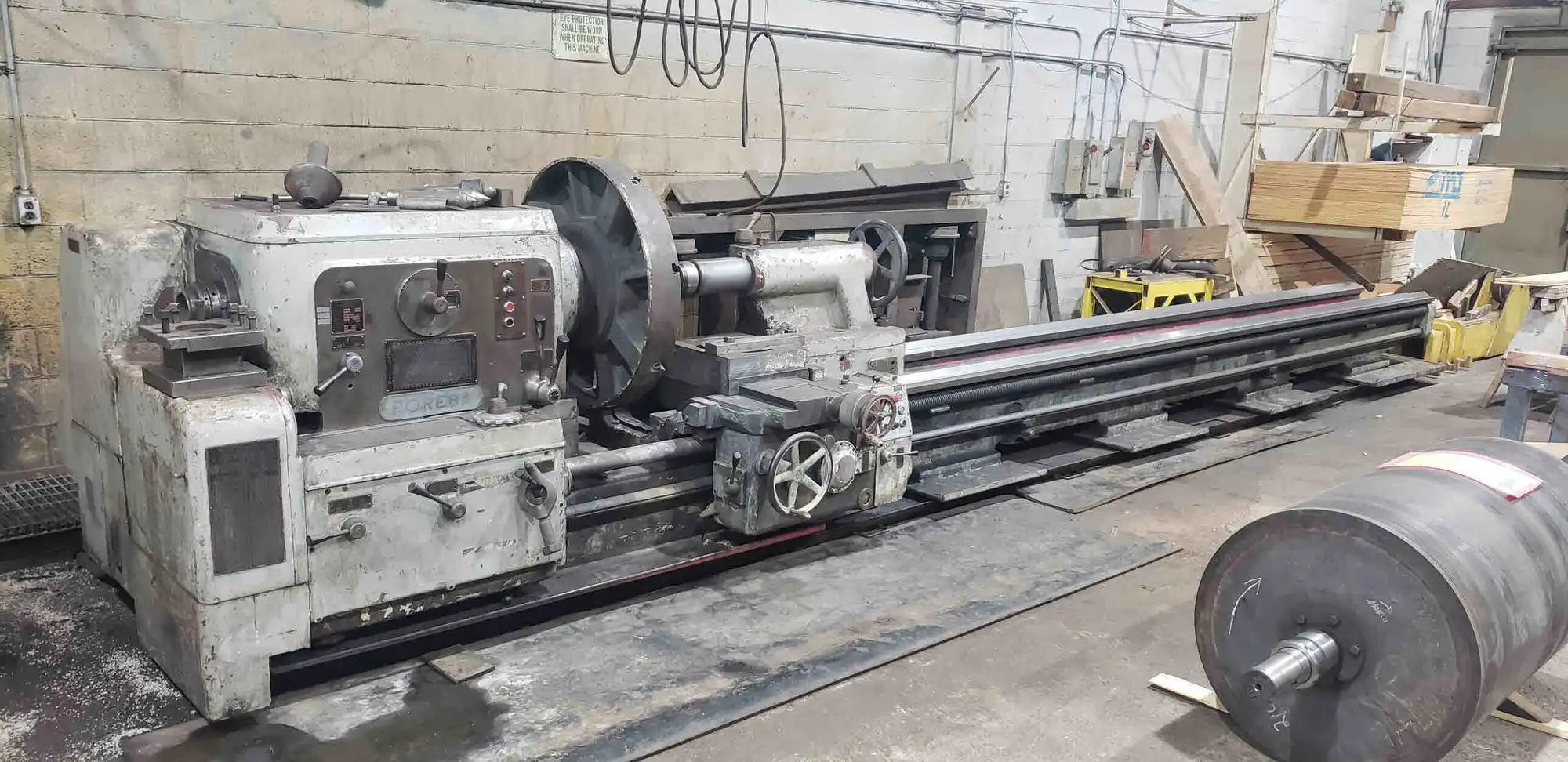

Model TR-100B, Poreba Heavy Duty Engine Lathe, 42" Swing, 49" Swing in Gap, 20'9" Centers, 630 RPM, 4.25" Spindle Bore, 36" 4-Jaw, (2) 25" Steadies, Inch/Metric
| Swing | 42" | 1,066.8 mm |
| Gap Swing | 49" | 1,244.6 mm |
| Centers | 249" | 6,324.6 mm |
| Spindle Bore | 4.25" | 107.95 mm |
| RPM | 630 RPM | 630 RPM |
| Power | 35 hp | 26.1 kW |
| Dimensions | 348” L x 89” W x 65” H | 348” L x 89” W x 65” H |
| Weight | 40,000 Lbs | 40,000 Lbs |
Swing Over Bed 42”
Swing In Gap 49”
Swing Over Carriage 27”
Between Center 249”
Width Of Bed 26”
Spindle Bore 4.25”
Spindle Speeds 6.3 - 630 RPM
Main Motor 35 HP
Electrics 550V/3PH/60HZ
Made In Poland
Approximate Weight 40,000 LBS
Approximate Electric Cabinet Dimension 38” L x 27” W x 62” H
Approximate Overall Dimensions 348” L x 89” W x 65” H
