This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 36.875" | 936.62 mm |
| Spindle Bore | 2" | 50.8 mm |
| Spindle Mount | D1-5 | D1-5 |
| Spindle Taper w/Sleeve | MT6 | MT6 |
| Range of Spindle Speeds | 70-1900 | 70-1900 |
| Number of Spindle Speeds | 8 | 8 |
| Motor | 2 hp | 1.5 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Dimensions | 76-13/32 x 29-29/32 x 59-13/16 in. | 76-13/32 x 29-29/32 x 59-13/16 in. |
| Weight | 1,753 lbs. | 1,753 lbs. |

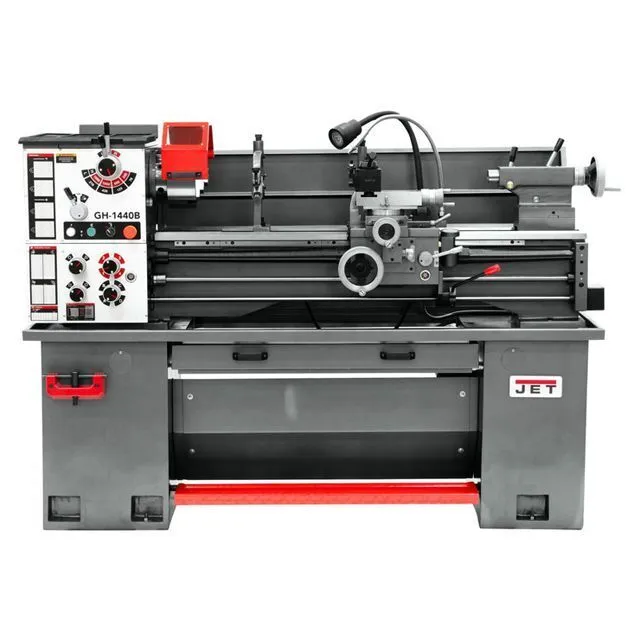

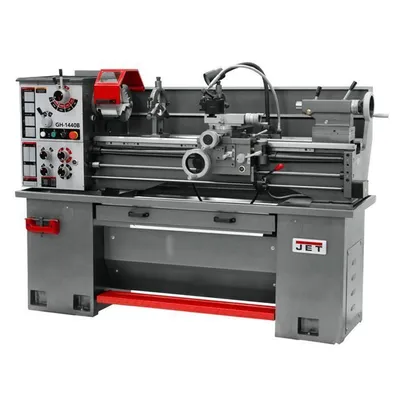

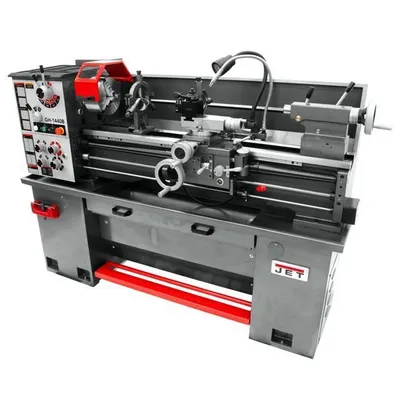

*Lathe shown with optional stand
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
