NEW JET GH-1440B

Florida, United States
Asking Price
USD $27,829.00
1 available
3,961Listings|13Followers
Overview
Bench Top Lathes

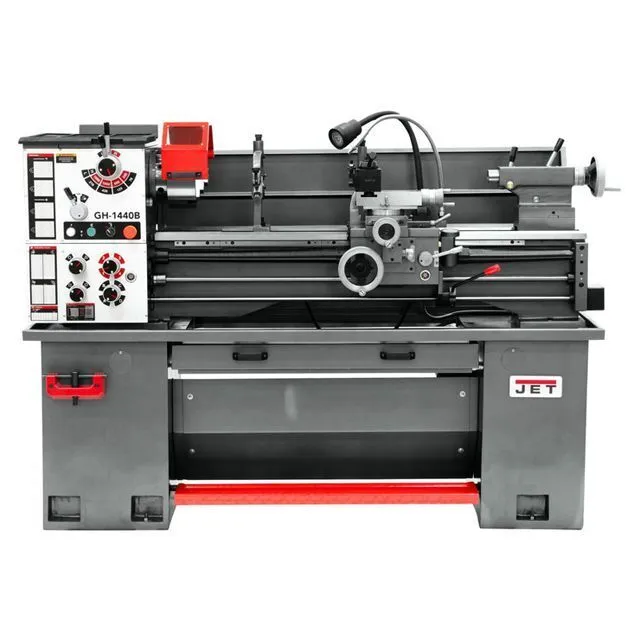

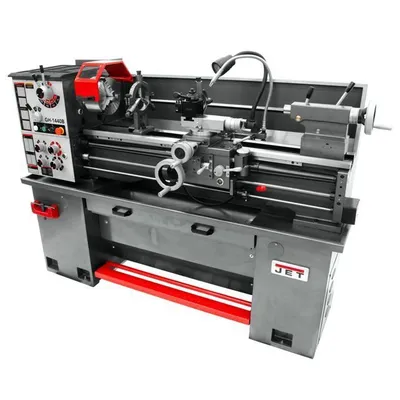

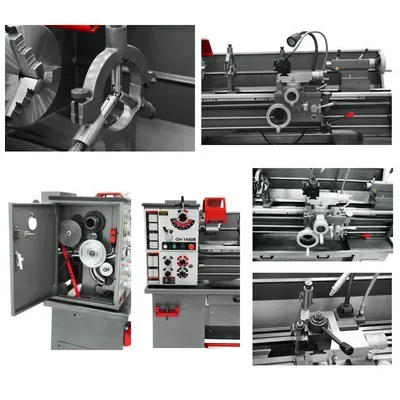

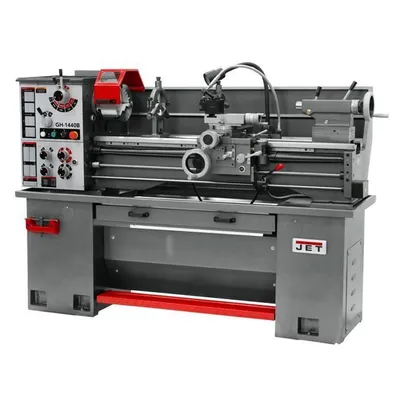

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Specs
Lathe Type
Geared Head
Geared Head
Swing Over Bed
14"
355.6 mm
Swing Over Cross Slide
8"
203.2 mm
Swing Through Gap
20"
508 mm
Length of Gap
8"
203.2 mm
Distance Between Centers
36.875"
936.62 mm
Spindle Bore
2"
50.8 mm
Spindle Mount
D1-5
D1-5
Width of Bed
7.32"
185.93 mm
Tailstock Spindle Travel
4"
101.6 mm
Taper in Tailstock Spindle
MT4
MT4
Cross Slide Travel
7"
177.8 mm
Compound Slide Travel
3.5"
88.9 mm
Carriage Travel
37-2/5 in.
37-2/5 in.
Spindle Taper w/Sleeve
MT6
MT6
Range of Spindle Speeds
70-1900 rpm
70-1900 rpm
Number of Spindle Speeds
8
8
Range of Metric Threads
0.4-7
0.4-7
Number of Metric Threads
26
26
Range of Inch Threads
4-56
4-56
Number of Inch Threads
34
34
Number of Longitudinal and Cross Feed Rates
32/32
32/32
Range of Longitudinal Feeds (IPR)
0.002 -0.0548
0.002 -0.0548
Range of Cross Feeds (IPR)
0.007 -0.0187
0.007 -0.0187
Follow Rest Capacity
0.31-2.16 in.
0.31-2.16 in.
Steady Rest Capacity
0.31-2.95 in.
0.31-2.95 in.
Maximum Tool Size
4/5 x 4/5 in.
4/5 x 4/5 in.
Motor
2 hp
1.5 kW
Phase
1
1
Voltage
230v
230v
Prewired
230v
230v
Dimensions
76-13/32 x 29-29/32 x 59-13/16 in. (w/stand)
76-13/32 x 29-29/32 x 59-13/16 in. (w/stand)
Weight
1,753 lbs.
1,753 lbs.

*Lathe shown with optional stand

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
