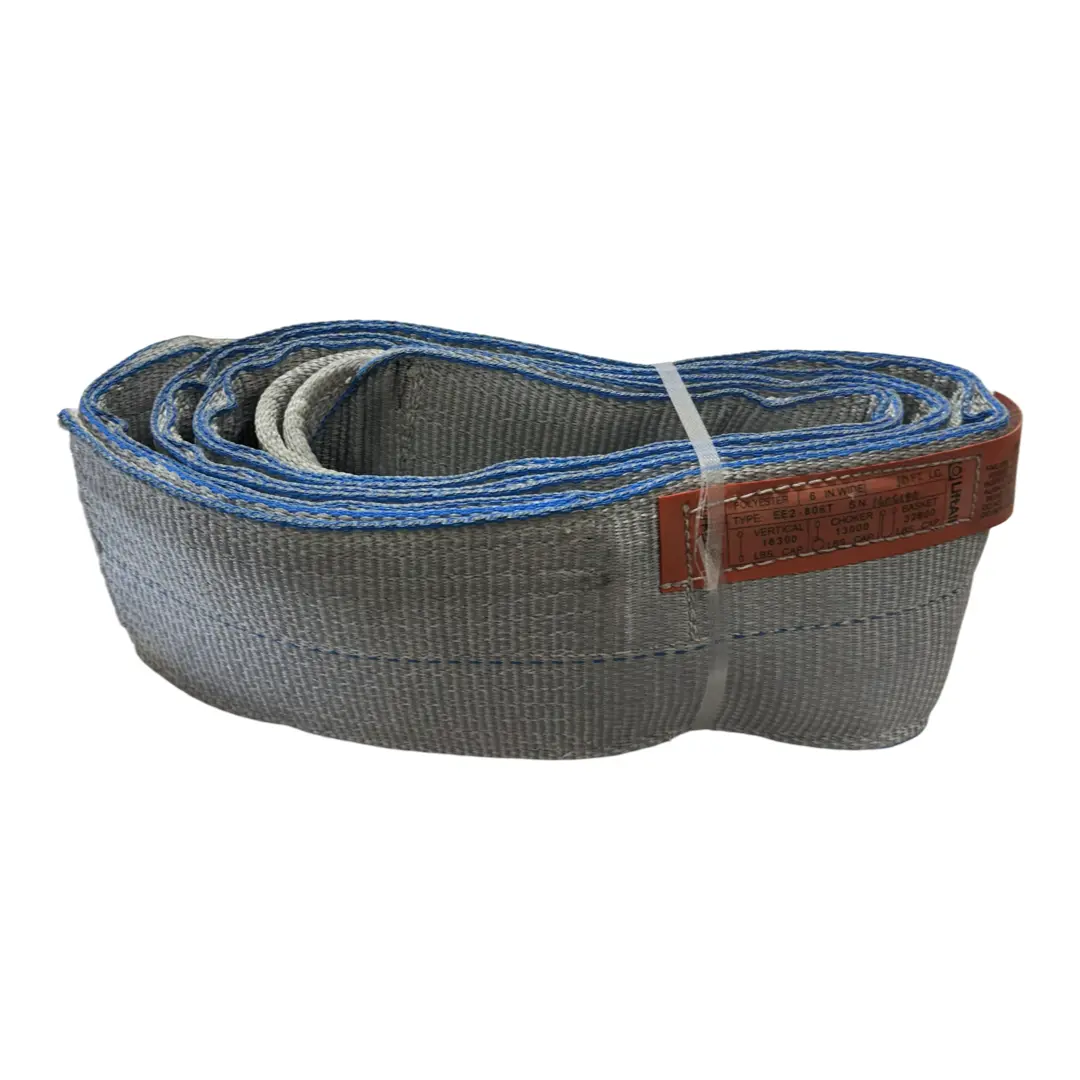

Lift-All Tuff-Edge Web Sling, Eye/Eye, 2-Ply, 6 in. Width, 10ft Long, Vertical Cap. 16,500 lbs
Overview
Description
Sling Type: Eye/Eye
Number of Plies: 2
Webbing: Tuff-Edge II
Thickness: 3/16 in.
Width: 6 in.
Single-Ply Capacity per in. of Width: 1,600 lbs.
Material: Polyester
Identifier: Blue center stripe. Blue yarn edge. Silver surface.
Thickness: 3/16 in.
Width: 6 in.
Single-Ply Capacity per in. of Width: 1,600 lbs.
Material: Polyester
Identifier: Blue center stripe. Blue yarn edge. Silver surface.
Rated Capacity: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Vertical: 16,500 lbs.
Choker: 13,200 lbs.
Vertical Basket: 33,000 lbs.
Vertical: 16,500 lbs.
Choker: 13,200 lbs.
Vertical Basket: 33,000 lbs.
Tuff-Edge II is 2X stronger after abrasion and has 2X better edge cut resistance.
For daily use under good to rugged lifting conditions. 2X more cut resistant.
Web treatment fights abrasion for additional sling life.
Special polymer coated edge yarns reduce edge cutting and abrasion.
Red core yarn warning system aids in the inspection process.
Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling.
Lift-All web slings meet or exceed OSHA, ASME B30.9, and WSTDA standards and regulations.
