USED CINCINNATI Hypro
Overview

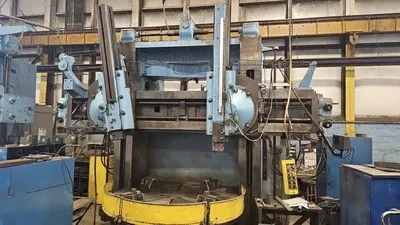

CINCINNATI Hypro Vertical Boring Mill available, featuring a 72.5" table, 79" swing, 63" work height, and 47 hp power. Equipped with 2-axis Heidenhain DRO, two swiveling ram heads, pendant control, 4-jaw chuck, and power rail elevation. Made in USA.
Specs
SPECIFICATIONS:
CHUCK DIAMETER 72.5"
MAXIMUM SWING 79"
HEIGHT UNDER RAIL 63"
VERTICAL TRAVEL OF RAM HEADS 50"
HORIZONTAL TRAVEL OF RAM HEADS 50"
MAX. HEIGHT UNDER RAM HEADS 60.5"
MIN. CENTER DISTANCE BETWEEN HEADS 20.62"
SPINDLE SPEEDS (VARIABLE) 1-135 RPM
FEEDS RATE (12) 0.010"-0.800"
MAIN MOTOR (DC) 35 KW
ELECTRICS 575V/3PH/60HZ
MADE IN USA
APPROXIMATE WEIGHT 65,000 LBS
APPROXIMATE OVERALL DIMENSIONS 180"L X 147"W X 146"H
Equipped With
EQUIPPED WITH:
2 AXIS HEIDENHAIN DIGITAL READOUT
2 SWIVELING RAM TYPE HEADS UP TO 60 DEGREES
PENDANT CONTROL
FOUR JAW CHUCK
POWER RAIL ELEVATION
VARIABLE SPEED
FLOOR STANDING
