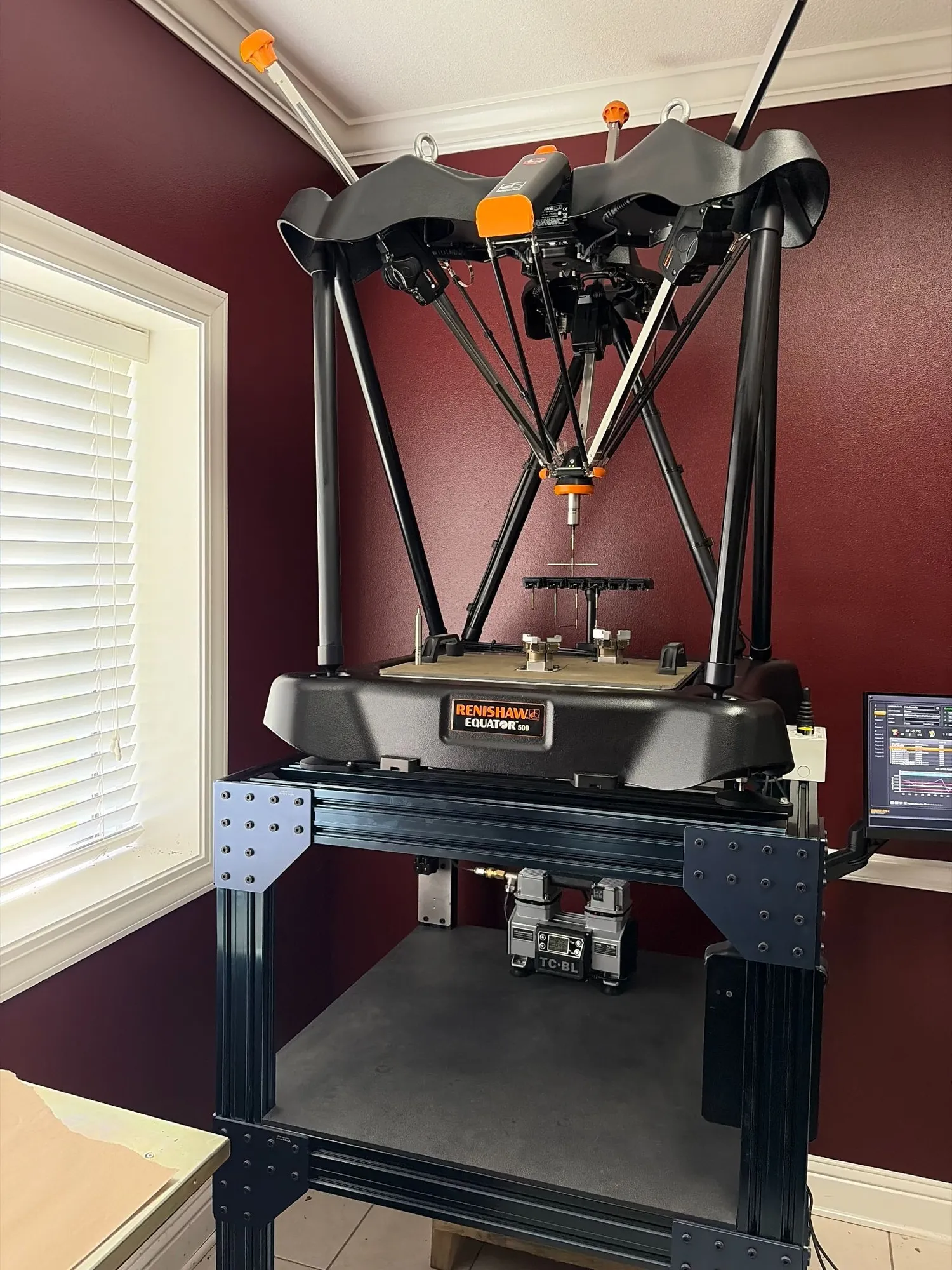

USED 2020 RENISHAW EQUATOR 500

Renishaw Equator 500 Comparator Gauge

The Equator 500 has a gauging volume of 500 mm diameter in the X/Y plane and
250 mm in Z when used with the SM25-2 scanning module.
This can be expanded to 400 mm in Z with the SM25-3 scanning module,
which allows styli up to 200 mm in length to reach many more features.
The base of Equator 500 supports workpiece and fixturing with a total weight limit of 100 kg.

• Working volume XY: Ø 500 mm, Z: 250 mm
• Comparison uncertainty: ±2 μm
• Operating temperature: +5 °C to +50 °C
• Maximum workpiece weight: 100 kg

Computer & Software
Probe Tips
All Available Manuals & Accessories

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
