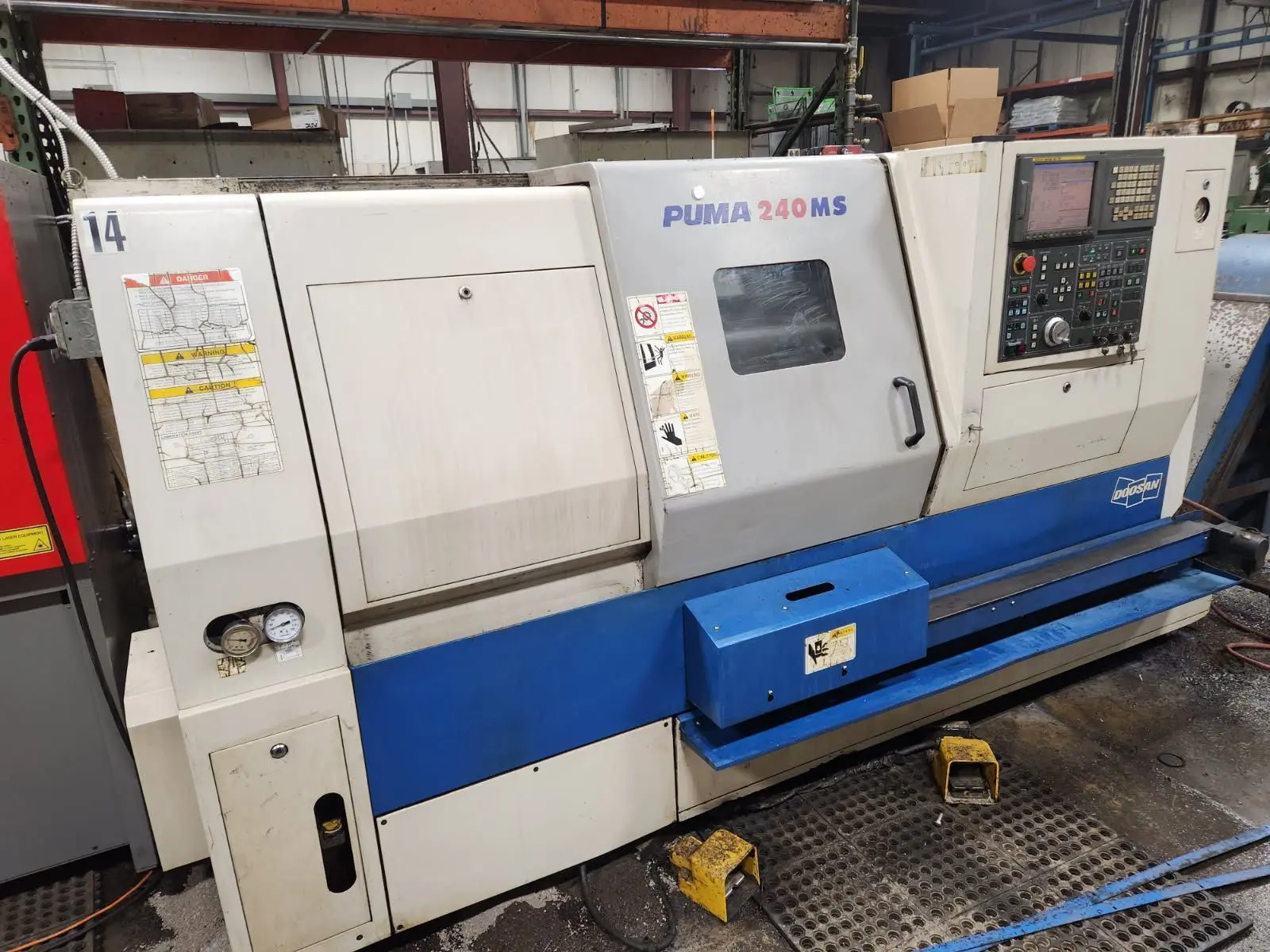

DOOSAN PUMA 240MS CNC Turning Center, New in 2007
Fanuc 18i TB Control.
Both 6" and 10" Chucks.
Tool Presetter.
Parts Catcher.
Chip Conveyor.
| Swing | 21.65" | 549.91 mm |
| Machining Length | 19.7" | 500.38 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.67" | 67.818 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 11.4" | 289.56 mm |
| Control | CNC (CNC (Fanuc 18i TB) | CNC (CNC (Fanuc 18i TB) |
| Weight | 10,800lbs | 10,800lbs |
General Specifications:
Control CNC (FANUC 18i TB CNC)
SWING OVER BED: 21.7″
TURNING DIAMETER, SHAFTER DIAMETER: 11.4″
MACHINING LENGTH: 19.7″
DISTANCE BETWEEN SPINDLES: 32.3″
CHUCK SIZE: 8″
SPINDLE NOSE: A2– 6
SPINDLE BORE DIAMETER: 1, 2 2.99″
SPINDLE BAR CAPACITY: 2.67"
SPINDLE SPEEDS: 1, 2 5000, 6000 RPM
SPINDLE HORSEPOWER: 1, 2 25, 7.5 HP
X – AXIS TRAVEL: 1, 2 8″
Z – AXIS TRAVEL: 1, 2 22.8″
C – AXIS TRAVEL: 1, 2 .001, .001
B – AXIS TRAVEL: SUB SPINDLE 22.8″
RAPID TRAVERSE RATES: X1, X2 945 IPM
RAPID TRAVERSE RATES: Z1, Z2 1181 IPM
RAPID TRAVERSE RATE: W AXIS 1181 IPM
TURRET CONFIGURATION: 12 STATIONS
TURRET ROTARY TOOL SPINDLE SPEED: 1, 2 5000 RPM
TURRET ROTARY TOOL HORSEPOWER: 1, 2 7.5 HP
MACHINE WEIGHT: 10,800LBS
Fanuc 18i TB Control
10” and 6” chucks
Tool setter
Parts Catcher
Chip Conveyor
