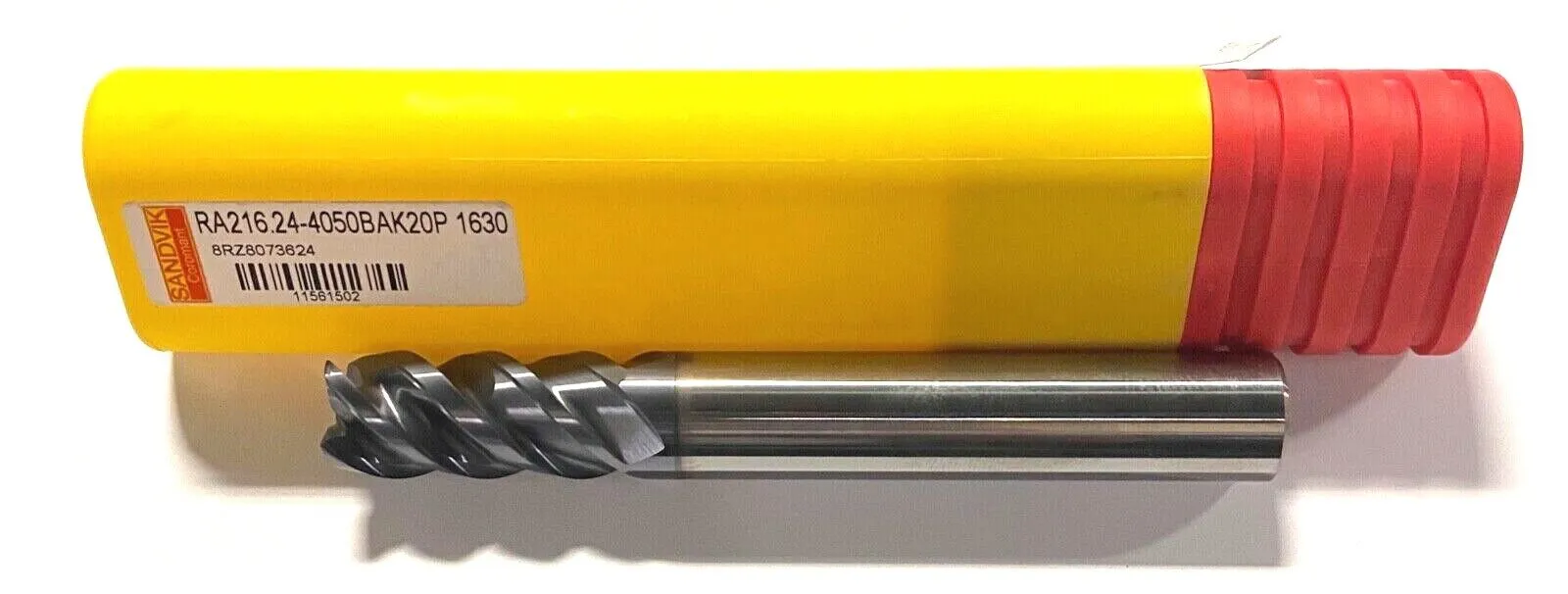

Sandvik Carbide End Mill 5/8" x 5/8" x 1-1/4" x 4-1/2" TiAlN 0.031" Radius 4FL

SANDVIK

SOLID CARBIDE END MILL

Cutting Diameter (DC): 5/8″
Shank Type: Round
Connection Diameter Machine Side (DCONMS): 5/8″
End Shape: Corner Radius
Depth of Cut Maximum (APMX): ‎1-1/4″
Applicable Material: Steel|Hi-Temp Alloys|Cast Iron|Stainless Steel
Overall Length (OAL): ‎4-1/2″
Corner Radius (RE): 0.031″
Cutting Edge Material: Carbide
Tool Type: Center Cut
Coating: TiAlN
Length Group: 2D
Flute Count (NOF): 4
Coolant Supply Property (CSP): External
Flute Helix Angle (FHA): CW|50 Degrees
Decimal Equivalent: 0.625″
