RAPIDKUT
USA MADE

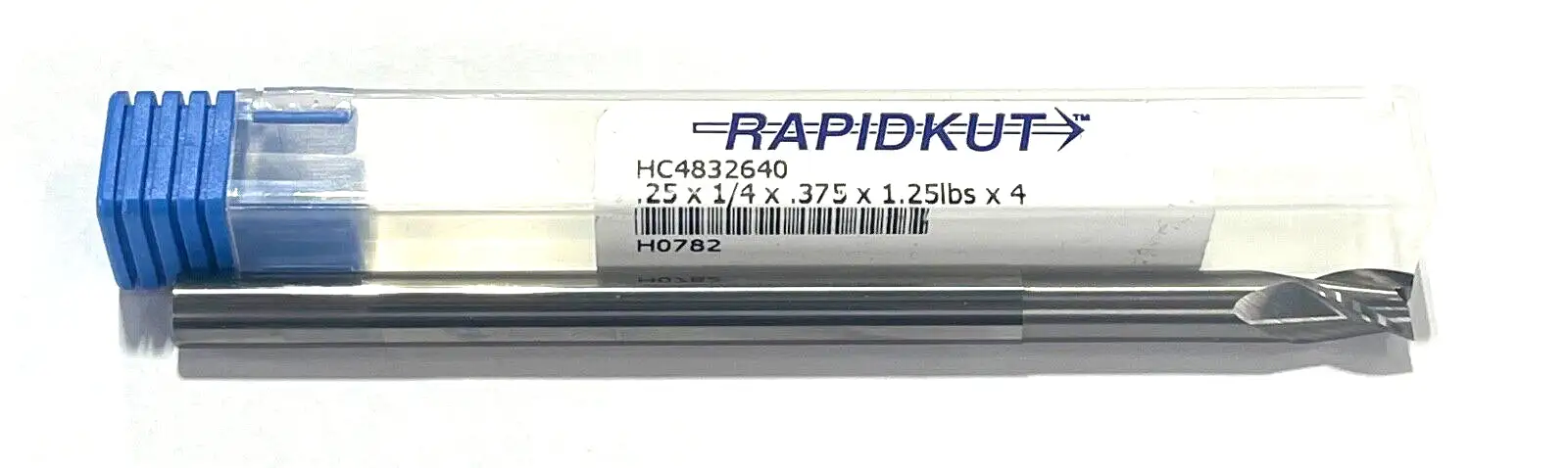

SOLID CARBIDE END MILL
Cutting Diameter (DC): 1/4″
End Shape: Square
Connection Diameter Machine Side (DCONMS): 1/4″
Usable Length (LU): 1-1/4″
Depth of Cut Maximum (APMX): 3/8″
Application: | Finishing |
Overall Length (OAL): 4″
Tool Type: Single End
Cutting Edge Material: Carbide
Coolant Supply Property (CSP): External
Coating: Uncoated
Style: Finishing
Flute Count (NOF): 3
Decimal Equivalent: 0.250″
Flute Helix Angle (FHA): 30 Degrees
Measurement Type: Inch
Shank Type: Round
Series/List #: 5916
