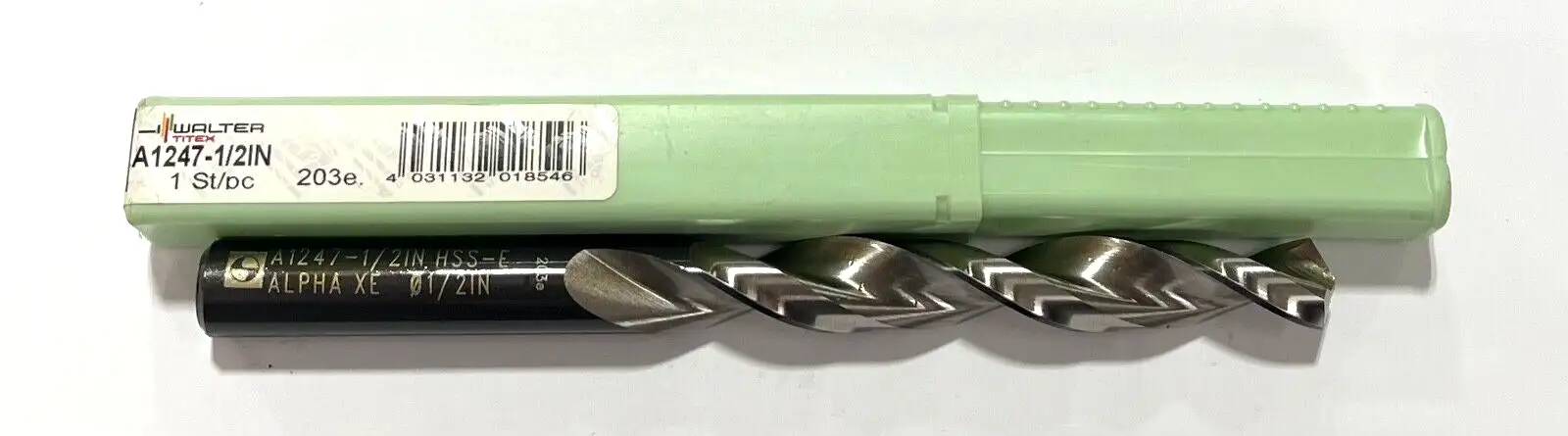

Walter-Titex 1/2" Cobalt Drill Bit Jobber Length A1247-1/2
Overview
Description
WALTER-TITEX
HSS-E JOBBER LENGTH DRILL
Brand
WALTER TITEX
Drill Bit Size
1/2 in
Decimal Equivalent
0.5
Measurement System
Fractional Inch
Material - Machining
High Speed Steel
Finish - Machining
Bright (Uncoated)
Drill Bit Point Angle
130 °
Drill Bit Point Type
Conical Point
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Number of Flutes
2
Flute Length
101.00 mm
Cutting Direction
Right Hand
Shank Type - Machining
Straight
Shank Length
50.00 mm
Overall Length
151.00 mm
Depth:Dia. Ratio
8xD
Drill Length Class
Jobber Length
Drill Point Length
2.96mm
Standards
DIN 338
Drill Diameter Tolerance
H8
Sheeter Drill
No
Material Grade - Machining
General Purpose
Primary Material Application
Aluminum; Brass; Bronze; Cast Iron; Copper; Nickel; Stainless Steel; Steel; Titanium
Primary Material Application ISO Code
K; M; N; P; S
Secondary Material Application
Composite
Secondary Material Application ISO Code
O
Series
Alpha X-E
Maximum Drilling Depth
101 mm
UNSPSC
27112801
Country of Origin
France (subject to change)
