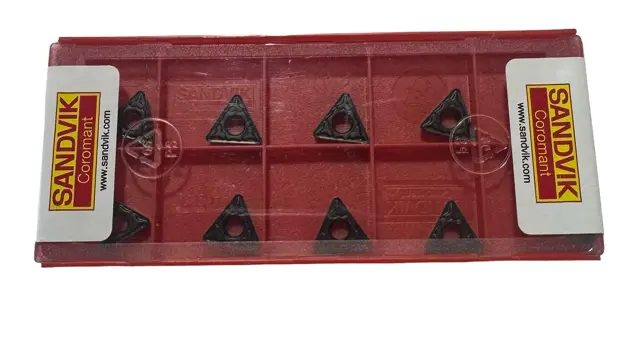

Description: Turning Insert; Triangle x 1/4" IC x 0.032" Corner Radius ; 3210 ; Carbide ; | Al2O3 | TiN | TiCN |
Brand: Sandvik Coromant
Chip Breaker Type: KM
Clearance Angle Major An: 7 Degrees
Coating: TiCN|Al2O3|TiN
Corner Radius Re: 0.032"
Cutting Direction Hand: Neutral
Cutting Edge Material: Carbide
Fixing Hole Diameter D1: 0.11"
Grade: 3210
Inscribed Circle Diameter Ic: 1/4"
Insert Size: 222
Insert Style: TCMT
Insert Thickness S: 1/8"
Quantity: 10
Shape: Triangle
