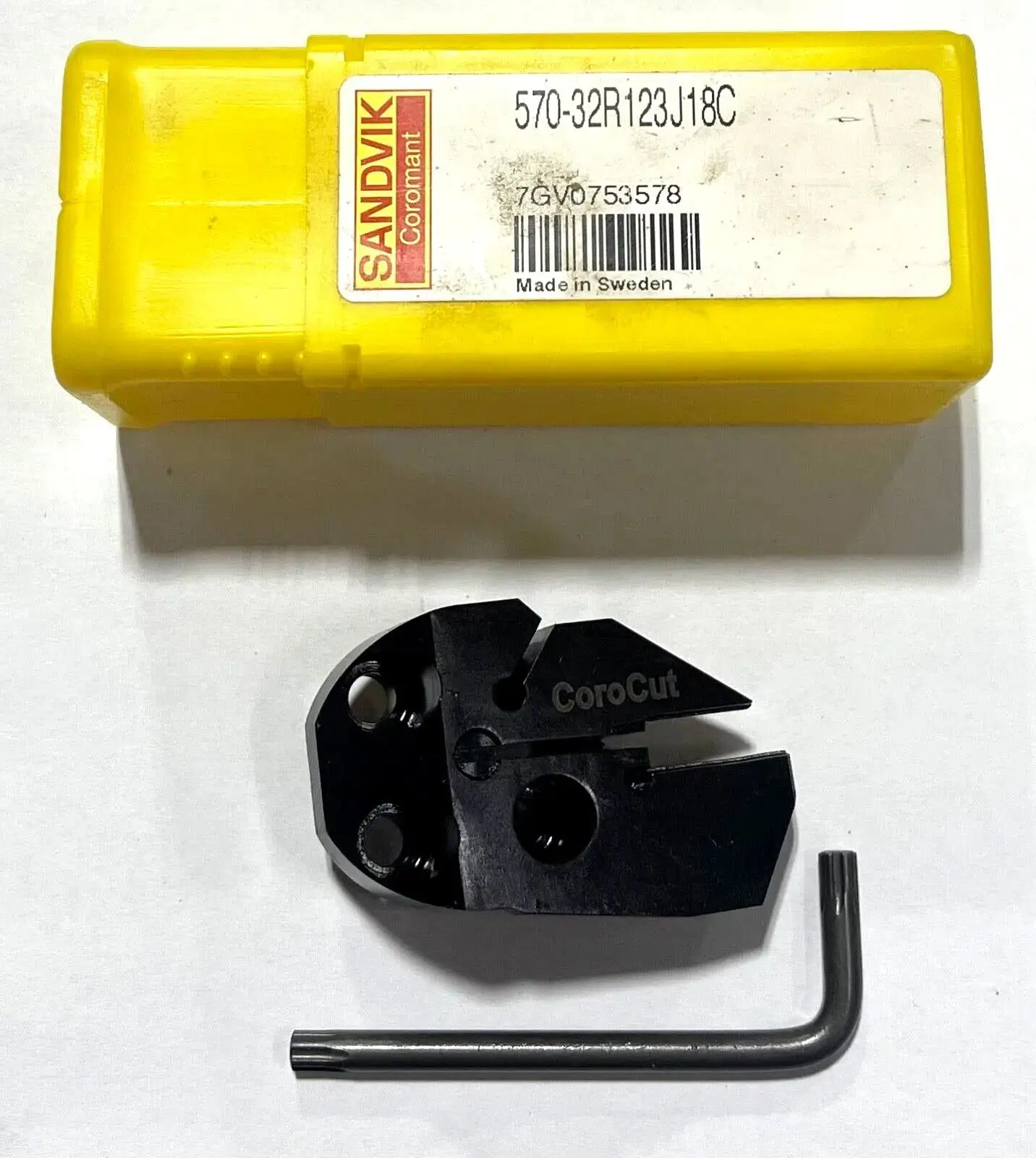

Sandvik 570-32R123J18C CoroCut® 1-2 Head for Grooving 5764724
Overview
Description
SANDVIK
Cutting depth maximum(CDX)
0.7087 inch
Clamping type code(MTP)
C
Part 2 of cutting item interface identifiers(CUTINT_MASTER)
CoroCut 2 -size J (N123J2-CM)
Insert seat size code(SSC)
J
Adaptive interface machine direction(ADINTMS)
SL head (screw mounted) -size 32
Minimum bore diameter(DMIN1)
3.4646 inch
Workpiece side body angle(BAWS)
90 deg
Maximum overhang(OHX)
0.6102 inch
Hand(HAND)
R
Coolant entry style code(CNSC)
1: axial concentric entry
Coolant exit style code(CXSC)
5: axial inclined exit with nozzle, adjustable
Coolant pressure(CP)
580.151 lbf/in2
Connection diameter(DCONMS)
1.2598 inch
Functional length(LF)
0.7087 inch
Functional width(WF)
1.6181 inch
Functional height(HF)
0 inch
Torque(TQ)
2.2127 ft lbf
Weight of item(WT)
0.3042 lb
Release date(ValFrom20)
8/14/05
Release pack id(RELEASEPACK)
05.2
