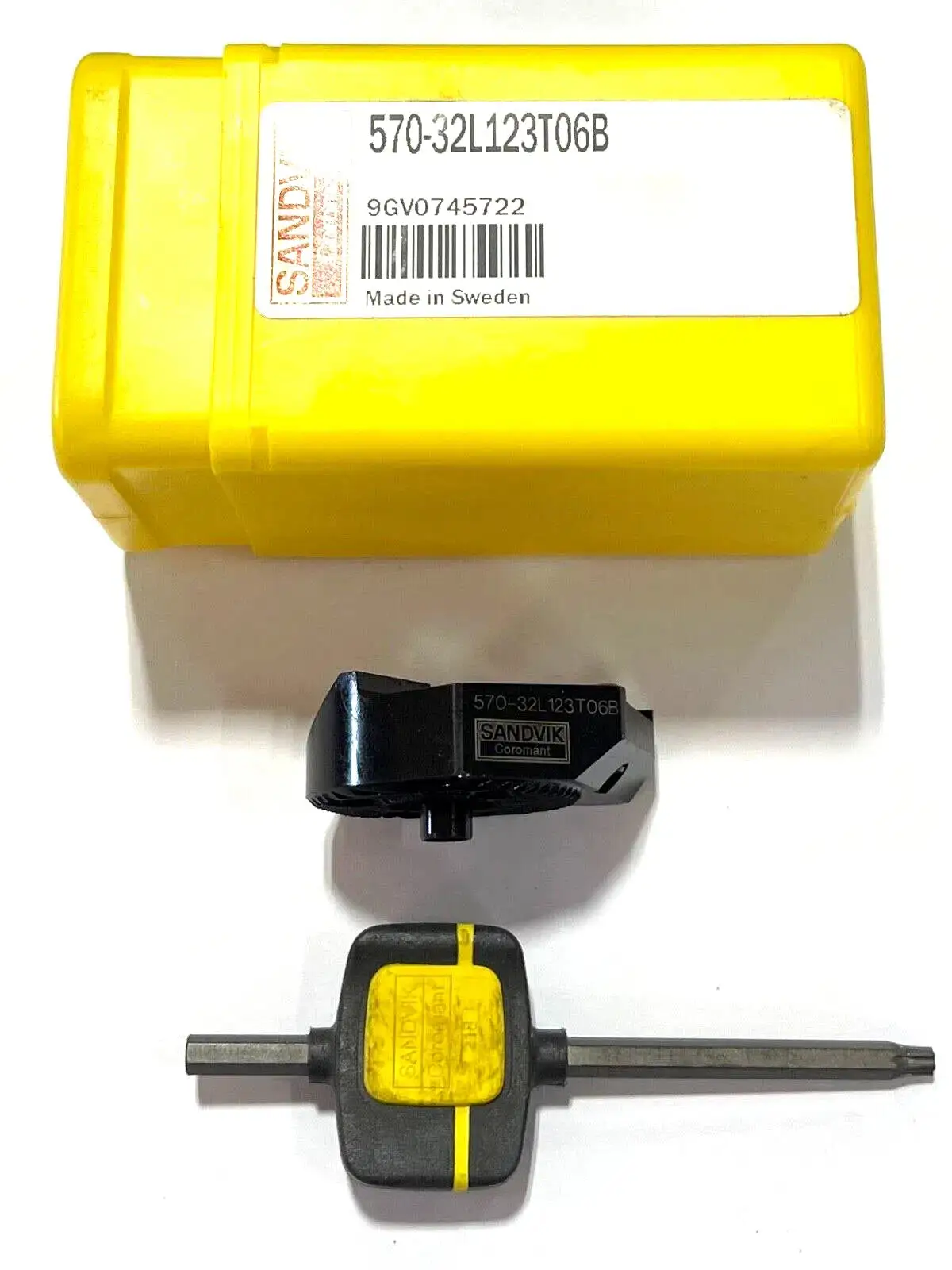

Sandvik 570-32L123T06B CoroCut 3 Head For Grooving 5764587
Overview
Description
SANDVIK
Product data
Cutting depth maximum(CDX)
0.25 inch
Clamping type code(MTP)
S
Part 2 of cutting item interface identifiers(CUTINT_MASTER)
CoroCut 3 -style T (N123T3-CM)
Insert seat size code(SSC)
T
Adaptive interface machine direction(ADINTMS)
SL head (screw mounted) -size 32
Workpiece side body angle(BAWS)
90 deg
Maximum overhang(OHX)
0.5512 inch
Hand(HAND)
L
Coolant entry style code(CNSC)
1: axial concentric entry
Coolant exit style code(CXSC)
2: radial exit
Coolant pressure(CP)
145.0377 lbf/in2
Connection diameter machine side(DCONMS)
1.2598 inch
Functional length(LF)
0.5512 inch
Functional width(WF)
1.122 inch
Functional height(HF)
0 inch
Torque(TQ)
2.2127 ft lbf
Weight of item(WT)
0.2257 lb
Release date(ValFrom20)
9/9/07
Release pack id(RELEASEPACK)
07.2
