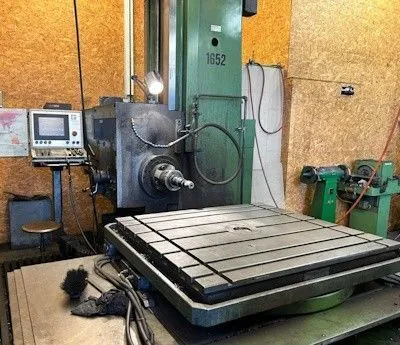

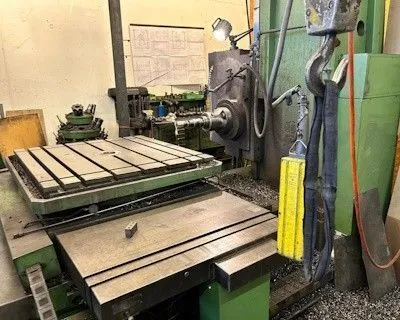

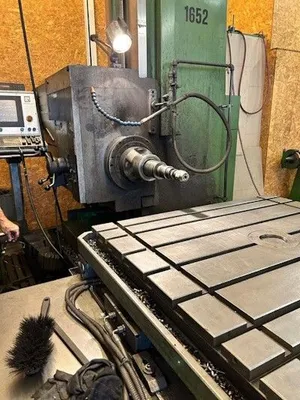

TOS VARNSDORF WH-10 Horizontal Boring Mill, 1991 model, features Heidenhain TNC 355 control, 4" spindle, 50" x-horiz table travel, 20 HP power, 1,500 RPM spindle speed, table size 45"x40", 29,550 lbs weight. Includes 20 ISO 50 tool holders.
| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 50" | 1,270 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Table-W | 45" | 1,143 mm |
| Table-L | 40" | 1,016 mm |
| Spindle Tvl. | 24" | 609.6 mm |
| Control | CNC | CNC |
| Weight | 29,550 Lbs. | 29,550 Lbs. |
Specifications:

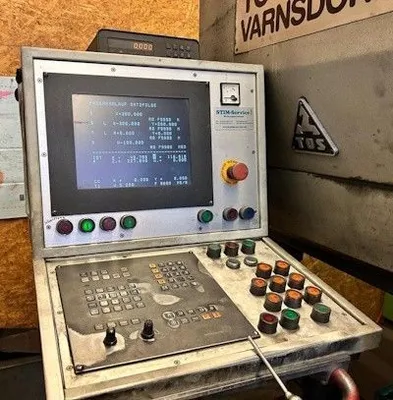

Control: HEIDENHAIN TNC 355 for 4 axes (X,Y,Z,W)
Spindle diameter: 3.94”
Spindle attachment: ISO 50 With Automatic Tool Clamping
Spindle speed: 10-1500 rpm
Spindle power: 20 HP
Table size: 45” x 40”
Table load: 6,600 Lbs.
Travels:
Longitudinal 50”
Cross 37.4”
Vertical 44”
Spindle: 24”
Weight: 29,550 Lbs.
Equipped With:
Heidenhain Dro For B Axe (Round Table)
20 Tool Holders ISO 50
2 Angle Plates 44” x 12.6” x 23.6”
Instruction Manuals
