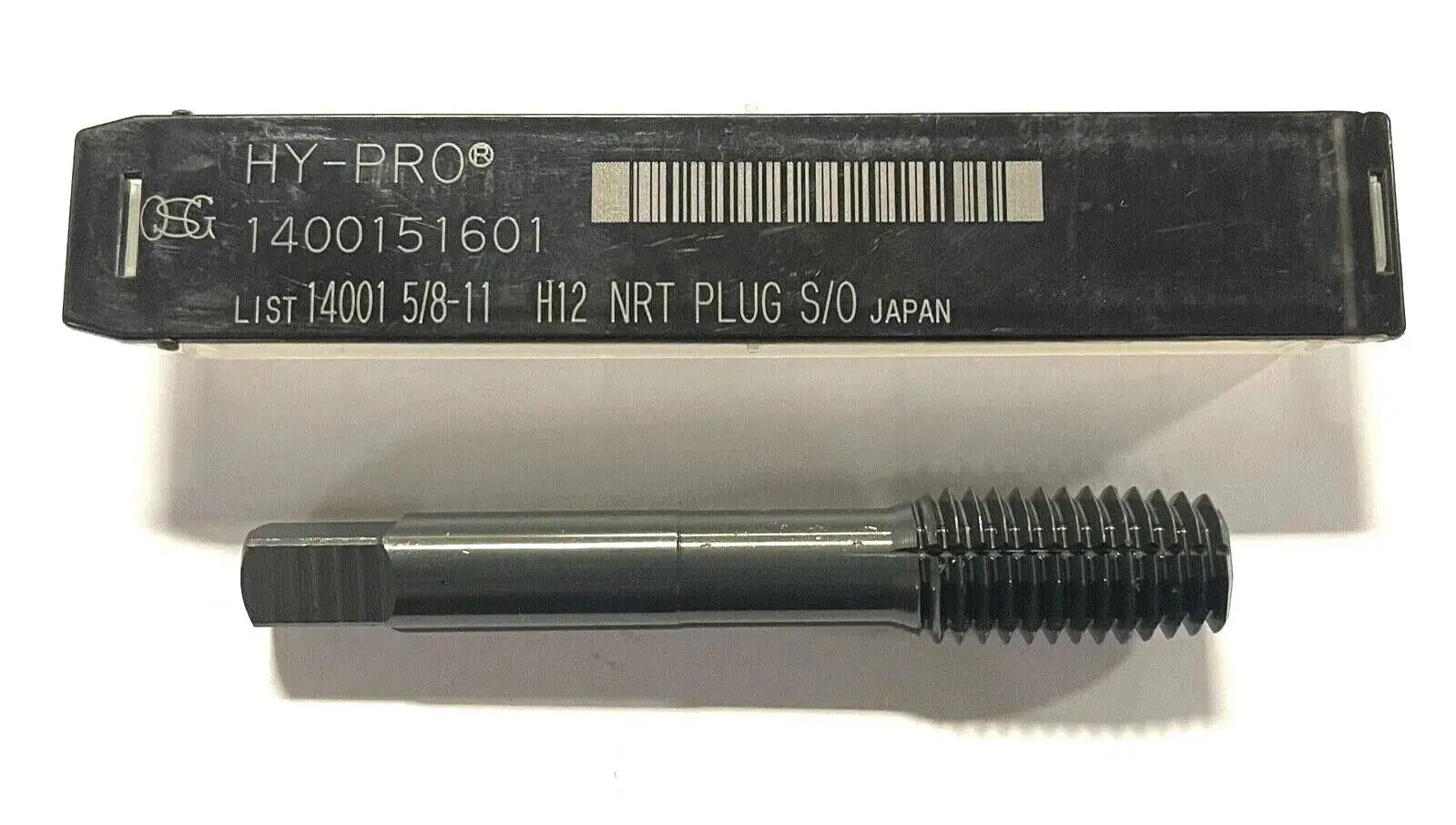

OSG 5/8-11 Tap Cobalt Thread Forming Plug Tap H12 Black Oxide 1400151601

OSG

COBALT THREAD FORMING TAP

Tap Material: Cobalt
Thread Direction: Right Hand
Tap Chamfer: Plug
Tap Size: 5/8"
Pitch Diameter Limit: H12
Tap Dimension Type: Inch
Thread Length: 1-13/16"
Tap Style: Thread Forming
Tap Thread Size: 5/8"-11
Item: Thread Forming Tap
Overall Length: 3-13/16"
Shank Dia.: 0.480"
Number of Flutes: 0
Tap Finish: Oxide
Tap Thread Type: UNC
Tap Grouping: Tap
Number of Pieces: 1
Standards: ANSI
List Number: 14001
Cutting Direction - Machining: Right Hand
Series: 14001
Secondary Material Application ISO Code: H, M, P
Thread Limit: H12
Features: Performance Form Taps For Materials Less Than 32Rc
Secondary Material Application: Hardened Steel, Stainless Steel, Steel
Square Size: 0.3600 in
Primary Material Application: Aluminum, Brass, Bronze, Copper, Steel
55% Thread Drill Size: 15.00 mm
Spiral Direction: Neutral
Coolant Fed: Non-Coolant Through
Material Grade - Machining: 14001
Primary Material Application ISO Code: N, P
Shank Length: 1 21/32 in
Thread Size: 5/8"-11
Threads per Inch: 11
Thread Standard: UNC
75% Thread Drill Size: 37/64 in
Extended Neck: No
65% Thread Drill Size: 14.80 mm
Country of Origin (subject to change): Japan
