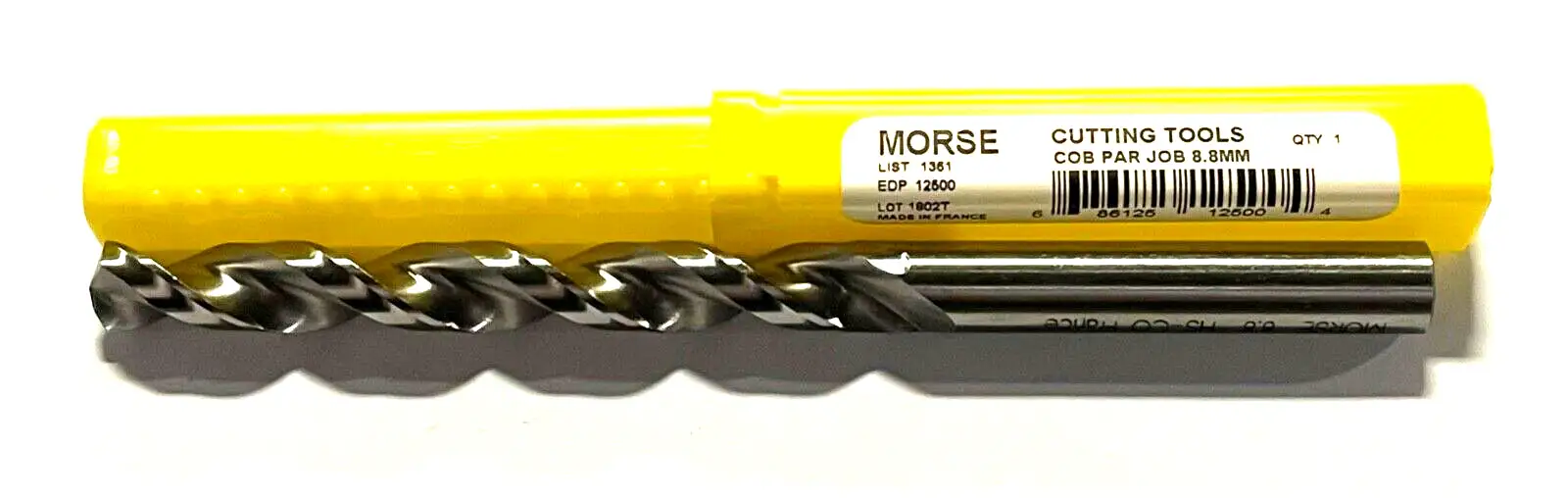

Morse 8.8mm Cobalt Drill Bit High Performance Parabolic Flute Jobber Length

Product FeaturesMORSE

HIGH PERFORMANCE COBALT JOBBER LENGTH DRILL

Drill Bit Size / Cutting Diameter (DC)
8.8 mm
Cutting Depth
81 mm
Decimal Equivalent
0.3465″
Flute Length
81 mm
Drill Bit Size / Cutting Diameter (DC) - Metric
8.8 mm
Point Shape
Self-Centering
Measurement Type
Metric
Shank Type
Straight
Angle
130 Degrees
Connection Diameter Machine Side (DCONMS)
8.8 mm
Cutting Edge Material
Cobalt M35
Shape
HPC High Performance Drills
Flute Type
Wide Land Parabolic
Tool Type
HPC High Performance Drills
Coating
Bright
Series/List #
1361
Coolant Supply Property (CSP)
External
Overall Length (OAL)
125 mm
Product Features
Remarks
• Jobber Length HPC Cobalt High Performance Wide Land Parabolic Flute Drills• Wide Land Parabolic Flute Drills• The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills• An Enhanced Flute Design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity• Premium M35 Cobalt Steel• Offers increased hardness, toughness, wear resistance and heat resistance• Highly recommended for drilling tough, high tensile strength materials up to 35 Rc hardness and materials that generate higher cutting temperatures• Applications include high alloy steels, ferrous castings, titanium, inconel, stainless steels and other difficult-to-drill materials• Select the shortest drill possible for your application for maximum rigidity, hole accuracy and economy
