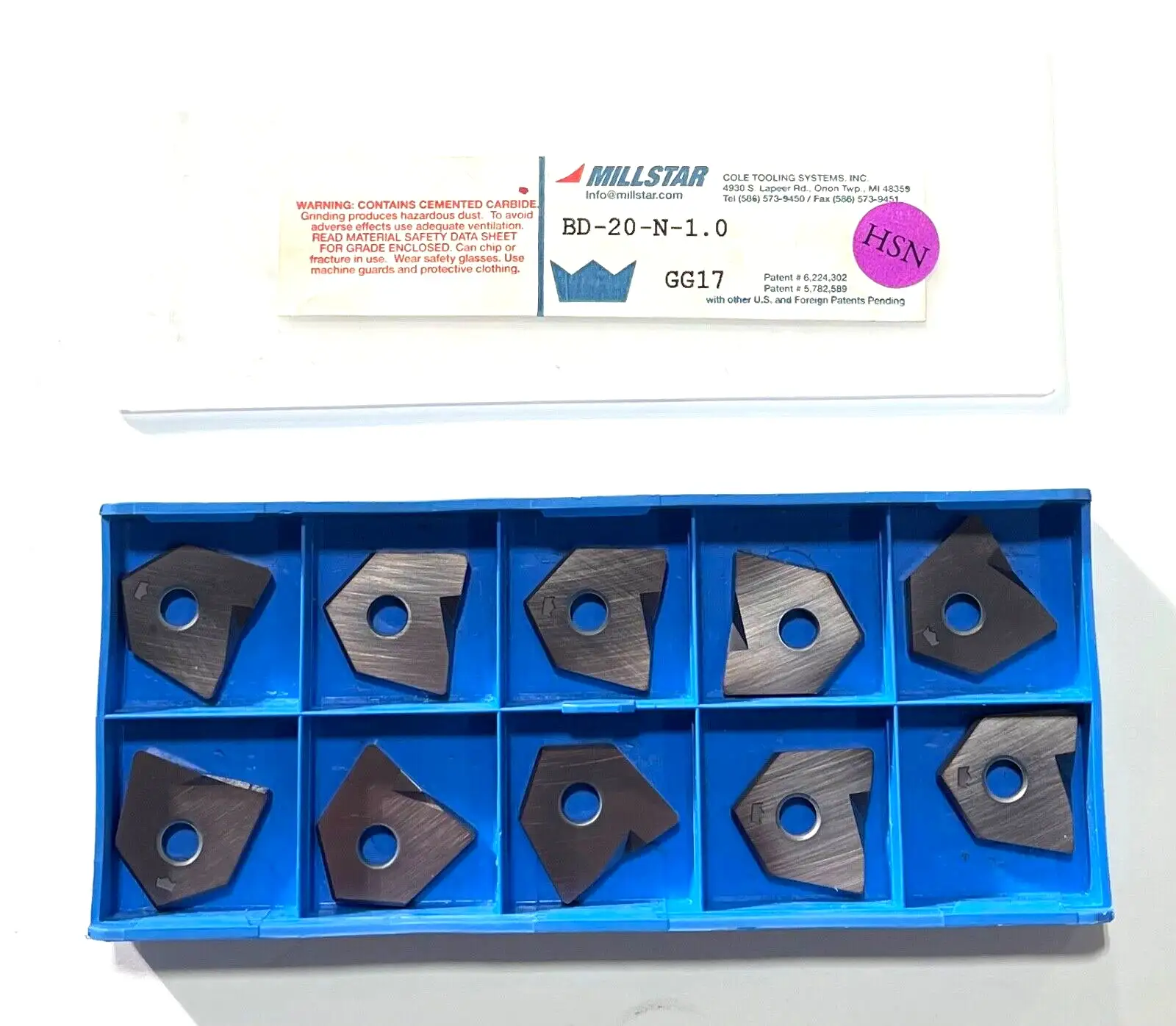

Millstar Carbide Insert BD-20-N-1.0 HSN Milling Inserts Bull Nose Nano Coat 10pk

MILLSTAR

USA MADE

CARBIDE MILLING INSERTS

10 PACK

Insert Style
BD
Insert Size
20
Insert Material
Solid Carbide
Insert Shape
Bull Nose
Manufacturer Grade
HSN
Corner Radius (mm)
1.00
Number Of Cutting Edges
1
Thickness (mm)
4.00
Coating/Finish
Nano
Relief Angle
7.00
Insert Size Code
20
Material Grade
C3; C4; C5; C6; C1; C2
Inscribed Circle (mm)
20.00
Length Range (Decimal Inch)
0.5000 to 0.6000
Insert Hand
Right Hand
Series
BD-N
Coating Process
PVD
Rake
Positive
Primary Workpiece Material
Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code
P; S; K; M
Ansi Code
BD-20-N-1.0
Iso Code
BD-20-N-1.0
Standards
ISO; ANSI
Rake Angle
0
Cutting Edge Style
Ground
Manufacturers Catalog Number
BD-20-N-1.0
Cutter Series Compatibility
CYF; CYFMK; TAF; CBCYF
Chip Breaker
None
UNSPSC Code
23291601
Material Application
Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Insert Holding Method
Screw
Single or Double Sided Insert
Double
Included Angle Degree
83
Length
13.35
Width (Decimal Inch - 4 Decimals)
0.7874
Width (Mm - 2 Decimals)
20.00
Multi-Use Tool
Yes
