Or as low as $88.12 USD/month over 60 months

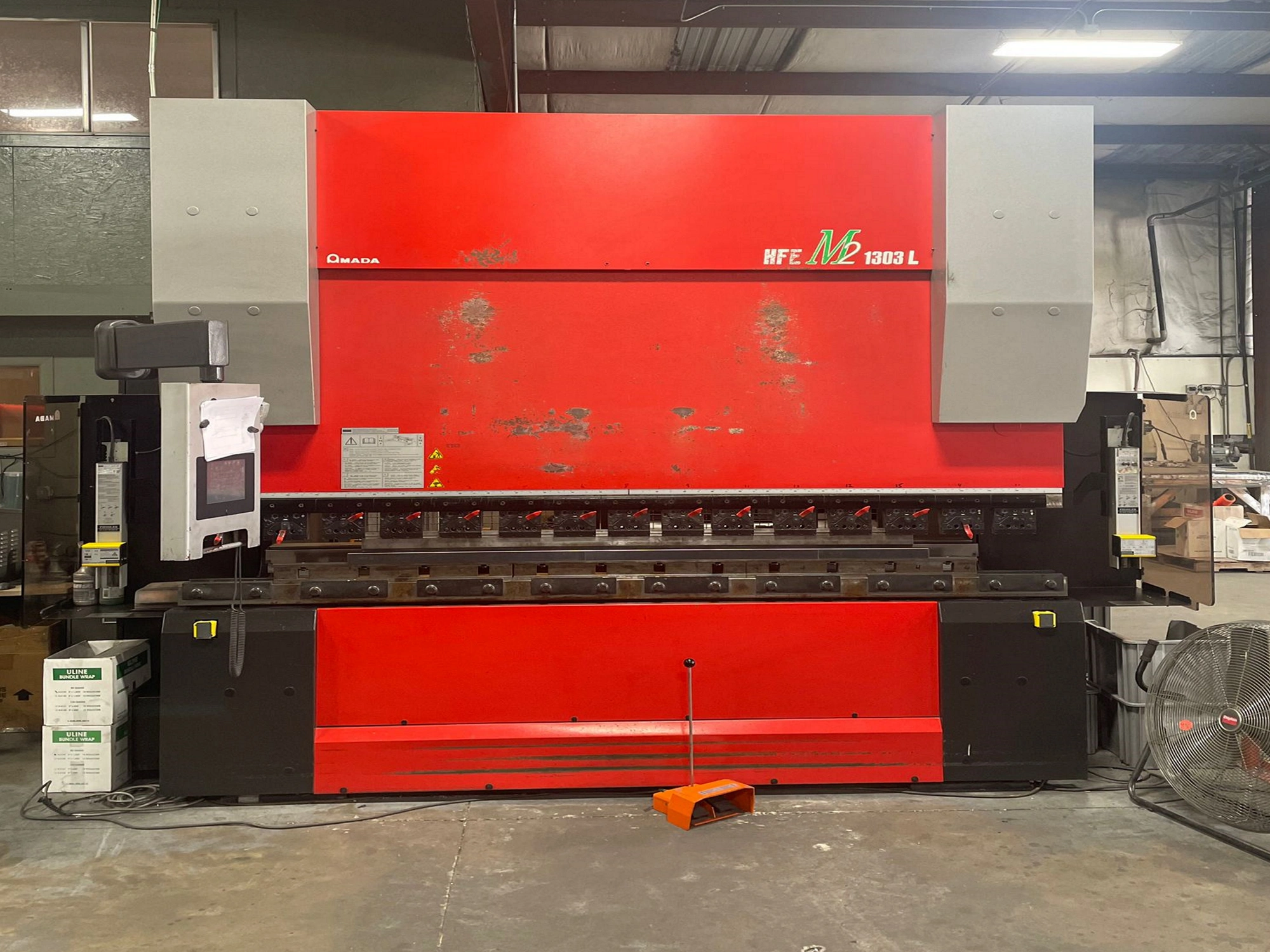

THIS 2012 AMADA HFEM2-1303 CNC PRESS BRAKE IS DESIGNED FOR HIGH PRECISION AND EFFICIENCY, MAKING IT A GREAT CHOICE FOR VARIOUS BENDING AND FORMING TASKS. Features 146-ton capacity, 123" bending length, 8 programmable axes, and AMADA AB Pad Control. Includes 5-axis back gauge, electronic foot pedal, and quick clamp punch holders. Used, ready for your needs.
| Tonnage | 146 T | 132.449 t |
| Type | HYD | HYD |
| OA (Overall) Length | 123" | 3,124.2 mm |
| Between Housings | 106" | 2,692.4 mm |
| Stroke | 7.8" | 198.12 mm |
| # Axis | 8 | 8 |
| Control | CNC (AMADA AB PAD CONTROL) | CNC (AMADA AB PAD CONTROL) |
CAPACITY: 146 TON
OVERALL BENDING LENGTH: 123"
DIST. BTWN. END FRAMES: 106"
WORKING HEIGHT OF BED: 38"
LENGTH OF STROKE: 7.8"
OPEN HEIGHT: 18.5"
THROAT DEPTH: 16.5"
NO. OF PROGRAMMABLE AXES: 8
SPEEDS:
- FAST APPROACH: 3.94 IPS
- SLOW BEND: 0.39 IPS
- RETURN: 3.94" IPS
OVERALL DIMENSIONS: 178.5"(L) x 103.2"(W) x 111"(H)
APPROX. MACHINE WEIGHT: 17,968 LBS
AMADA AB PAD CONTROL
5-AXIS BACK GAUGE (X1, X2, R, Z1, Z2)
CROWNING
ELECTRONIC FOOT PEDAL
QUICK CLAMP PUNCH HOLDERS
DIE HOLDERS
