USED CHEVALIER FM3VK
Overview

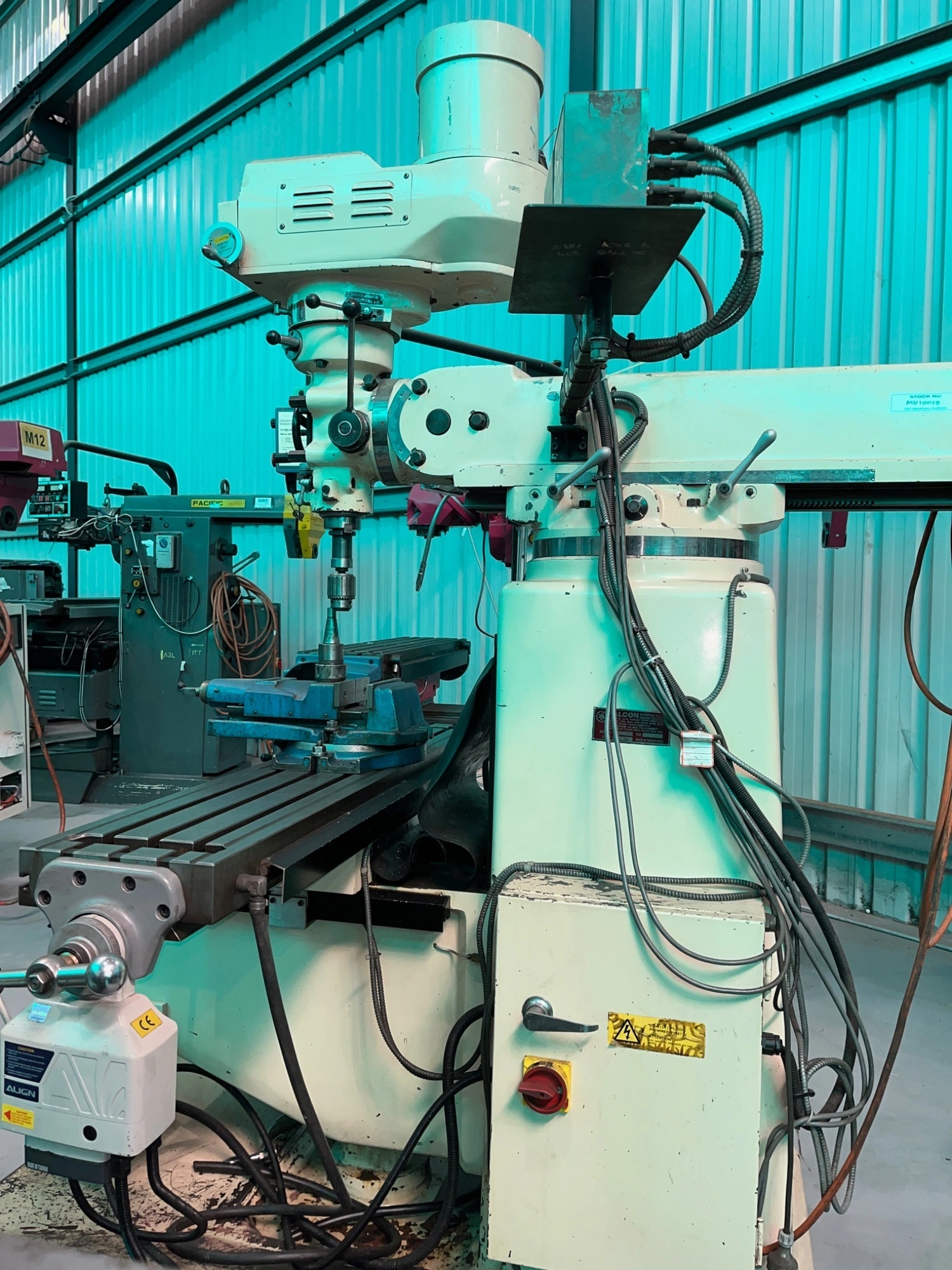

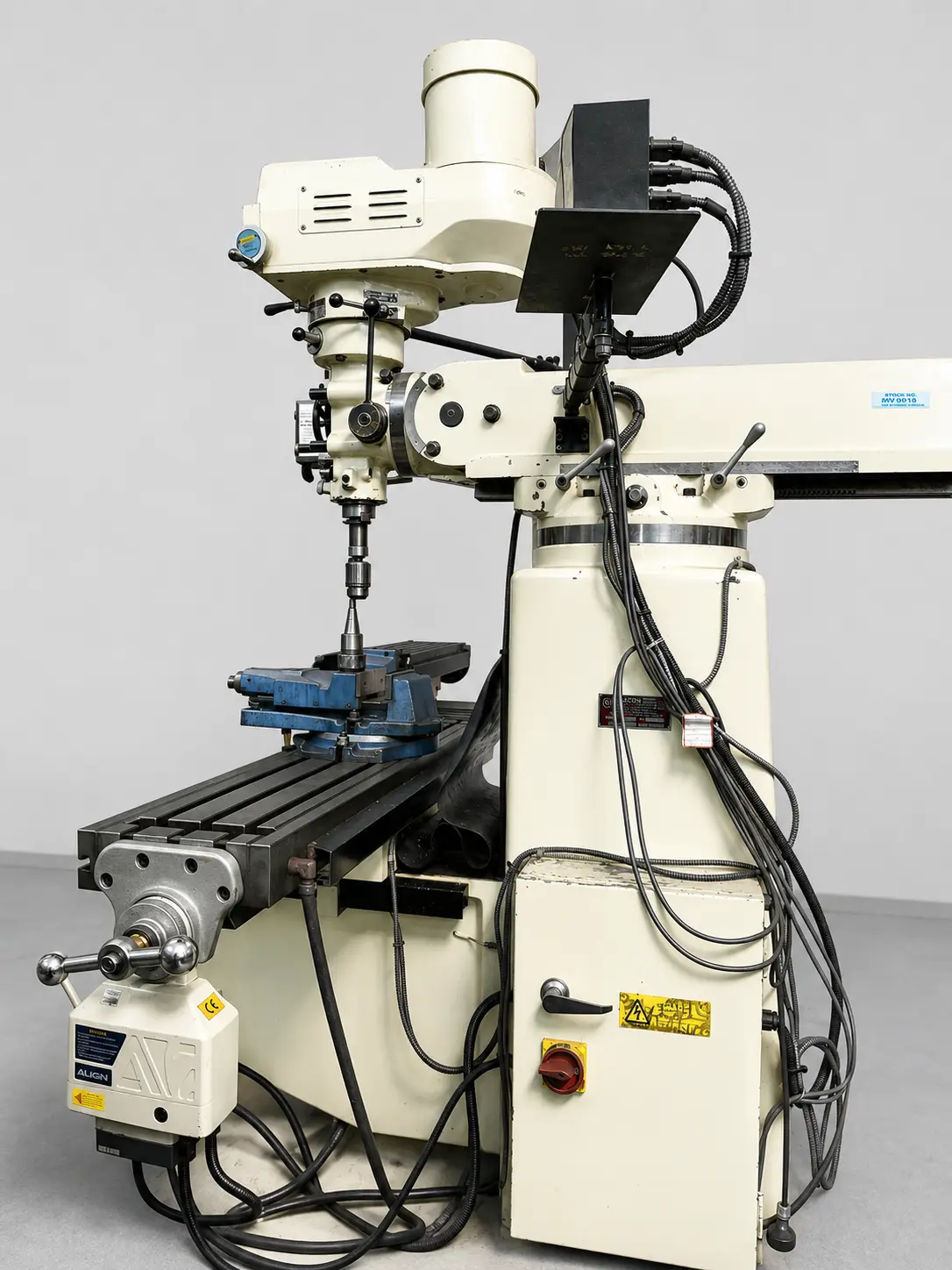

Chevalier FM-3VK Vertical Turret Milling Machine
Quality Taiwanese-built turret milling machine in excellent workshop condition. The Chevalier FM-3VK is a heavy-duty vertical milling machine well suited to toolrooms, maintenance workshops, prototype work and general engineering applications.
Fitted with a 3-axis Digital Readout (DRO), X-axis power feed and coolant system, this machine offers accurate machining together with the versatility expected from the popular Bridgeport-style design.
The machine presents well and has been workshop tested.
Features
Taiwanese manufacture
Variable speed head
R8 spindle taper
3 Axis Digital Readout
X Axis Power Feed
Tilting & Swivelling Head
Fine Feed Quill
Power Downfeed
Coolant System
Machine Vice Included
Work Light
Emergency Stop
Workshop Tested
Ideal for:
Toolrooms
General Engineering
Maintenance Workshops
Prototype Manufacturing
Educational Facilities
Inspection under power is welcomed at our Melbourne showroom.
Specs
Specifications
Item Specification
Manufacturer Chevalier
Model FM-3VK
Machine Type Vertical Turret Milling Machine
Spindle Taper R8
Table Size Approx. 1270 x 254 mm (50" x 10")
X Travel Approx. 760 mm
Y Travel Approx. 380 mm
Knee Travel Approx. 400 mm
Quill Travel 127 mm
Head Tilting & Swivelling
Spindle Speeds Variable Speed
Digital Readout 3 Axis
Power Feed X Axis
Coolant Yes
Vice Included
Electrical 415 Volt, 3 Phase
Approximate Dimensions
Length: 1.8 m
Width: 1.8 m
Height: 2.2 m
Weight: Approx. 1,350 kg
