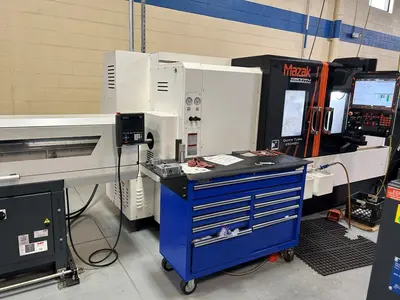

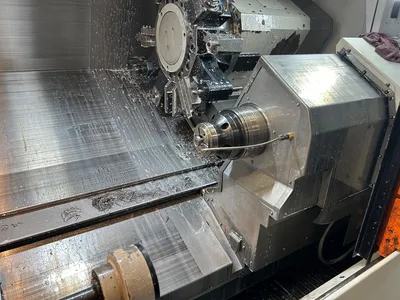

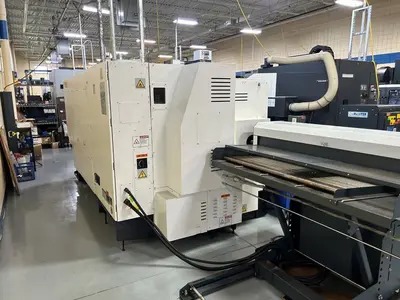

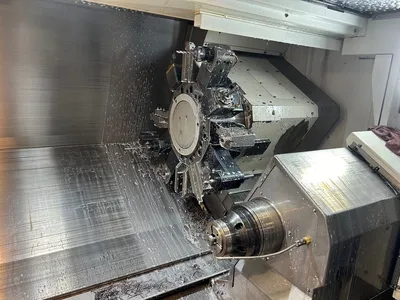

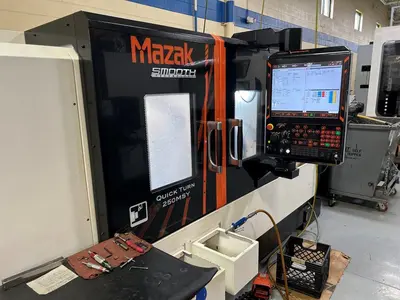

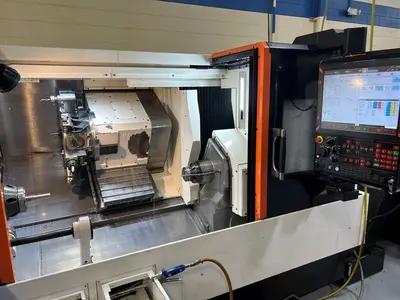

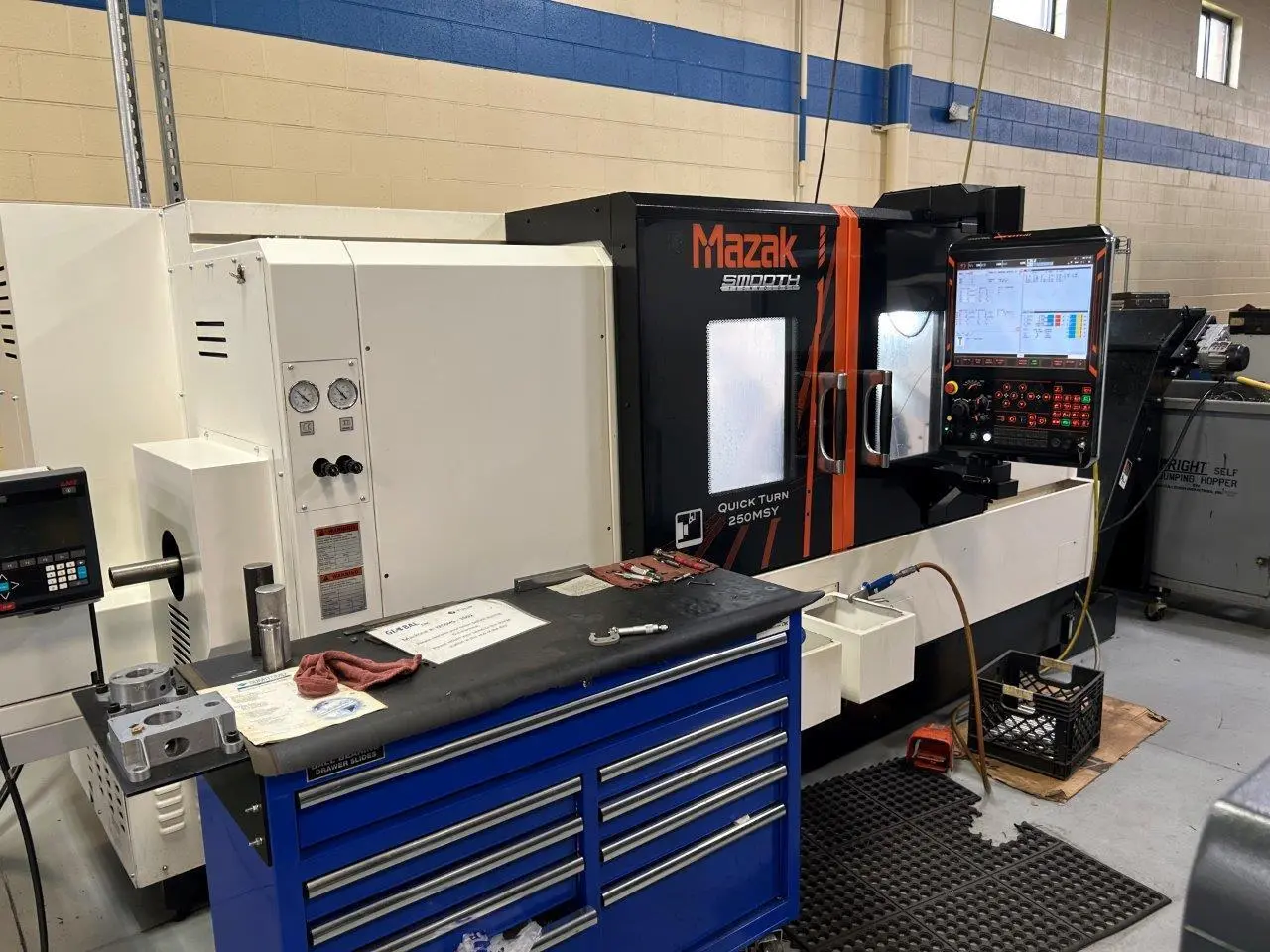

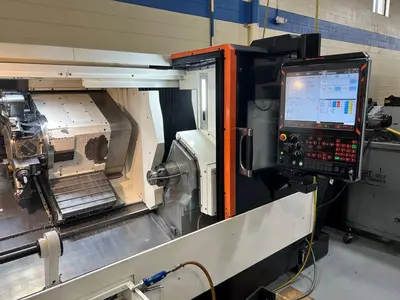

USED 2022 MAZAK QUICK TURN 250MSY
Overview
Description
The MAZAK QUICK TURN 250MSY is a highly versatile CNC lathe known for its multitasking capabilities, featuring both turning and milling operations, along with Y-axis and second spindle functionality. This machine is designed for efficient and accurate machining of complex parts with a single setup.
Specifications
| # Axis | 7 | 7 |
|---|---|---|
| Swing | 26.5" | 673.1 mm |
| Machining Length | 36.38" | 924.05 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14.75" | 374.65 mm |
| Tailstock | No | No |
| Control | CNC (MAZAK SMOOTH) | CNC (MAZAK SMOOTH) |
| Dimensions | 12000 LBS | 12000 LBS |
| Weight | 14,500# | 14,500# |
Specifications:
Maximum Swing: 26.5"
Max Turning Diameter: 14.75"
Main Spindle Bore/Max Bar Capacity: 3.5"/ 3.0"
Maximum Cutting Length: 36.38"
X-Axis Travel (X1, X2, X3): 9"
Z-Axis Travel (Z1, Z2, Z3): 22.75"
Y-Axis Travel (Y1, Y2, Y3): 4" (+/- 2")
C-Axis Indexing (1, 2): .0001, .0001 Degree
W-Axis Travel Sub Spindle: 23"
Main Spindle Bore Diameter: 3.5"
Main Spindle Maximum Bar Work: 3"
Main Spindle Speed: 4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS): 35
Sub Spindle/2nd Spindle Speed: 6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 10
Turret Tool Positions 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 4500
Turret Rotary Tool Horse Power 1, 2: 7.0
Rapid Traverse, X-Axis: 1181
Rapid Traverse, Y-Axis: 826
Rapid Traverse, Z-Axis: 1299
Weight: 12,000 LBS
Equipped With

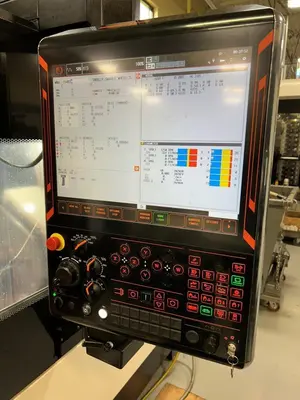

Smooth Control

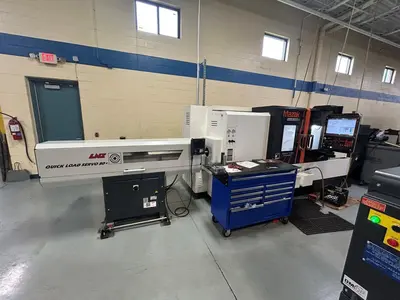

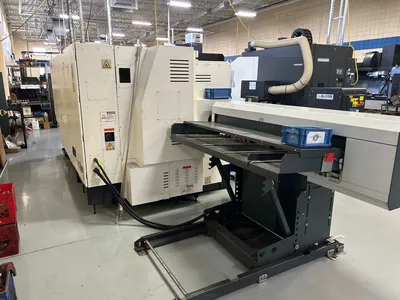

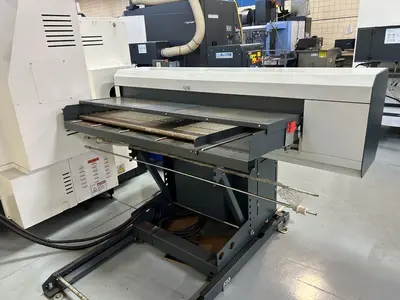

LNS QLS Bar Feeder

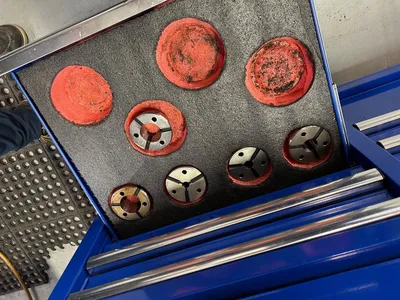

Collet Chucks

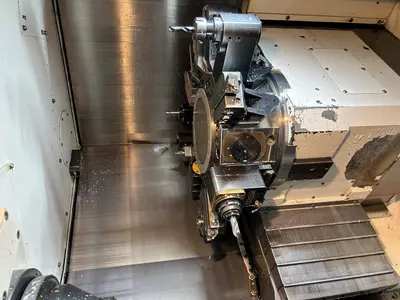

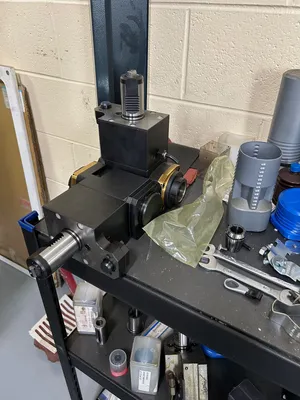

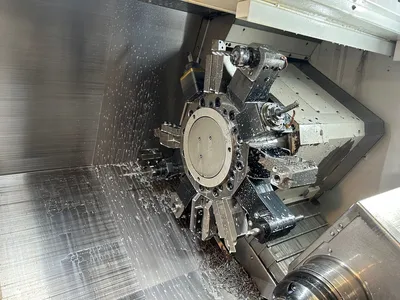

Live Tools
Y-Axis
Hobbing

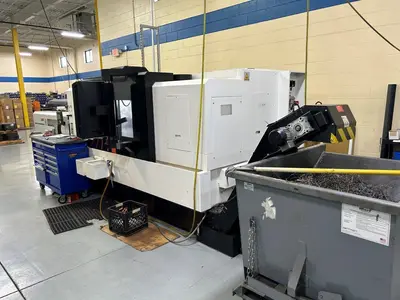

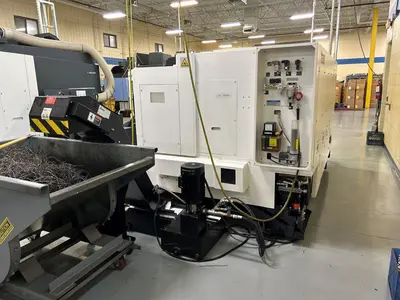

Chip Conveyor
Coolant System
